PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber
PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber-MNHO-113
PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber-MNHO-113
PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber-MNHO-113

PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber

In Stock       1 Year Warranty       UK Free Shipping

PRODUCT CODE: MNHO-113

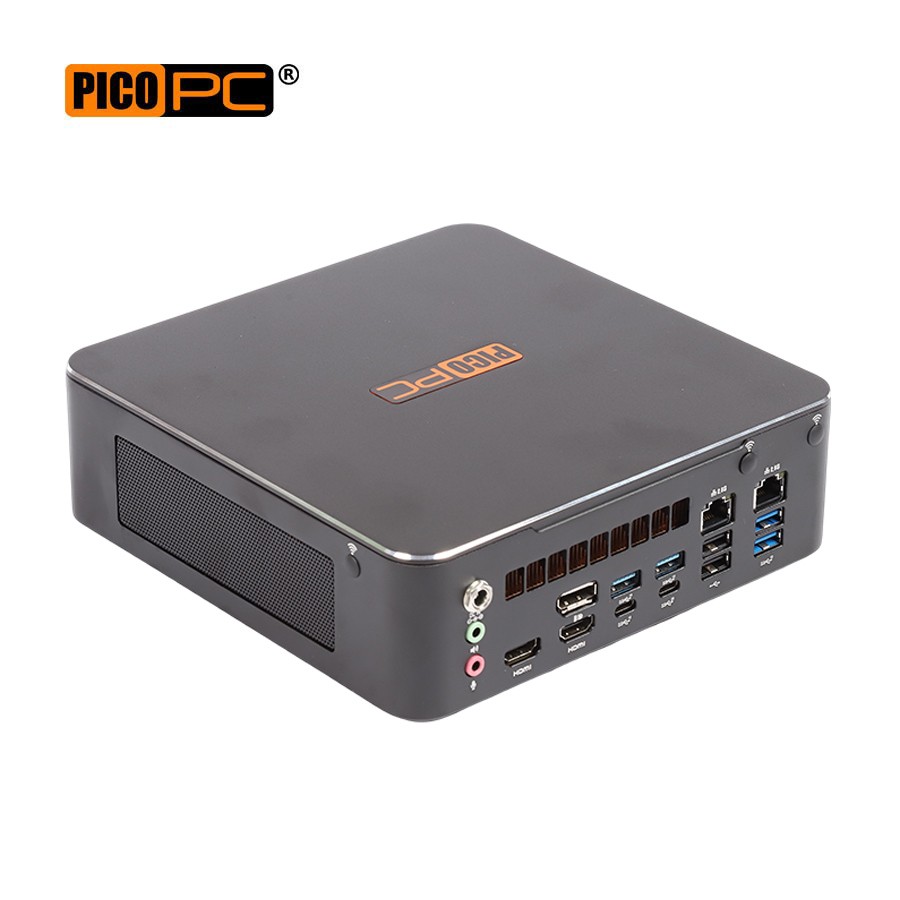

PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber - MNHO-113 | Image
PICO PC® mini firewall router powered by the latest 11th Gen. Intel® Pentium® Silver quad-core N6005 Processor with Intel® AES-NI for secure and fast data encryption and decryption. A complete network hub as a VPN, suitable for building firewall/router/security gateway, and network-based applications in client/server environments.

This networking appliance is a key for achieving seamless and powerful network connectivity proving its versatility across various situations and standing as a reliable ally with cutting-edge ports, including three Intel® I225-V 2.5Gigabit RJ45 Ethernet ports, and dual Intel® 82599ES 10 Gigabit SFP + fiber ports for fast networking and communication tasks. Comprehensive connectivity with multiple ports, including dual USB 3.1 Gen2 up to 10Gbps data rate, HDMI HD display port powered by integrated Intel UHD Graphics. Comes with embedded 16GB LPDDR4 memory, 128GB eMMC storage and embedded wireless Wi-Fi 6 (up to 2.4Gbps) connectivity. Support M.2 NVME 2280 hi-speed SSD and TF card provides versatile storage expansions.

Support Windows 10/11, Proxmox Virtual Environment (VE), and various operating systems such as FreeBSD, Ubuntu, VMware, CentOS, and Debian etc. Proficient in managing firewalls (both open-source and commercial options), and gateways; pfSense, & OPNsense etc. This device demonstrates exceptional performance across various applications, such as data centers, corporate offices, LAN/WAN routers, perfect for VPN, DNS/DHCP Server, network bandwidth controllers, network servers, firewalls, and UTM applications to deliver high throughput, reliable operation.

Features:

Mini Firewall/Server, Security Gateway Network Appliance
11th Gen. Intel® Pentium Silver N6005 Quad-Core Processor, up to 3.30 GHz
Three Intel i225-V 2.5Gigabit RJ45 Gigabit Ethernet Ports (Network wake-up/PXE)
Dual Intel® 82599ES 10Gigabit SFP + Fiber Ports
Embedded Intel® AX201 Wi-Fi 6 (up to 2.4 Gbps) and Bluetooth
Embedded 16GB LPDDR4X Memory
Embedded 128GB eMMC 5.1 Storage
Support M.2 NVME 2280 SSD
Support TF Card Storage
HDMI Display (Integrated Intel UHD Graphics)
Dual USB 3.1 Gen2 Ports with 10Gbps
Intel® AES-NI Data Protection
Energy Efficient, Low Power Consumption
Support Windows 10/11 & Linux, and Firewalls etc.
Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server
Perfect for Security Gateway, Server, VPN and Firewalls.

Specifications:

System

Model

PICO PC® MNHO-113

Processor

CPU

Intel® Pentium Silver N6005 Quad Core Processor

Frequency

up to 3.30 GHz

TDP

10W

# of Cores

4

# of Threads

4

Cache

4 MB L3 Cache

Memory

Size

Embedded 16GB LPDDR4X Memory

Storage

eMMC

Embedded 128GB eMMC5.1 Storage

M.2 NVMe

Support 1 x M.2 NVMe 2280 SSD (optional)

TF Card

Support

Wi-Fi / LTE

Wi-Fi

Intel® Wi-Fi 6 AX201 (up to 2.4 Gbps) & Bluetooth

I/O Interfaces

LAN

3 x Intel® I225-V RJ45 Gigabit LAN

Fiber Port

2 x Intel® 82599ES 10 Gigabit SFP+ Fiber Ports

Display

1 x HDMI 2.0

USB

2 x USB 3.1 Gen2 Ports (up to 10Gbps)

DC-In

1 x DC 12V In

Antenna

2 x Antenna Ports

CPU Advanced Technologies

Intel® Speed Shift Technology

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Identity Protection Technology

Yes

Intel® Smart Response Technology

Yes

Intel® AES New Instructions

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Ye

OS

Windows

Support Windows 10/11

Linux

Support Ubuntu 22.04 LTS, Ubuntu Server 22.04 LTS, CentOS 8 stream, Debian 11.3 etc

FreeBSD

Support FreeBSD 12.3 Stable and above

Firewalls/Hypervisors

Support pfSense 2.6.0, Proxmox VE 7.1, OPNsense 22.7, VMware ESXI 7-Custom etc

Others

Cooling

System FAN

Operating Temperature

0°C ~ 40°C

Compliance

CE, FCC & RoHS, UKCA

Size

127.2 x 83 x 40.85mm

Package

1 x Mini Network Appliance

1 x Power Adapter

2 x WiFi Antennas

PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber - MNHO-113 | Image
PICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber - MNHO-113 | ImagePICOPC® Firewall Router Intel N6005 16GB/128GB 3x2.5GbE WiFi6 Dual Intel® 10Gig SFP+ Fiber - MNHO-113 | Image
PICOPC® MNHO-113 Datasheet | Image

This section describes the real-world performance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.


pfSense Hardware Performance

Total Firewall Throughput

Firewall Throughput

9.6 Gbps

IPS Throughput

2.20 Gbps

Number of Users

800-1600



Firewall Sessions

Concurrent Sessions (TCP)

0.82 Million

New Sessions/Second (TCP)

27,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

402 Mbps

IPSec VPN (TCP)  AES-256

355 Mbps

IPSec VPN (UDP)  AES-128

540 Mbps

IPSec VPN (UDP)  AES-256

400 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

880 Mbps

OPEN VPN (UDP) AES-256 Remote Access

600 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

850 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

660 Mbps

Bridge Mode Throughput

L2 (TCP)

8.70 Gbps

L2 (UDP)

8.10 Gbps

NAT Mode Throughput

L3 (TCP)

6.50 Gbps

L3 (UDP)

8.0 Gbps

Routed Mode Throughput

L3 (TCP)

8.50 Gbps

L3 (UDP)

8.53 Gbps


OPNsense Hardware Performance

Total Firewall Throughput

Firewall Throughput

11.7 Gbps

IPS Throughput

2.26 Gbps

Number of Users

800-1600



Firewall Sessions

Concurrent Sessions (TCP)

0.85 Million

New Sessions/Second (TCP)

31,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

700 Mbps

IPSec VPN (TCP)  AES-256

660 Mbps

IPSec VPN (UDP)  AES-128

725 Mbps

IPSec VPN (UDP)  AES-256

580 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

690 Mbps

OPEN VPN (UDP) AES-256 Remote Access

800 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

560 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

750 Mbps

Bridge Mode Throughput

L2 (TCP)

9.40 Gbps

L2 (UDP)

8.60 Gbps

NAT Mode Throughput

L3 (TCP)

9.0 Gbps

L3 (UDP)

7.80 Gbps

Routed Mode Throughput

L3 (TCP)

9.30 Gbps

L3 (UDP)

8.20 Gbps
