Imagine a busy office or a smart factory where the network drops just when you need it most. The M310 5G Gateway Small Cell with LTE LoRaWAN PoE 4GB RAM is a compact device that brings fast 5G and reliable LoRaWAN connectivity to a small area. Many small-scale deployments struggle with weak signal, high latency, and the cost of large base stations. This gateway solves those issues by delivering carrier-grade speed and IoT range in a single, easy-to-install box.
Milesight M310 5G Gateway Small Cell with LTE LoRaWAN PoE 4GB RAM
The main problem is that traditional routers cannot handle the bandwidth and device density of modern applications. When the signal is weak, video streams stall, data uploads fail, and sensors lose contact. This gateway matters to you because every minute of downtime costs money and frustrates users. The M310 provides a clear solution by combining 5G NR, LTE, and LoRaWAN in one box, powered by PoE, so you get high-speed mobile data and long-range low-power IoT without extra hardware.
Benefits
- Fast 5G speeds reduce video buffering and speed up file transfers.
- Built-in LoRaWAN lets hundreds of sensors talk over long distances.
- PoE power means only one cable for data and electricity.
- Quad-core CPU and 4 GB RAM handle multiple connections without lag.
- Compact size fits on a wall or ceiling, saving space.
Usages
You can install the M310 in a retail store to give shoppers reliable Wi-Fi while tracking inventory with LoRa sensors. In a manufacturing plant it provides a private 5G slice for robots and connects temperature probes through LoRaWAN. Small campuses use it to extend mobile coverage to outdoor areas and to run campus-wide IoT projects such as smart lighting. It also works in temporary events like concerts, where fast data and quick sensor deployment are essential.
Key Features
- Quad-core Cortex-A72 processor for high performance.
- 4 GB LPDDR4 RAM for smooth multitasking.
- 32 GB eMMC storage for local data caching.
- 5G NR band n48 (3550-3700 MHz) with 2 24 dBm output.
- LTE band B48 with 2 24 dBm output and 22 MIMO.
- LoRaWAN US915 (902-928 MHz) with 27 dBm TX power.

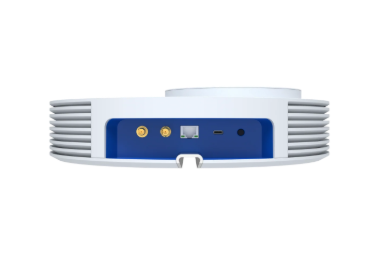

- 2.5 G Ethernet port for high-speed wired backhaul.
- 802.3bt PoE power supply, max 30 W consumption.
- Type-C USB 3.0 for local management.
- Internal dual-port omni antenna, 5 1 dBi gain, switchable to external.
- GPS sync (internal or external) for precise timing.
- Operating temperature -10 C to 50 C, humidity 5-95 % RH.
Specifications
| General |
Model |
M310 |
| |
Dimension |
300 mm x 311.5 mm x 79 mm |
| |
Weight |
4.2 kg |
| |
Ingress Protection |
IP30 |
| |
Enclosure Material |
Plastics |
| System |
Computing (CPU) |
Quad core Cortex-A72 (ARM v8) |
| |
RAM |
4GB LPDDR4 |
| |
Storage (eMMC) |
32GB |
| |
Bluetooth |
5.0, BLE |
| Network |
LTE / 5G NR |
B48 / n48 (3550 to 3700 MHz) |
| |
LoRaWAN® |
US915 (902 to 928 MHz) |
| |
Converged Core |
4G/5G Supported |
| Hardware |
Ethernet |
2.5G |
| |
Power Supply |
PoE (802.3bt) |
| |
Power Consumption |
30W (MAX) |
| |
USB |
Type-C USB3.0 |
| |
LED / Button |
Tricolor LED / One pairing button |
| LTE Details |
Modulation / MIMO |
TDD / 2x2 MIMO |
| |
Channel Bandwidth |
5 / 10 / 15 / 20 MHz |
| |
Max Tx Power |
2 x 24 dBm/port |
| |
Receiver Sensitivity |
-100 dBm |
| |
Antenna Gain |
5 ± 1 dBi (Built-in 2-port Omni) |
| 5G NR Details |
Channel Bandwidth |
5 / 10 / 15 / 20 / 40 MHz |
| |
Max Tx Power |
2 x 24 dBm/port |
| |
Antenna Gain |
5 ± 1 dBi (Built-in 2-port Omni) |
| LoRa® Details |
Channel Bandwidth |
125 / 500 KHz |
| |
Max Tx Power |
27 dBm |
| |
Receiver Sensitivity |
-139 dBm (SF12) |
| |
Antenna |
Internal (Supports switch to external) |
| Environment |
Operating Temp |
-10°C to 50°C |
| |
Humidity |
5% to 95% RH |
| |
Synchronization |
GPS (Internal/External switchable) |
