This system offers robust performance with an efficient Core i7-1255U processor with a low power consumption of 15W base power, it balances energy efficiency and performance, making it suitable for various computing needs. The system is equipped with 1x DDR4 3200 MHz SO-DIMM, supporting up to 32GB of memory, ensuring smooth multitasking and responsiveness, even with demanding applications.

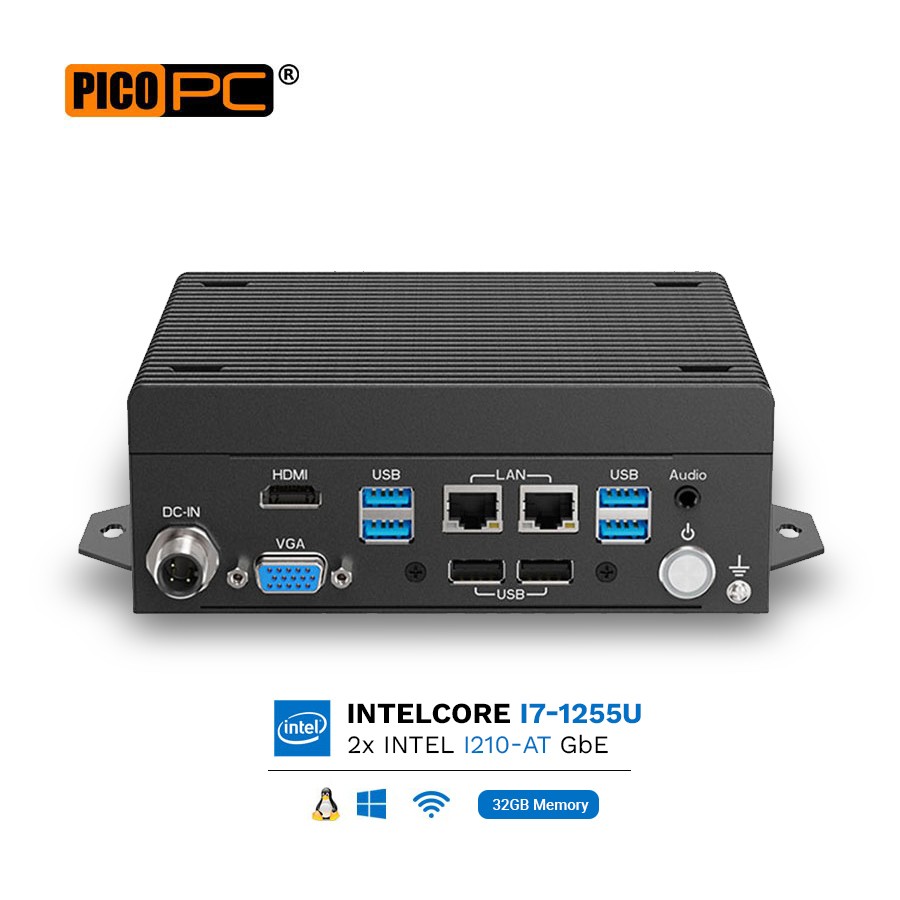

For storage, the system includes an M.2 2280 NVME slot, providing high-speed data transfer and sufficient space for critical files and applications. The I/O ports are designed for versatility, with 2x USB 2.0, 4x USB 3.0 ports, six COM ports for serial communication, dual Gigabit Ethernet ports for fast network connectivity, and HDMI and VGA outputs for display options. Additionally, it features expansion capabilities with Mini PCIe and M.2 slots, allowing optional upgrades like Wi-Fi, cellular, Bluetooth, and GNSS modules.
This system is ideal for applications in industrial automation, embedded systems, and edge computing, where reliable performance, connectivity, and expandability are crucial. Its wide operating temperature range, durable aluminum alloy construction, making it suitable for both indoor and outdoor deployments. Whether used in a factory floor setting or as part of a smart transportation system, this system offers the flexibility and reliability needed for mission-critical tasks.
Feature:
Powered by Core™ i7-1255U 10 Core processor & up to 32GB memory supported
Equipped with rich I/O ports for high-end performance
Offers versatile storage capacity with 1x M.2 2280 NVME
Offers great flexibility and effortless Mini PCIe expansion capabilities with 1x Full-length Mini PCIe
Designed with enhanced structural durability, making it an excellent choice for industrial applications
Works at 9-36VDC power input for smooth performance
Specifications:
Model Number | MNHO-103 |
CPU | Core™ i7-1255U |
# of Cores | 10 |
Boost Frequency | 4.70 GHz |
CPU TDP | 15 W |
Memory | DDR4 3200 MHz up to 32GB |
Memory Slot | 1x SODIMM |
Storage | 1x M.2 2280 NVME |
BIOS | AMI UEFI |
Watchdog Timer | Software programmable. Supports 256 levels system reset |
USB | 2x USB 2.0 |
4x USB 3.0 |
Serial | 6x COM (RS-232/485), CAN bus (Optional) |
Ethernet | 2x RJ45 GbE Intel® I210AT |
Display | 1x HDMI |
1x VGA |
SIM Card Slot | 1x SIM card slot(Inside) |
Antenna | 2x SMA antenna holes |
Mini PCIe | 1x Full length Mini PCIe |
M.2 | 1x M.2 2280 NVME |
Wi-Fi | Mini PCIe expansion (optional) |
Cellular | Mini PCIe expansion (optional) |
Bluetooth | Mini PCIe expansion (optional) |
GNSS | Mini PCIe expansion (optional) |
Audio | Mic in, line out |
Power Button | Yes |
DC Input | 9-36VDC |
Power Mode | AT/ATX |
Windows | Windows 10/11 |
Linux | Ubuntu |
Dimensions (W x D x H) | (160 x 135.4 x 60)mm |
Weight (N.W.) | 2 kg (4.41 lbs) |
Mounting | Wall mount |
Material | Aluminum alloy |
Operating Temperature | -10 to 60℃ (14 to 140°F) |
Storage Temperature | -20 to 60℃ (-4 to 140°F) |
Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
Compliance | CE, FCC Class A, RoHS, UKCA |
