Intel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server
Intel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server-NSHO-002
Intel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server-NSHO-002

Intel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server

In Stock       1 Year Warranty       UK Free Shipping

PRODUCT CODE: NSHO-002

PICO PC 1U rackmount network server firewall appliance equipped with dual core Intel® 5205U processor features excellent security protection with Intel® AES-NI for secure and fast data encryption and decryption and Intel® SGX to create hardware enforced trusted execution protection for applications’ sensitive routines and data.

A perfect multi-purpose embedded appliance; a competent level of performance, wireless support and throughput to address growing concerns over network security and deters security threats to protect network communication in (SOHO) small and home offices. Can fulfill network communication needs of small & medium businesses, branch offices and SOHO networks; while enabling the implementation of security measures to protect intellectual property assets, business reputation and sensitive data with reliability and versatility.

Equipped with six Intel i211-AT Gigabit RJ45 Ethernet ports (supports network wake-up/PXE) and cisco standards RJ45 console port to take on a number of networking and communication tasks.. You can add multiple LAN's or multiple WLAN's to your network, each segmented for maximum security and configurability.

Support wireless networks 802.11 b/g/n Wi-Fi (up to 2.4Gbps) and 4G/5G WWAN using 4G/5G-enabled SIM card and WWAN module. It supports up to 64GB of SODIMM DDR4 non-ECC memory and two storage drives including mSATA SSD and 2.5" SATA SSD/HDD. I/O options include two USB 2.0 ports, a console port and VGA display port features Intel® UHD Graphics 610.

Suitable and best for routing, VPN, DNS/DHCP server, cyber security, network bandwidth controller/management, unified threat management, endpoint protection, data integrity, network security, network management, multi-LAN/WAN, perimeter firewall, SD-WAN, virtualization, intrusion prevention/detection system, load balancing etc.

Support different firewalls and UTM applications to deliver a high throughput. Reliable operation, high performance and support wide array of network applications, firewall and gateways like, pfSense, Sophos, Untangle, Linux, Unix and Windows etc.


Features:
Security Gateway 1U Rackmount Network Server
Intel® Celeron® 5205U processor
Dual-core, 2 MB Intel® Smart Cache, 1.90 GHz
Intel® SGX & Intel® AES-NI data protection
6x Intel® i211-AT Gigabit Ethernet (Support wake on LAN/PXE)
RJ45 Console (CISCO Standard)
VGA HD Display and Dual USB2.0 ports
Support 802.11 b/g/n Wi-Fi (up to 2.4Gbps)
Support 4G/5G WWAN Networks
Support up to 64GB SODIMM DDR4 (2x32GB) non-ECC Memory
Support Two Storage Drives (mSATA & 2.5" SATA SSD/HDD)
Support Windows/Windows Server/Linux/Unix etc.
Can be configured as a firewall, LAN/WAN router, VPN, DNS/DHCP server etc.
Perfect for Security Gateway and Firewalls such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall etc.

Specifications:

System

Model

PICO PC NSHO-002

P/N

NO027G05U1UND6L

Processor

CPU

Intel® Celeron® 5205U

Frequency

1.90 GHz

TDP

15W

# of Cores

2

# of Threads

2

Cache

2 MB

Memory

Size

Support up to 64GB (2x32GB) (optional)

Type

SODIMM DDR4 (non-ECC)

Slot

2

Storage

mSATA

Support 1 x mSATA SSD (optional)

2.5" SATA

Support 1 x 2.5" SATA SSD/HDD (optional)

Graphics

Port

VGA Display

Features

Intel® UHD Graphics

Expansion Slots

mSATA

1 x mSATA (For mSATA SSD)

Mini PCIE/M.2

1 x Mini PCIE (For WiFi/4G Module)

1 x M.2 3042/3052 (For 5G Module)

CPU Advanced Technologies

Intel® Speed Shift Technology

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Flex Memory Access

Yes

Intel® Identity Protection Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® Software Guard Extensions (Intel® SGX)

Yes

I/O Interfaces

LAN

6 x Intel i211-AT Gigabit LAN (Support Network Wake-up/PXE)

COM

1 x RJ45 Console (CISCO Standard)

Display

1 x VGA

USB

2 x USB 2.0

AC-In

AC 100-240V In (C13 Socket)

Switch

1 x Power Switch

1 x Reset Switch

LED Indicator

1 x HDD LED

1 x Power LED

OS

Windows

Support Windows 7/8/10 & Windows Server

Linux

Support

Unix

Support

Power and
Working Environment

Power Input

AC 100-240V 50/60Hz

Type

Internal PSU

Operating Temperature

-10C ~ 55C

Storage Temperature

-20C ~ 65C

Relative Humidity

5% - 95% (relative humidity; non-condensing)

Vibration

0.5g rms/5-500HZ/random/operating

Compliance

Approvals

CE

Others

BIOS

AMI 64MB Flash ROM

Cooling

Processor & System FAN

Watchdog

Support Hardware Reset Function (L256, 0~255 seconds)

Size

430mm x 280mm x 45mm

Package

1 x Network Server, 1 x Power Cord

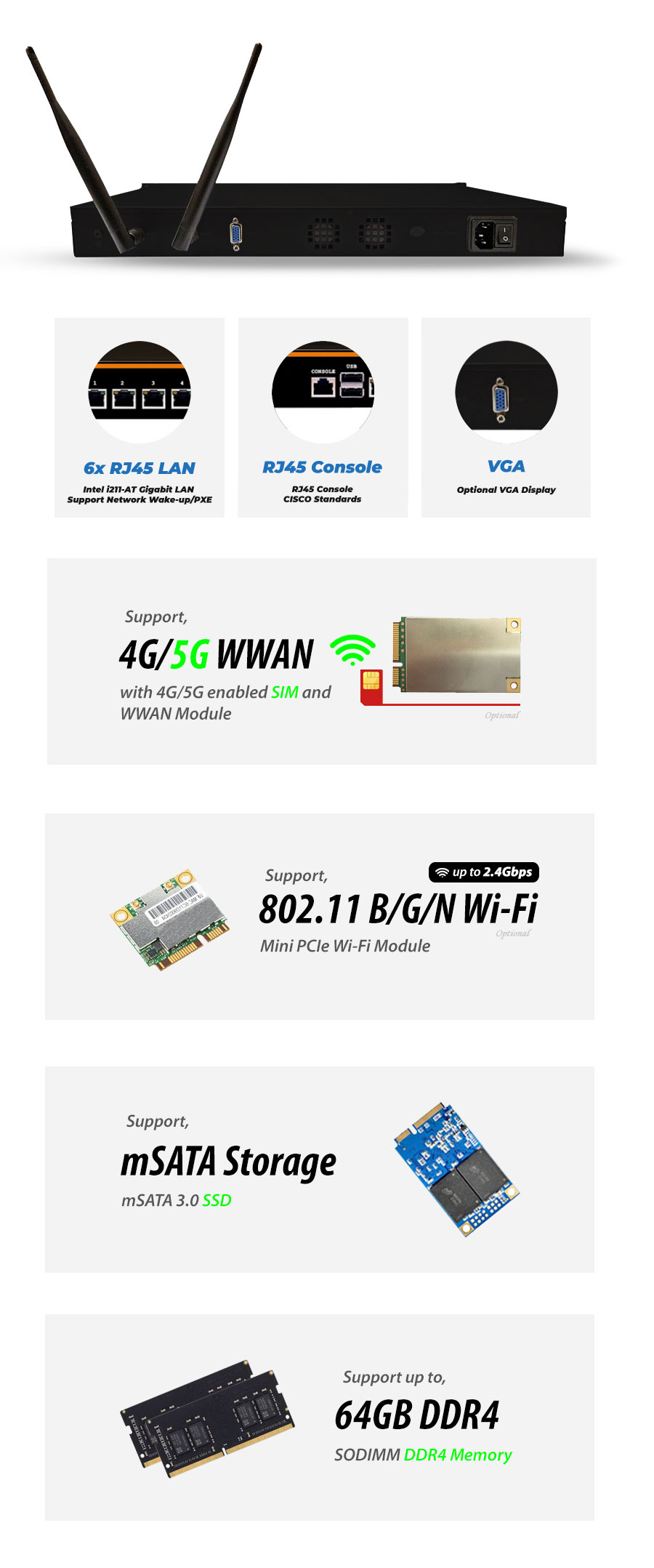

Intel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server - NSHO-002 | ImageIntel® 5205U 6 LAN 1 COM 4G/5G Firewall 1U Rackmount Server - NSHO-002 | Image
Download NSHO-002 Datasheet

This section describes the real-world performance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.


pfSense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.81 Gbps

IPS Throughput

2.0 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.5 Million

New Sessions/Second (TCP)

60,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

400 Mbps

IPSec VPN (TCP)  AES-256

355 Mbps

IPSec VPN (UDP)  AES-128

452 Mbps

IPSec VPN (UDP)  AES-256

445 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

850 Mbps

OPEN VPN (UDP) AES-256 Remote Access

890 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

700 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

760 Mbps

Bridge Mode Throughput

L2 (TCP)

965 Mbps

L2 (UDP)

960 Mbps

NAT Mode Throughput

L3 (TCP)

960 Mbps

L3 (UDP)

958 Mbps

Routed Mode Throughput

L3 (TCP)

954 Mbps

L3 (UDP)

955 Mbps


Untangle Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

IPS Throughput

2.16 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.2 Million

New Sessions/Second (TCP)

40,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

525 Mbps

IPSec VPN (TCP)  AES-256

490 Mbps

IPSec VPN (UDP)  AES-128

480 Mbps

IPSec VPN (UDP)  AES-256

465 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

500 Mbps

OPEN VPN (UDP) AES-256 Remote Access

740 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

465 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

600 Mbps

Bridge Mode Throughput

L2 (TCP)

960 Mbps

L2 (UDP)

958 Mbps

NAT Mode Throughput

L3 (TCP)

955 Mbps

L3 (UDP)

954 Mbps

Routed Mode Throughput

L3 (TCP)

956 Mbps

L3 (UDP)

958 Mbps


Sophos Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

IPS Throughput

1.72 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.5 Million

New Sessions/Second (TCP)

60,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

560 Mbps

IPSec VPN (TCP)  AES-256

500 Mbps

IPSec VPN (UDP)  AES-128

628 Mbps

IPSec VPN (UDP)  AES-256

610 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

172 Mbps

OPEN VPN (UDP) AES-256 Remote Access

200 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

90 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

115 Mbps

Bridge Mode Throughput

L2 (TCP)

958 Mbps

L2 (UDP)

960 Mbps

NAT Mode Throughput

L3 (TCP)

955 Mbps

L3 (UDP)

958 Mbps

Routed Mode Throughput

L3 (TCP)

952 Mbps

L3 (UDP)

956 Mbps


Endian Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.70 Gbps

IPS Throughput

1.92 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.2 Million

New Sessions/Second (TCP)

45,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

500 Mbps

IPSec VPN (TCP)  AES-256

590 Mbps

IPSec VPN (UDP)  AES-128

645 Mbps

IPSec VPN (UDP)  AES-256

620 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

550 Mbps

OPEN VPN (UDP) AES-256 Remote Access

760 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

310 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

365 Mbps

Bridge Mode Throughput

L2 (TCP)

957 Mbps

L2 (UDP)

960 Mbps

NAT Mode Throughput

L3 (TCP)

954 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

951 Mbps

L3 (UDP)

955 Mbps


Kerio Control Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.64 Gbps

IPS Throughput

1.6 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

200 K

New Sessions/Second (TCP)

46,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

225 Mbps

IPSec VPN (TCP)  AES-256

200 Mbps

IPSec VPN (UDP)  AES-128

450 Mbps

IPSec VPN (UDP)  AES-256

400 Mbps

IPSec VPN Server Throughput

IPSec VPN (TCP) AES-128 Remote Access

180 Mbps

IPSec VPN (UDP) AES-128 Remote Access

210 Mbps

IPSec VPN  (TCP) AES-128 end-to-end

90 Mbps

IPSec VPN  (UDP) AES-128 end-to-end

105 Mbps

KERIO VPN Throughput

Kerio VPN (TCP) AES-256 Remote Access

700 Mbps

Kerio VPN (UDP) AES-256 Remote Access

745 Mbps

Kerio VPN  (TCP) AES-256 end-to-end

410 Mbps

Kerio VPN  (UDP) AES-256 end-to-end

465 Mbps

VLAN Mode Throughput

L3 (TCP)

952 Mbps

L3 (UDP)

958 Mbps

NAT Mode Throughput

L3 (TCP)

950 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

959 Mbps

L3 (UDP)

960 Mbps


OPNsense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

IPS Throughput

1.12 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.5 Million

New Sessions/Second (TCP)

80,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

350 Mbps

IPSec VPN (TCP)  AES-256

310 Mbps

IPSec VPN (UDP)  AES-128

408 Mbps

IPSec VPN (UDP)  AES-256

340 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

458 Mbps

OPEN VPN (UDP) AES-256 Remote Access

640 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

430 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

512 Mbps

Bridge Mode Throughput

L2 (TCP)

965 Mbps

L2 (UDP)

961 Mbps

NAT Mode Throughput

L3 (TCP)

956 Mbps

L3 (UDP)

958 Mbps

Routed Mode Throughput

L3 (TCP)

956 Mbps

L3 (UDP)

957 Mbps
