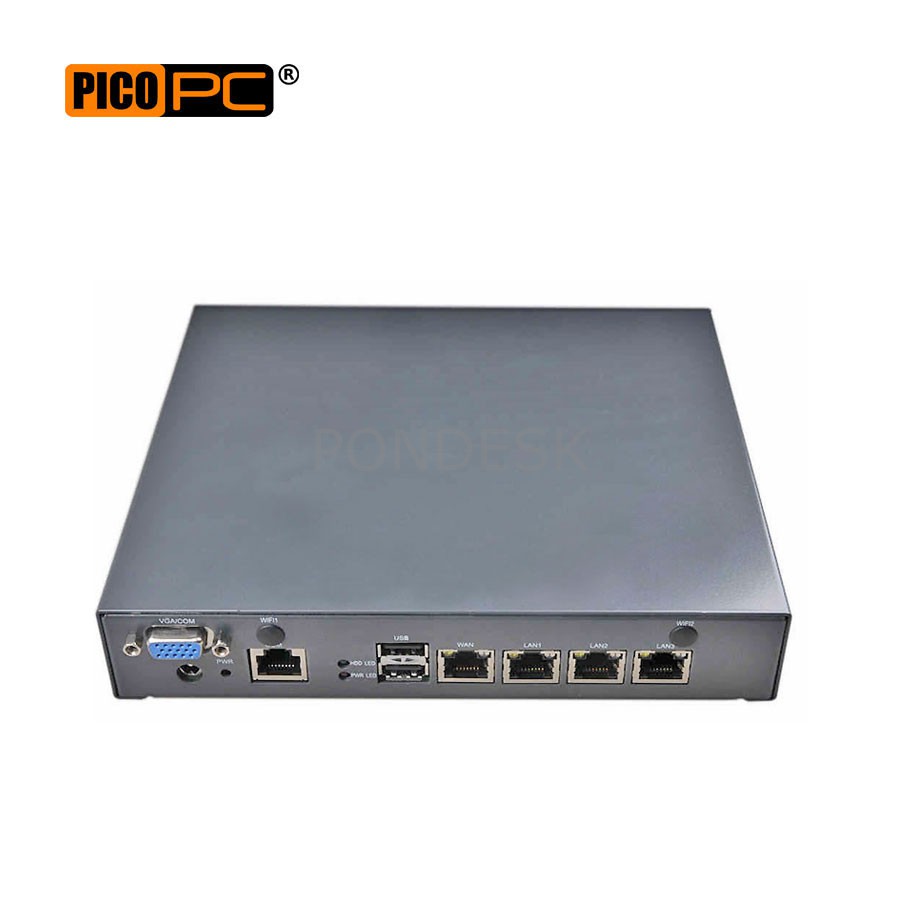

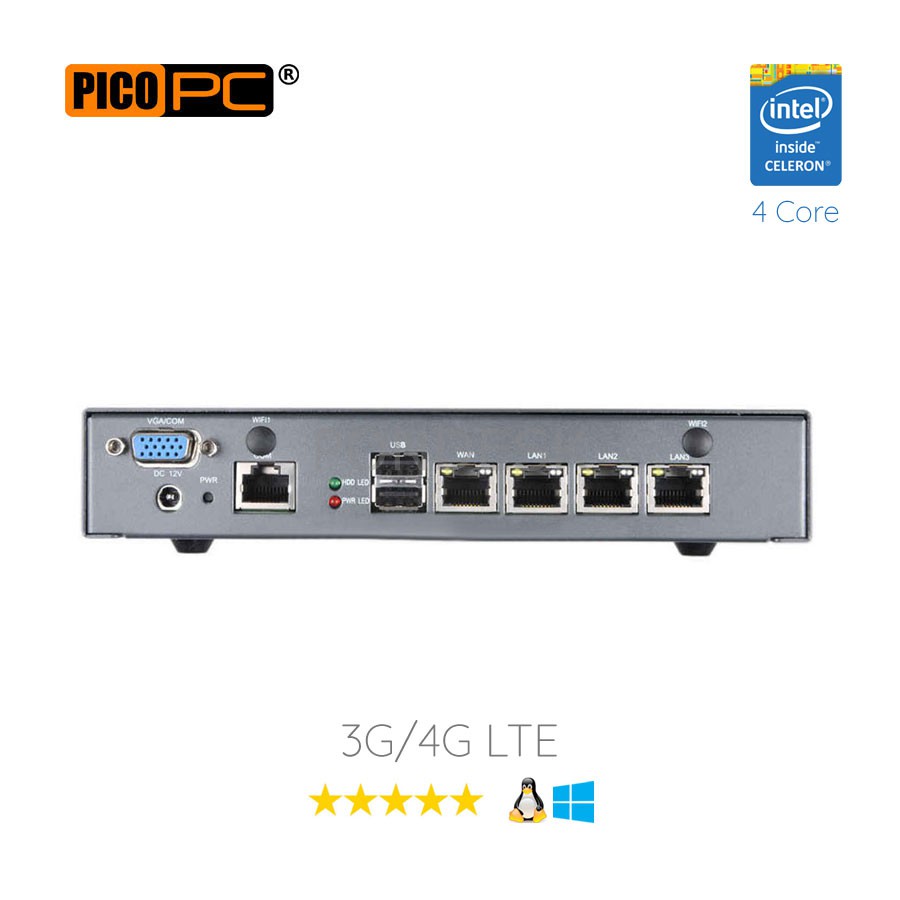

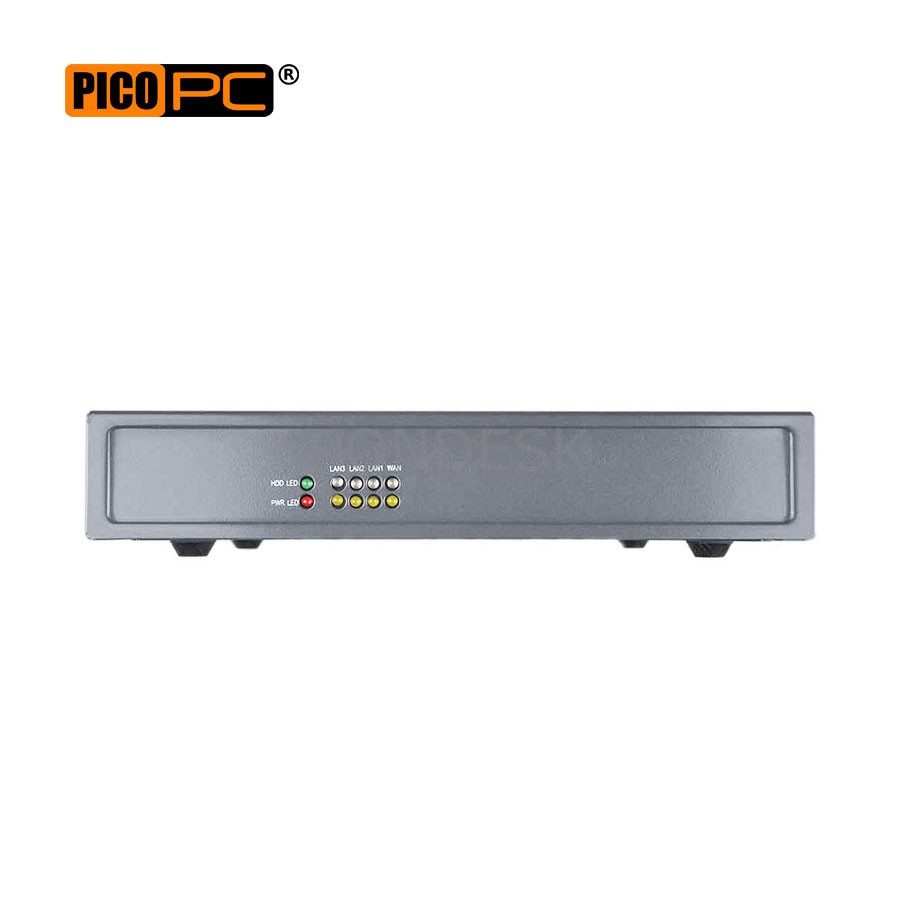

The PONDESK mini server equipped with Intel® Celeron® J1900 quad core processor up to 2.42GHz. Small network appliance with 4x Intel® 82574L gigabit Ethernet for high bandwidth and fast communications. A complete network hub as a VPN, equipped with RJ45-DB9 COM (Cisco Standard) and to take on a number of networking and communication tasks and can be used as a security gateway to act as a virtual private network and firewall. Support network wake-up/PXE function, watchdog hardware reset function (L256, 0~255 seconds).
The mini server support up to 8GB SODIMM DDR3L memory and dual storage drives including one mSATA SSD and one 2.5" SATA SSD/HDD storage. Supports wireless networks 802.11 b/g/n Wi-Fi and 3G/4G LTE WWAN via mini PCIe express slot (support one network WiFi/4G at a time). I/O options include two USB 2.0 ports and VGA display port features Intel® HD Graphics. Reliable universal performance and 10W (idle) low power consumption helps user getting much better computing experience.
Suitable for VPN, DNS Server, DHCP Server, network bandwidth controller, firewall and UTM applications to deliver a high throughput, reliable operation, high performance and wide array of network applications, network servers, Linux, Unix, Windows, firewall (either open-source or commercial) and gateways; MikrotiK, pfSense, Sophos, Untangle, Ubuntu, ClearOS, FreeBSD, Monowall, Debian, Endian, Smothwall UTM, OpenBSD, Zeroshell, Zentyal, OpenWRT, Kerio Control and VyOS etc.
You can add multiple LAN's or multiple WLAN's to your network, each segmented for maximum security and configurability. It combines a robust industrial-grade performance and the advantages of network security management, can be widely used in virtual private networks, traffic control, network firewalls or other network applications.
Features:
Small Security Gateway, Firewall Router, Mini Server
Intel® Celeron® J1900 Quad Core Processor
4 Threads, 2M Cache, up to 2.42 GHz
Four Intel 82574L Gigabit Ethernet
Support Network wake-up/PXE
RJ45-DB9 COM (Cisco Standard)
Support WiFi, 3G/4G WWAN Networks (optional)
Watchdog (L256, 0~255 seconds)
Support up to 8GB DDR3L Memory
Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)
VGA Display, USB 2.0
Intel® HD Graphics
Energy Efficient 10W (idle) Low Power Consumption
Ready for IoT - Simply Connected Using 3G/4G LTE via Mini PCIe
Support Windows/Linux/Unix/MikroTik/Firewalls etc.
Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server
Perfect for Security Gateway, Server, VPN and Firewall such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall etc.
Specifications:
|
System
|
Brand
|
PICO PC
|
|
Model
|
MNHO-068
|
|
Processor
|
CPU
|
Intel® Celeron® J1900
|
|
Processor Base Frequency
|
2.0 GHz
|
|
Burst Frequency
|
2.42 GHz
|
|
TDP
|
10W
|
|
Instruction Set
|
64 bit
|
|
# of Cores
|
4
|
|
# of Threads
|
4
|
|
Cache
|
2 MB L2
|
|
Memory
|
Size
|
Support up to 8GB (optional)
|
|
Type
|
SODIMM DDR3L 1.35V Low Voltage Memory
|
|
Channels
|
1
|
|
Storage
|
mSATA
|
Support 1 x mSATA SSD (optional)
|
|
2.5" SATA
|
Support 1 x 2.5" SATA SSD/HDD (optional)
|
|
Graphics
|
Processor Graphics
|
Intel HD Graphics
|
|
Graphics Base Frequency
|
688 MHz
|
|
Graphics Max Dynamic Frequency
|
854 GHz
|
|
Intel® Quick Sync Video
|
Yes
|
|
Advanced Technologies
|
Intel® Virtualization Technology (VT-x)
|
Yes
|
|
Intel® 64
|
Yes
|
|
Enhanced Intel SpeedStep® Technology
|
Yes
|
|
I/O
|
Display
|
1 x VGA
|
|
USB
|
2 x USB 2.0
|
|
LAN
|
4 x Intel 82574L Gigabit Ethernet
|
|
Supports Wake on LAN/PXE
|
|
COM
|
1 x RJ45-DB9 COM (Cisco Standard)
|
|
WiFi
|
802.11 b/g/n 150mbps (optional)
|
|
3G/4G
|
Optional
|
|
Power Adapter
|
Input
|
AC 100-240V ~ 50-60Hz
|
|
Output
|
DC 12V 5A
|
|
Safety & EMC
|
UL, CE, FCC, RoHS
|
|
EMC EN55022 CLASS B
|
|
IEC 60950-1
|
|
Energy saving standards
|
Energy Star Ver. 2.0
|
|
DOE Level VI
|
|
ErP CoC Version 5 Tier 2
|
|
OS
|
Windows
|
Support Windows 7, 8, 10 etc. (not included)
|
|
Linux
|
Support
|
|
Firewalls
|
Support pfSense, Untangle, Debian, Sophos etc. (not included)
|
|
Compliance
|
Approvals
|
CE
|
|
Regulatory
|
IEC 60950, EMC Emission EN 55032, EN 61000, EN 55024
|
|
Others
|
BIOS
|
BIOS AMI 64Mb Flash ROM
|
|
Watchdog
|
Support Hardware Reset Function (L256, 0~255 seconds)
|
|
System Input
|
DC 12V
|
|
Cooling
|
Two System FAN
|
|
Operating Temperature
|
-10°C ~ 55°C
|
|
Storage Temperature
|
-20°C ~ 70°C
|
|
Humidity
|
5% - 95% Non-Condensing
|
|
Vibration
|
0.5g rms/5-500HZ/random/operating
|
|
Size
|
197 x 174 x 35 mm
|
|
Package
|

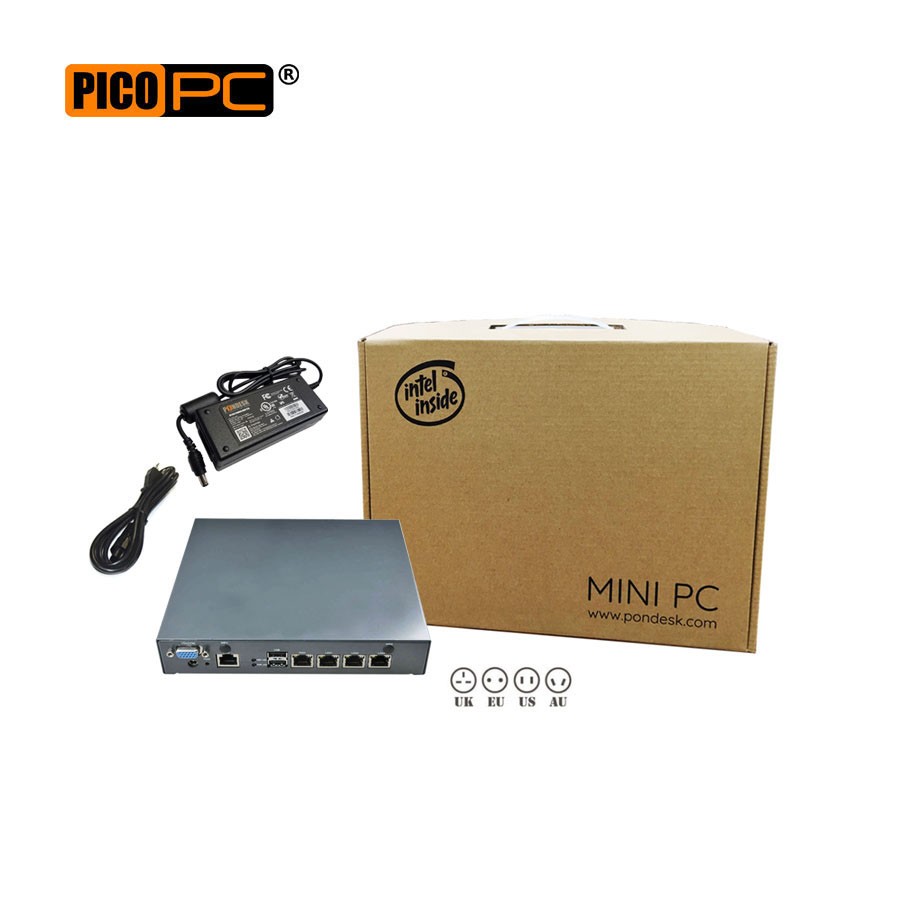

1 x Mini SERVER, 1 x Power Adopter, 1 x Cord
|
