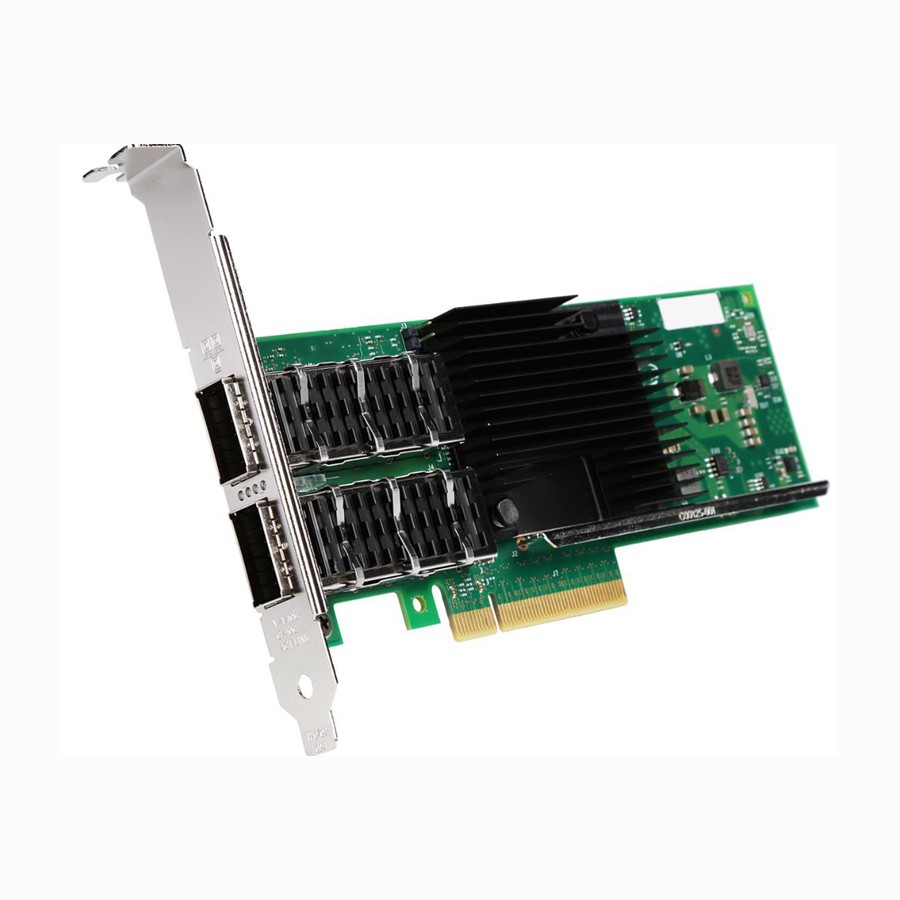

Intel XL710-QDA2 Dual Port 40GbE QSFP+ Ethernet Converged Adapter overview
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Specifications
|
Interface Specification
|
|
|
Interface
|
PCI Express (x8)
|
|
Network Interface
|
2 x 40/10GbE QSFP+
|
|
LED Indicator
|
Link/Speed/Activity
|
|
Network Specification
|
|
|
Network Controller
|
Intel XL710
|
|
Chipset
|
Not specified
|
|
Cable Type
|
QSFP+ Direct Attach Twin Axial Cabling up to 10m
|
|
General Specification
|
|
|
Package Contents
|
Intel XL710-QDA2 PCIe Network Adapter, Low Profile Bracket
|
|
Supported Operating Systems
|
Windows 11, Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022, Linux RHEL / SLES
|
