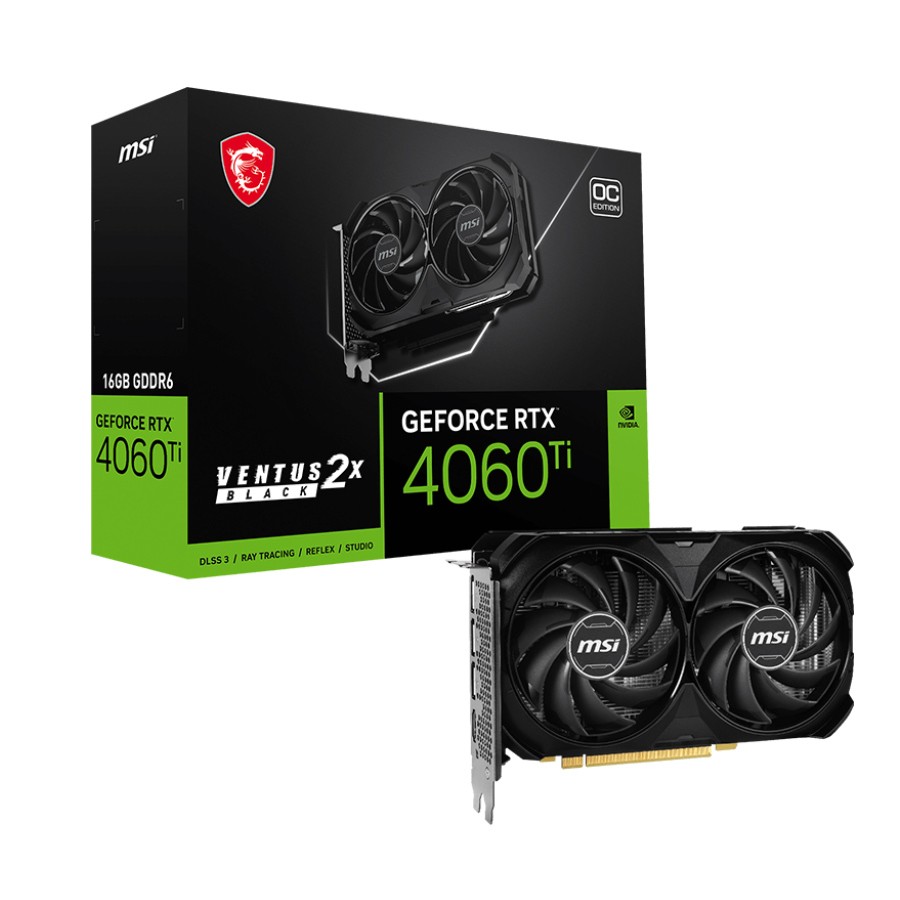

The MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 16G OC Graphics Card, based on the Ada Lovelace architecture, is designed to handle 1080p gaming with enhanced performance and power efficiency over the previous Ampere-based generation. This GPU boasts 4352 CUDA cores, a core clock of 2310 MHz, and a boost clock of 2610 MHz, complemented by 16GB of GDDR6 VRAM and a 128-bit memory interface. These specifications ensure robust capabilities for both gaming and computationally intensive tasks.
The front panel of the RTX 4060 Ti features a variety of outputs, including DisplayPort 1.4a and HDMI 2.1a. The HDMI 2.1 port supports up to 48 Gb/s bandwidth, enabling higher resolutions and refresh rates such as 8K at 60 fps, 4K at 120 fps, and even up to 10K. This makes the RTX 4060 Ti versatile for high-resolution gaming and other demanding applications.
For cooling, MSI has implemented dual TORX 4.0 fans that work together to create optimal air pressure levels. Airflow Control technology guides the air precisely where it is needed for maximum cooling efficiency. The precision-crafted heat pipes ensure maximum contact with the GPU, spreading heat along the entire length of the heatsink. Furthermore, the Zero Frozr feature stops the fans completely when temperatures are relatively low, reducing noise and ensuring a quieter operation.
Features:
Utilizing the Ada Lovelace architecture.
PCI Express® Gen 4 x16 (uses x8) interface
16GB GDDR6 memory with 18 Gbps memory speed
4352 CUDA CORES
3 x DisplayPort v1.4a and 1 x HDMI 2.1a
Copper Baseplate for better cooling
Core Pipes to spread heat along the full length of the heatsink
TORX FAN 4.0 to create unprecedented levels of focused air pressure.
The reinforcing backplate provides additional ventilation.
Specifications:
Model Name | GeForce RTX™ 4060 Ti VENTUS 2X BLACK 16G OC |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 4060 Ti |
Interface | PCI Express® Gen 4 x16 (uses x8) |
Core Clocks | Extreme Performance 2625 MHz (MSICenter) |
Boost 2610 MHz |
CUDA® CORES | 4352 Units |
Memory Speed | 18 Gbps |
Memory | 16GB GDDR6 |
Memory Bus | 128-bit |
Output | 3 x DisplayPort(v1.4a) |
1 x HDMI™(Supports 4K@120Hz HDR and8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
HDCP Support | Y |
Power consumption | 165 W |
Power connectors | 1x 8-pin |
Recommended PSU | 550 W |
Card Dimension (mm) | 199 x 120 x 42 mm |
Weight (Card / Package) | 595 g / 832 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
