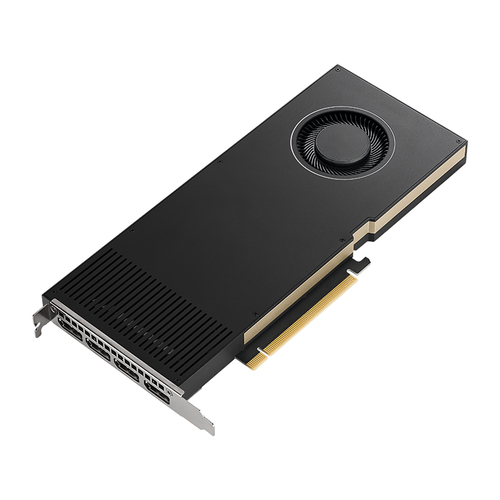

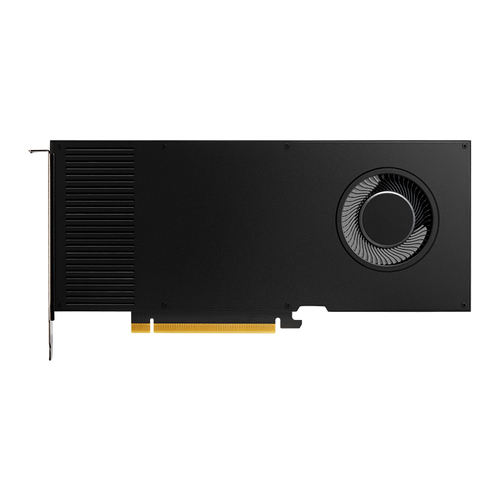

NVIDIA RTX A4000 is a top-of-the-line workstation graphics card packed into a single-slot design. It delivers features like real-time ray tracing, powerful AI processing, and high-performance graphics for your desktop. Built on the latest NVIDIA Ampere architecture, this powerful GPU boasts 48 second-generation RT Cores for ray tracing, 192 third-generation Tensor Cores for AI workloads, and 6144 CUDA cores for overall graphics processing. With 16GB of GDDR6 memory and a 256-bit memory interface, the RTX A4000 delivers exceptional performance to tackle demanding professional tasks such as engineering complex products, designing intricate cityscapes, and creating immersive entertainment experiences.
Features:
Built on NVIDIA Ampere Architecture
Integrated with 16 GB GDDR6 memory with ECC support
6144 CUDA Cores
The RTX A4000 supports PCI Express Gen 4.
Doubles the peak FP32 operations
Up to 2X throughput for tensor matrix operations.
The RTX A4000 is up to 2x faster in ray tracing.
Seventh Generation NVENC Engine for most demanding 4K or 8K video encoding tasks
Lossless decompression performance by up to 100x
20x lower CPU utilization
Enhanced Tensor Cores that accelerate more datatypes.
Specifications:
Product | PNY NVIDIA RTX A4000 |
Manufecturer Model Number | VCNRTXA4000SB |
Architecture | NVIDIA Ampere Architecture |
Process Size | 8nm |
Transistors | 17.4 Billion |
Die Size | 392.5 mm^2 |
CUDA Cores | 6144 |
Tensor Cores | 192 |
RT Cores | 48 |
Single Precision Performance | 19.2 TFLOPS |
RT Core Performance | 37.4 TFLOPS |
Tensor Performance | 153.4 TFLOPS |
GPU Memory | 16 GB GDDR6 with ECC |
Memory Interface | 256-bit |
Memory Bandwidth | 448 GB/sec |
Display Connectors | 4x DisplayPort 1.4a |
NVENC | NVDEC | 1x | 1x (+ AV1 decode) |
System Interface | PCI Express 4.0 x16 |
Form Factor | 4.4” H x 9.5” L Single Slot |
Thermal Solution | Active Fansink |
Maximum Power Consumption | 140 W |
Power Connector | 1x 6-pin PCIe |
Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz |
NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
Frame Lock | Optional NVIDIA Quadro Sync II |
