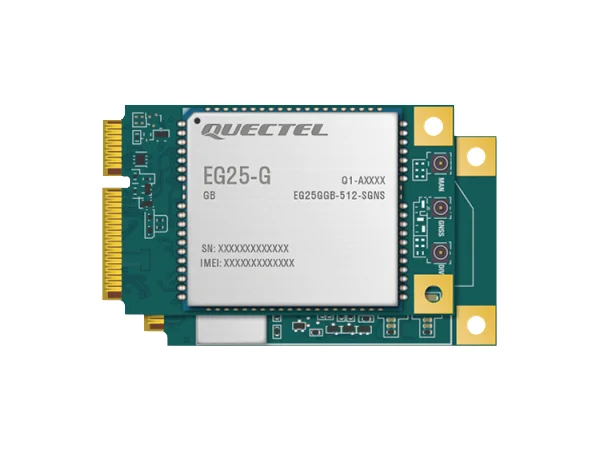

Quectel EG25-G Mini PCIe Cat4 LTE 4G Module up to 150Mbps
The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.
Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.
The EG25-G Mini PCIe supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.
Key Features:
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- Supports MIMO
- Supports DFOTA and DTMF
- Multi-constellation GNSS receiver available
- USB 2.0 high-speed interface
Specifications:
| Cellular Bands |
|
| LTE-FDD |
B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
| LTE-TDD |
B38/39/40/41 |
| WCDMA |
B1/2/4/5/6/8/19 |
| GSM |
B2/3/5/8 |
| Data transmission (Max. ) |
|
LTE data rates (Mbps)
|
LTE-FDD: 150 (DL)/50 (UL);
LTE-TDD: 130 (DL)/30 (UL) |
DC-HSPA+ data rates (Mbps)
|
42 (DL)/5.76 (UL) |
WCDMA data rates (Kbps)
|
384 (DL)/384 (UL) |
EDGE data rates (Kbps)
|
296 (DL)/236.8 (UL) |
GPRS data rates (Kbps)
|
107 (DL)/85.6 (UL) |
Protocols
|
TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS*/FTPS*/SMTPS/SSL/FILE |
| Interfaces |
UART × 1
USB × 1: USB 2.0 with High Speed up to 480 Mbps
(U)SIM × 1
PCM × 1: Digital Audio through PCM (Optional)
I2C × 1 (Optional)
Antenna: × 1 Main, × 1 Rx-diversity, × 1 GNSS (optional) |
Enhanced Features
|
|
(U)SIM card connector
|
Optional |
GNSS
|
Optional |
Firmware update
|
Via USB/DFOTA
|
| Software Features |
|
| USB Serial Driver |
Windows 7/ 8/ 8.1/ 10/ 11
Linux 2.6–6.5
Android 4.x–13.x |
| GNSS Driver |
Android 4.x–13.x |
| RIL Driver |
Android 4.x–13.x |
| USB NDIS Driver |
Windows 7/ 8/ 8.1/ 10/ 11 |
| USB GobiNet Driver |
Linux 2.6–6.7 |
| USB QMI_WWAN Driver |
Linux 3.4–6.7 |
| General Features |
|
| Operating Temperature Range |
-35 to +75 °C |
| Extended Temperature Range |
-40 to +85 °C |
| Dimensions |
30.0mm × 51.0mm × 4.9mm |
| Weight |
9.8 g |
| From Factor |
Mini PCIe |
LTE category
|
LTE Cat 4
|
| Electrical Features |
|
Supply voltage range
|
3.0 V ~ 3.6 V, typ. 3.3
|
Power consumption
|
3.3 mA @ Sleep, Typ. / 35 mA @ ldle
|
| Certification |
|
Carrier certification
|
Deutsche Telekom/Verizon/AT&T/T-Mobile/Sprint/U.S. Cellular/Telus/Rogers
|
Regulatory certification
|
GCF/CE/PTCRB/FCC/IC/Anatel/IFETEL/SRRC/NAL/CCC/KC/NCC/JATE/
TELEC/RCM/NBTC/IMDA/ICASA
|
| Others |
WHQL |
