In Stock UK Free ShippingPRODUCT CODE: SWHO-003

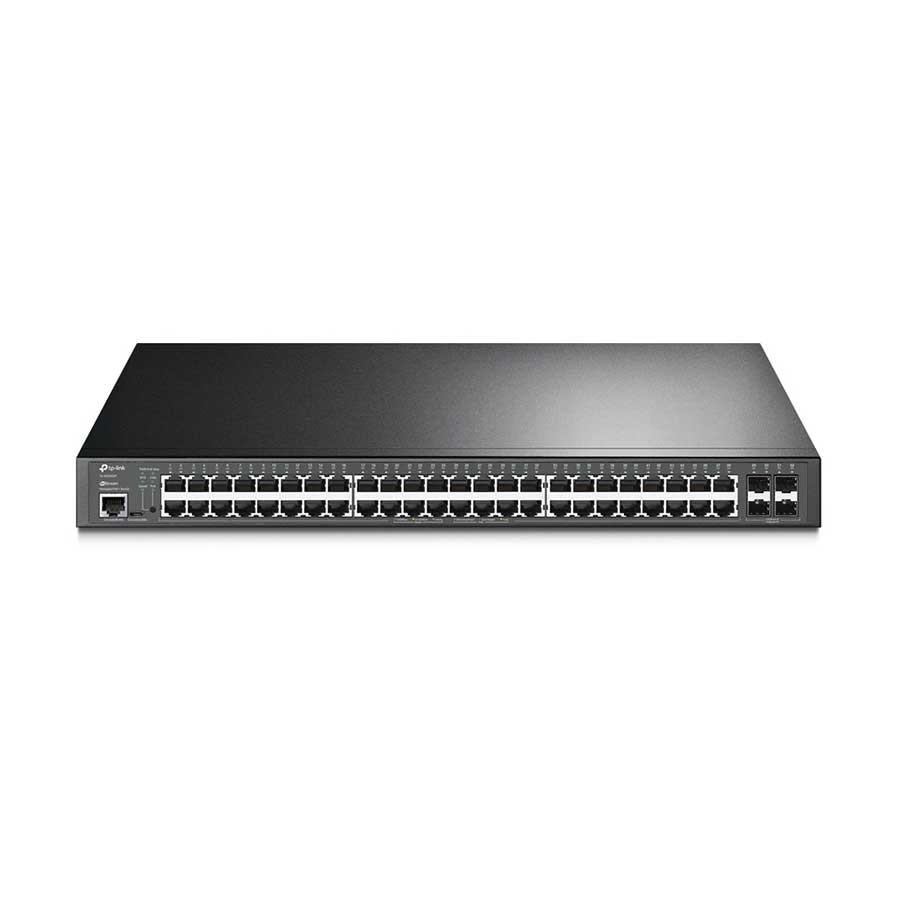

The 48-port managed PoE+ switch offers a robust network
solution for businesses with high connectivity demands. Featuring a 384W PoE
budget, this switch powers multiple devices such as IP cameras, access points,
and VoIP phones directly through its 48 PoE+ ports. Additionally, four Gigabit
SFP slots ensure seamless fiber-optic connectivity, delivering a future-proof
infrastructure. With a switching capacity of 104 Gbps and a packet forwarding
rate of 77.38 Mpps, it ensures lightning-fast data transmission for
high-performance networking.
The switch is integrated into the Omada SDN platform,
enabling centralized cloud management with Zero-Touch Provisioning (ZTP) and
intelligent monitoring for hassle-free operation. Advanced security strategies
like IP-MAC-Port Binding, DHCP snooping, and 802.1X authentication protect
against unauthorized access and network threats. QoS and IGMP snooping enhance
voice and video applications, making it suitable for real-time communication
and streaming.
Ideal for office setups, this switch can power and manage
multiple IP cameras and access points in a centralized manner, minimizing cable
clutter and maximizing performance. Its PoE+ support and centralized management
make it an excellent choice for small to medium-sized businesses focused on
efficiency and security.
Features
48× gigabit RJ45 ports and 4×
gigabit SFP Slots provide high-speed connections
48× 802.3at/af-compliant PoE+
ports with a total power supply of 384 W*
Integrated into Omada SDN:
Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent
Monitoring
Centralized Management: Cloud
access and Omada app for ultra convenience and easy management
Static Routing: Helps route
internal traffic for more efficient use of network resources
Robust Security Strategies:
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP
Snooping, 802.1X, Radius Authentication, etc.
Optimize Voice and Video
Applications: L2/L3/L4 QoS and IGMP snooping
Standalone Management: Web,
CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful
management capabilities
Specifications:
|
Model# |
TL-SG3452P |
|
Interface |
48× 10/100/1000 Mbps RJ45 Ports |
|
4× Gigabit SFP Slots |
|
|
1× RJ45 Console Port |
|
|
1× Micro-USB Console Port |
|
|
Fan Quantity |
3 Fans |
|
Power Supply |
100-240 V AC~50/60 Hz |
|
PoE+ Ports(RJ45) |
Standard: 802.3at/af compliant |
|
PoE+ Ports: 48 Ports, up to 30 W per
port |
|
|
Power Budget: 384 W |
|
|
Dimensions ( W x D x H ) |
(440 × 330 × 44 mm) |
|
Mounting |
Rack Mountable |
|
Max Power Consumption |
52.53 W (110 V/60 Hz) (no PD
connected) |
|
485.4 W (110 V/60 Hz) (with 384 W PD
connected) |
|
|
Max Heat Dissipation |
179.13 BTU/hr (110 V/60 Hz) (no PD
connected) |
|
1656.19 BTU/hr (110 V/60 Hz) (with
384 W PD connected) |
|
|
Switching Capacity |
104 Gbps |
|
Packet Forwarding Rate |
77.4 Mpps |
|
MAC Address Table |
16 K |
|
Packet Buffer Memory |
12 Mbit |
|
Jumbo Frame |
9 KB |
|
Software Feature |
Quality of Service |
|
L3 Features |
|
|
L2 and L2+ Features |
|
|
L2 Multicast |
|
|
VLAN |
|
|
Access Control List |
|
|
Advanced Features |
Automatic Device Discovery |
|
Batch Configuration |
|
|
Batch Firmware Upgrading |
|
|
Security |
IP-MAC-Port Binding |
|
IPv6-MAC-Port Binding |
|
|
DoS Defend |
|
|
Static/Dynamic Port Security |
|
|
IP/Port/MAC based access control |
|
|
IPv6 |
IPv6 Dual IPv4/IPv6 |
|
Multicast Listener Discovery (MLD)
Snooping |
|
|
IPv6 ACL |
|
|
IPv6 neighbor discovery (ND) |
|
|
TCPv6/UDPv6 |
|
|
Management |
Web-based GUI |
|
SNMPv1/v2c/v3 |
|
|
MIBs |
MIB II (RFC1213) |
|
P/Q-Bridge MIB (RFC2674) |
|
|
Radius Accounting Client MIB
(RFC2620) |
|
|
Remote Ping, Traceroute MIB
(RFC2925) |
|
|
System Requirements |
Microsoft® Windows® 98SE, NT, 2000,
XP, Vista™ |
