Stop worrying about traffic spikes and malicious attacks that can shut down your website. The A10 Thunder 7655 TPS, 220 Gbps Throughput, DDoS Protection Appliance is a high-performance security box that keeps your online services running smoothly. It is built for data centers, cloud providers, and large enterprises that cannot afford downtime. If you have ever lost customers because a DDoS attack slowed or stopped your site, this appliance gives you the protection you need.

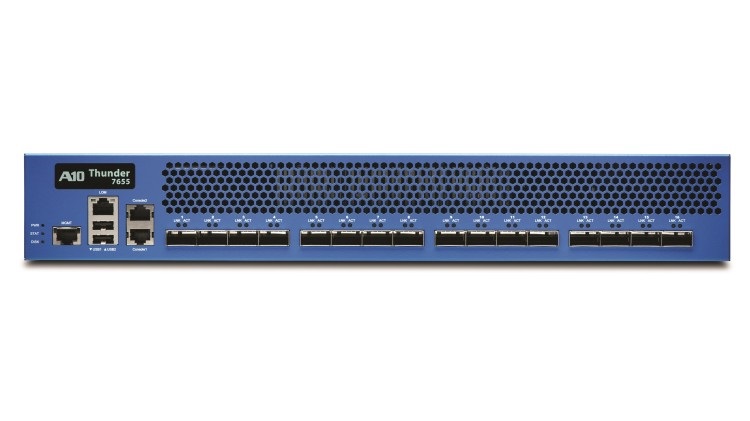

A10 Thunder 7655 TPS, 220 Gbps Throughput, DDoS Protection Appliance
Many businesses face traffic floods that overwhelm firewalls and cause latency. When legitimate users cannot reach your site, revenue drops and brand trust suffers. The A10 appliance stops the flood at the hardware level, filters bad traffic, and lets good traffic flow at up to 380 Gbps. It solves the problem by combining fast hardware blocking with intelligent software scrubbing, so you get both speed and deep inspection without sacrificing performance.
Key Features
- Throughput: 380 Gbps software scrubbing, 1.2 Tbps hardware blocking.
- Packet rate: 115 Million pps software, 500 Million pps hardware anomaly block.
- 256 Million concurrent sessions for asymmetric deployments.
- Dual Intel Xeon 28-core processors and 384 GB ECC RAM for reliability.
- SSD storage with 2 FTA-5, SPE hardware acceleration.
- 16 100 GE QSFP28 ports for high-speed fiber connections.
- Management: Ethernet management port and RJ-45 console port.
- Power: Dual 1500 W redundant PSUs, 80 Plus Platinum efficiency.
- Hot-swap smart cooling fans for continuous operation.
- Operating range: 0 C to 40 C, 5 %-95 % humidity.
- Certifications: FCC Class A, UL, CE, GS, RoHS and more.
- 90-day hardware and software warranty.
Specifications
| PERFORMANCE |
|
| Throughput (Software Scrubbing)*1 |
380 Gbps |
| Hardware Blocking |
1.2 Tbps |
| Packets Rate (pps)*1 |
115 Milloin |
| Software-based - SYN Authentication (pps) |
115 Milloin |
| Hardware-based - Anomaly Flood Blocking (pps) |
500 Million |
| Maximum Concurrent Sessions (Asymmetric Deployment) |
256 Million |
| Average Latency |
60 µs |
| Minimum Rate Enforcement Interval |
100 ms |
| FLOW DETECTION PERFORMANCE |
|
| Flows Per Second (fps) |
N/A |
| DNS AUTHORITATIVE CACHE PERFORMANCE |
|
| DNS Queries Per Second (qps) |
N/A |
| NETWORK INTERFACE |
|
| 1/10 GE Fiber (SFP+) |
0 |
| 40 GE Fiber (QSFP+) |
0 |
| 100 GE Fiber |
16 (QSFP28) |
| MANAGEMENT PORTS |
|
| Management Ports |
Ethernet Management Port, RJ-45 Console Port+ |
| HARDWARE SPECIFICATIONS |
|
| Processor |
2 x Intel Xeon 28-core |
| Memory (ECC RAM) |
384 GB |
| Storage |
SSD |
| Hardware Acceleration |
2 x FTA-5, SPE |
| PHYSICAL |
|
| Dimensions (Inches) |
2.625 (H) x 17.5 (W) x 30 (D) |
| Rack Units (Mountable) |
1.5U |
| Unit Weight |
44.2 lbs |
| POWER |
|
| Power Supply (DC option available) |
Dual 1500W RPS |
| |
80 Plus Platinum efficiency, 100-240 VAC, 50-60 Hz |
| Power Consumption (Typical/Max)*2 |
1,121W / 1,300W |
| Heat in BTU/Hour (Typical/Max)*2 |
3,826 / 4,436 |
| COOLING |
|
| Cooling Fan |
Hot Swap Smart Fans |
| OPERATING RANGES |
|
| Temperature |
0° - 40° C |
| Humidity |
5% - 95% |
| REGULATORY CERTIFICATIONS |
|
| Regulatory Certifications |
FCC Class A, UL, CE, GS, CB, VCCI, CCC, BSMI, RCM | RoHS |
| WARRANTY |
|
| Standard Warranty |
90-Day Hardware and Software |
