When an embedded system has to operate continuously in a control cabinet or industrial installation, a conventional desktop PC can take up too much space and may not provide the right combination of networking, serial ports, expansion, and wide DC power input. A fanless embedded box PC offers a more compact approach while keeping the interfaces needed to connect industrial equipment and networked devices.

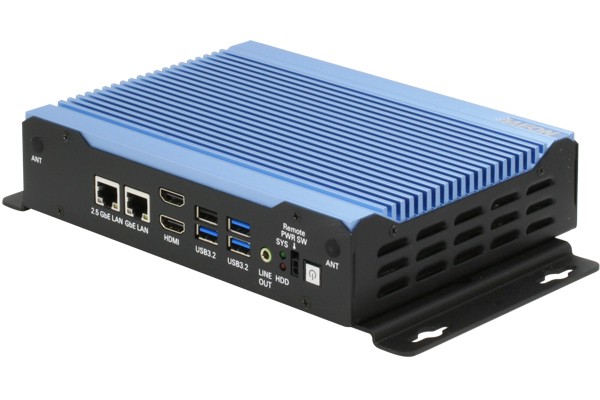

Aaeon BOXER-6643-TGU, Intel Core i7-1185G7E, 2 LAN Fanless Embedded Box PC
The Aaeon BOXER-6643-TGU is a fanless embedded box PC powered by the Intel Core i7-1185G7E processor and Intel SoC chipset. Its fanless design is useful for embedded installations where reduced moving parts and compact construction are important. The system supports up to 64GB of DDR4 3200MHz SODIMM memory, providing capacity for demanding industrial applications and multitasking workloads.

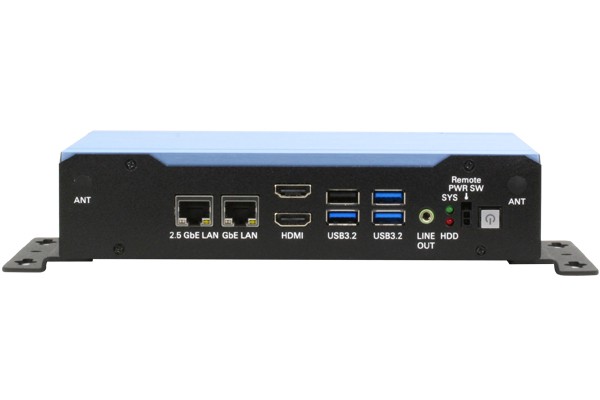

The system provides two Ethernet connections for different networking requirements. One RJ-45 port uses the Intel Ethernet Connection I219 for 1GbE connectivity, while the second uses the Intel Ethernet Controller I226 for 2.5GbE LAN connectivity. This combination provides both standard Gigabit networking and higher-speed Ethernet for systems that need faster data transfer.

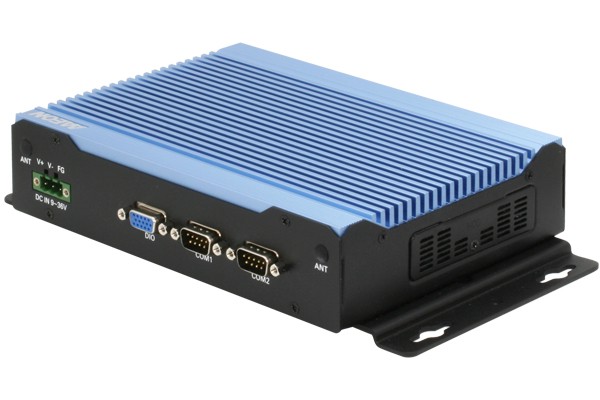

For equipment connectivity, the BOXER-6643-TGU includes two DB-9 ports supporting RS-232/422/485 and an 8-channel digital I/O interface. Three USB 3.2 Gen 2 Type-A ports and one USB 2.0 port provide additional connections for peripherals and industrial devices. Two HDMI 2.0 outputs support display connectivity, making the system suitable for applications where local visualization or multiple screens are required.

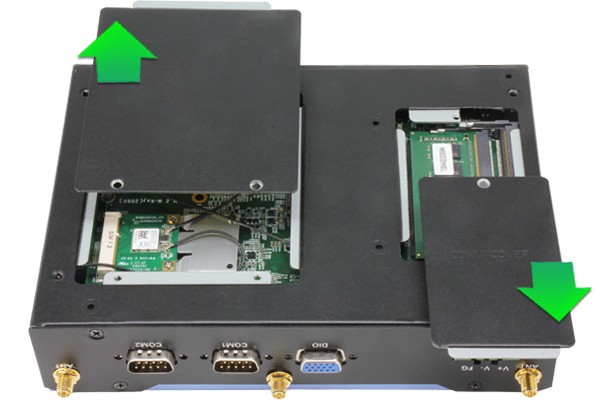

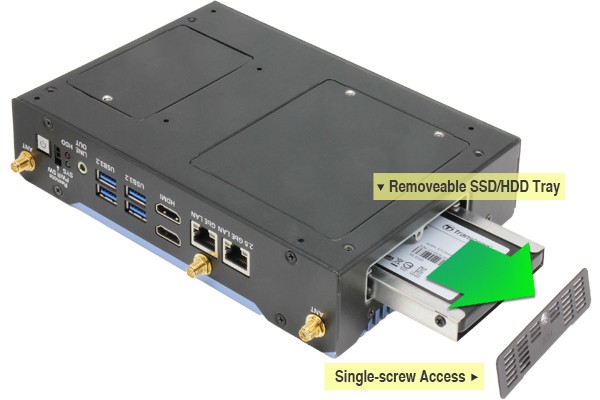

Storage and expansion options allow the computer to be configured for different embedded requirements. An M.2 2280 M-Key PCIe x4 slot supports NVMe storage, while a 2.5" SATA drive bay provides another storage option. The system also includes an M.2 3052 B-Key slot for a 5G module, a full-size Mini Card slot, and a SIM slot for wireless expansion.
The BOXER-6643-TGU is designed for installations requiring flexible DC power and fanless operation. It accepts 9V-36V DC through a 3-pin terminal block and supports wall mounting. Its operating temperature range is -20°C to 60°C with airflow and industrial wide-temperature SSD/RAM, while the storage temperature range extends from -40°C to 80°C. Anti-vibration and anti-shock specifications further support its use in demanding embedded environments.
Key features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω (1Ω for mono models) stable output stage providing Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.
- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
| System |
|
| CPU |
Intel® Core™ i7-1185G7E |
| Chipset |
Intel® SoC |
| System Memory |
DDR4 3200MHz SODIMM x 2, up to 64GB |
| Display Interface |
HDMI 2.0 x 2 |
| Storage Device |
|
| M.2 2280 |
M.2 2280 M-Key x 1 (PCIe [x4]) for NVMe |
| 2.5" SATA Drive Bay |
2.5" SATA Drive Bay x 1 |
| Ethernet |
|
| RJ-45 |
RJ-45 x 1 for 1GbE (Intel® Ethernet Connection I219) |
| RJ-45 |
RJ-45 x 1 for 2.5GbE LAN (Intel® Ethernet Controller I226) |
| I/O |
|
| HDMI |
HDMI 2.0 x 2 |
| RJ-45 |
RJ-45 x 1 for 1GbE (Intel® Ethernet Connection I219) |
| RJ-45 |
RJ-45 x 1 for 2.5GbE LAN (Intel® Ethernet Controller I226) |
| USB |
USB 3.2 Gen 2 (Type-A) x 3 |
| USB |
USB 2.0 x 1 |
| Serial |
DB-9 x 2 for RS-232/422/485 |
| Digital I/O |
DB-15 x 1 Digital I/O 8-channel |
| Audio |
Line-out x 1 |
| Power Input |
3-pin 9V-36V Power Input x 1 |
| Power Button |
Power Button with LED x 1 |
| Expansion |
|
| M.2 3052 B-Key |
M.2 3052 B-Key x 1 (for 5G module) |
| Full-size Mini Card |
Full-size Mini Card x 1 (PCIe + USB / SATA, Default PCIe + USB) |
| SIM Slot |
SIM Slot x 1 |
| Indicator |
|
| Indicator |
Power / System LED |
| OS Support |
|
| OS Support |
Windows® 10 IoT 64-bit, Windows® 11 Pro 64-bit, Linux Ubuntu 20.04.2 |
| Power Supply |
|
| Power Requirement |
9V-36V DC-in via 3-pin Terminal Block x 1 |
| Mechanical |
|
| Mounting |
Wallmount |
| Dimensions (W x H x D) |
9.84” x 5.62” x 2.03” (250mm x 143mm x 51.5mm) with bracket |
| Dimensions (W x H x D) |
7.87” x 5.62” x 1.75” (200mm x 143mm x 44.5mm) w/o bracket |
| Gross Weight |
4.4 lb (2.0 Kg) |
| Net Weight |
3.3 lb (1.5 Kg) |
| Environmental |
|
| Operating Temperature |
-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow
(w/ Industrial wide Temp. SSD/RAM)
|
| Storage Temperature |
-40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity |
5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration |
3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock |
50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification |
|
| Certification |
CE/FCC class A, UL |
