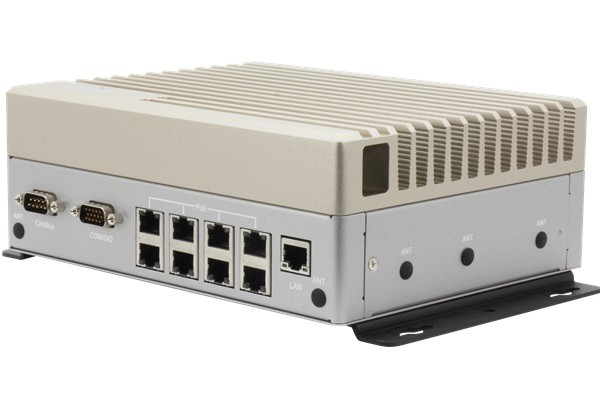

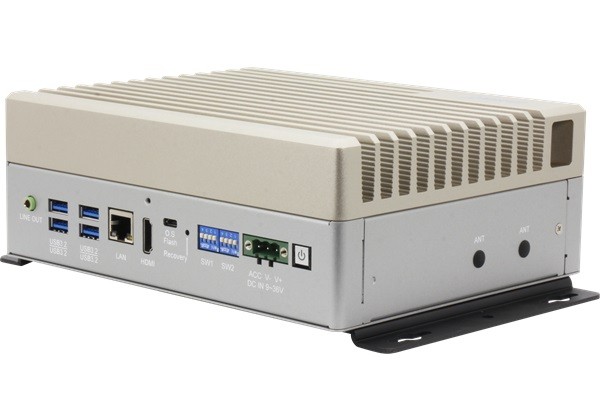

AAEON BOXER-8658AI, Orin NX 16GB Edge Fanless PoE Embedded AI PC
AAEON BOXER-8658AI, Orin NX 16GB Edge Fanless PoE Embedded AI PC is designed for edge AI applications that require powerful processing, multiple network connections, and PoE connectivity in a compact fanless system. It uses the NVIDIA® Jetson Orin™ NX 16GB platform with an 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU and 16GB LPDDR5 system memory. The system provides a practical computing platform for edge AI, industrial systems, and connected embedded applications.

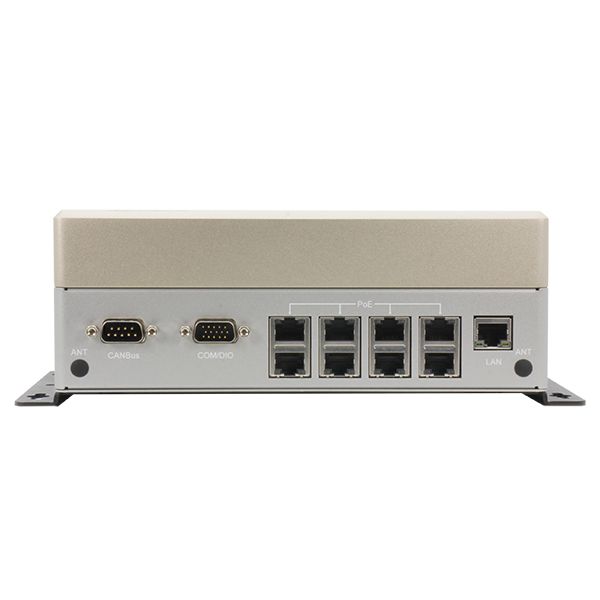

The BOXER-8658AI provides two Gigabit LAN ports and eight GbE PoE/PSE ports supporting 802.3af/at, with a maximum total PoE power of 120W depending on the input voltage. Its storage options include a 2.5” SATA drive bay and an M.2 2280 NVMe M Key interface. HDMI 2.0 provides display connectivity, while four USB 3.2 Gen 2 Type-A ports support external peripherals and devices.

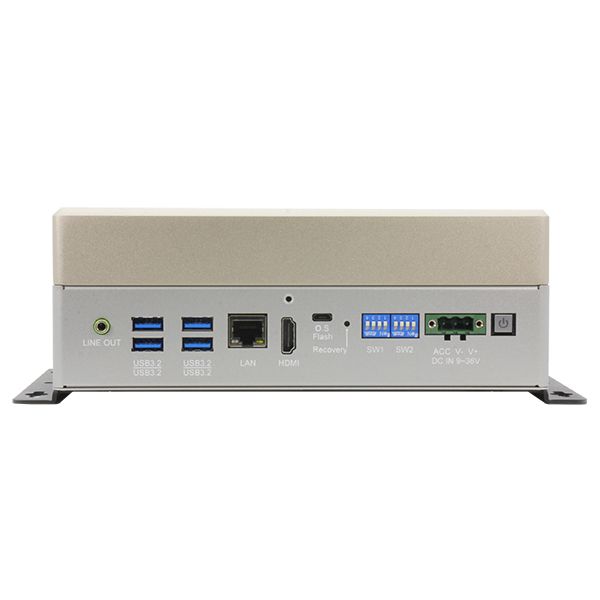

The system includes CANBus FD, RS232/422/485, DIO, line out, Micro USB for OS flashing, power and recovery buttons, and ACC ignition delay control. Expansion options include M.2 2230 E Key for WiFi/BT, M.2 3052 B Key for LTE, M.2 2280 NVMe, and 2.5” SATA storage. Dual SIM slots, GNSS support, TPM support, and 9-axis sensor support provide additional options for connected edge systems.
The fanless embedded AI PC is designed for applications where reliable operation and flexible installation are important. Its 9V to 36V power input with ACC Ignition Delay On/Off supports integration into systems requiring ignition control. Wall mounting provides a practical installation method, while the compact dimensions allow the unit to fit into a range of embedded and industrial environments.
The BOXER-8658AI operates from 5°F ~ 140°F (-15°C ~ 60°C with 0.7 m/s airflow, with Industrial wide Temp. SSD) and supports a storage temperature range of -40°F ~ 185°F (-40°C ~ 85°C). MIL-STD-810G anti-vibration and anti-shock specifications support use in demanding environments, while CE / FCC class A and E-Mark Compliance provide the specified certifications. Linux support with NVIDIA JetPack™ 6.0 and above makes it suitable for compatible edge AI deployments.
Key features
-
NVIDIA® Jetson Orin™ NX 16GB with 8-core Arm® Cortex®-A78AE CPU
-
16GB LPDDR5 system memory
-
8 x GbE PoE/PSE ports supporting 802.3af/at
-
Total PoE power up to 120W depending on input voltage
-
4 x USB 3.2 Gen 2 Type-A ports
-
M.2 2280 NVMe and 2.5” SATA storage support
-
M.2 2230 E Key and M.2 3052 B Key expansion for WiFi/BT and LTE
-
9V ~ 36V ACC Ignition Delay On/Off power input
SPECIFICATION
| System |
|
| AI Accelerator |
NVIDIA® Jetson Orin™ NX |
| Orin NX 16GB |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| System Memory |
16GB LPDDR5 |
| Storage Device |
2.5” SATA Driver Bay x 1, M.2 2280 NVMe M Key x 1 |
| Display Interface |
HDMI 2.0 type A x 1 |
| Ethernet |
RJ-45 x 2 for Giga LAN
RJ-45 x 8 for GbE PoE/PSE (802.3af/at, MAX.:120W)
*4 PoE ports sharing one MAC address and one Giga bandwidth.
Supports total 120W PoE when input voltage is at or over 24V.
Supports total 80W PoE when input voltage is between 12~24V.
Supports total 30W PoE when input voltage is below 12V |
| I/O |
|
| USB |
USB 3.2 Gen 2 type A x 4 |
| CANBus |
DB-9 x 1 for CANBus FD x 1 |
| Serial / DIO |
DB-15 x 1 for RS232/422/485 x 1 and DIO x 8 |
| Audio |
Line out x 1 |
| Micro USB |
Micro USB x 1 for OS Flash |
| Power button |
Power button x 1 |
| Recovery button |
Recovery button x 1 |
| Switch |
Switch x 2 for ACC Ignition Delay On/Off |
| Antenna |
Antenna x 7 |
| TPM Support |
TPM Support |
| GNSS Support |
GNSS Support |
| 9-Axis Sensor Support |
9-Axis Sensor Support |
| Expansion |
|
| M.2 2230 E Key |
M.2 2230 E Key x 1 (Wifi/BT) |
| M.2 3052 B Key |
M.2 3052 B Key x 1 (LTE) |
| M.2 2280 NVMe |
M.2 2280 NVMe M Key x 1 |
| 2.5” SATA |
2.5” SATA x 1 |
| SIM Slot |
SIM Slot x 2 |
| System Features |
|
| Indicator |
Power LED x 1 |
| OS Support |
Linux (NVIDIA JetPack™ 6.0 and above) |
| Power Supply |
|
| Power Requirement |
3-pin Terminal Block x 1 for 9V ~ 36V ACC Ignition Delay On/Off |
| Mechanical |
|
| Mounting |
Wall Mount Kit |
| Dimensions |
8.27’’ x 6.46’’ x 2.99’’ (210 x 164.2 x 76 mm) (Without Bracket),
9.69’’ x 6.46’’ x 3.27’’ (246 x 164.2 x 83 mm) (With Bracket)
|
| Gross Weight |
8.6 lbs (3.9Kg) |
| Net Weight |
6.7 lbs (3Kg) |
| Environmental |
|
| Operating Temperature |
5°F ~ 140°F (-15°C ~ 60°C with 0.7 m/s airflow, with Industrial wide Temp. SSD) |
| Storage Temperature |
-40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity |
5 ~ 95% @ 40°C, non-condensing |
| Anti-Shock |
MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment |
| Certification |
|
| Certification |
CE / FCC class A, E-Mark Compliance |
