Are you tired of using slow and outdated servers that are holding back your business? Look no further than the AAEON FWS-7850 1U Rackmount Server with 12th-15th Gen Intel Core Processors. This powerful server is designed to provide fast and reliable performance, making it perfect for businesses that need to stay ahead of the curve. With its advanced features and cutting-edge technology, this server is the perfect solution for anyone looking to upgrade their current system. Many businesses struggle with slow servers, which can lead to lost productivity and revenue. The AAEON FWS-7850 1U Rackmount Server is here to solve that problem, providing a fast and efficient way to manage your business's data and applications.

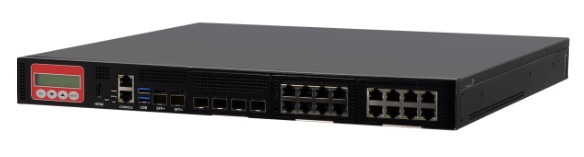

AAEON FWS-7850 1U Rackmount Server with 12th-15th Gen Intel Core Processors
The AAEON FWS-7850 1U Rackmount Server with 12th-15th Gen Intel Core Processors solves the problem of slow and outdated servers by providing a fast and reliable performance. This problem matters to users because it can lead to lost productivity and revenue. The AAEON FWS-7850 1U Rackmount Server gives a clear solution by providing advanced features and cutting-edge technology, making it the perfect solution for businesses that need to stay ahead of the curve. With its powerful processors and ample storage, this server is designed to handle even the most demanding applications, providing a fast and efficient way to manage your business's data and applications.
Key Features
- 1U Rackmount Network Appliance form factor, making it perfect for data centers and enterprise networks
- 12th/13th/14th/15th Generation Intel Core Processors, providing fast and reliable performance
- Intel W680 chipset, providing advanced features and cutting-edge technology
- DDR5 UDIMM ECC x 4, providing ample storage and memory
- 10GbE SFP+ x 2, providing fast and reliable networking capabilities
- 2.5" HDD Bay x 2, providing ample storage for data and applications
- M.2 2280 M-Key x 1 (PCIe [x4]), providing advanced storage and expansion capabilities
- USB 3.2 Gen 1 x 2, providing fast and reliable USB connectivity
- Smart Fan x 3, providing efficient and reliable cooling
- Optional system fan x 1, providing additional cooling capabilities
- TPM 2.0 SPI, providing advanced security features
Specifications
| PLATFORM |
|
| Form Factor |
1U Rackmount Network Appliance |
| Processor |
12th/13th/14th/15th Generation Intel® Core™ Processors |
| Chipset |
Intel® W680 |
| Memory |
DDR5 UDIMM ECC x 4 |
| NETWORK |
|
| Ethernet |
10GbE SFP+ x 2 (Intel® X710-BM2 x 1) |
| Bypass |
Dependent |
| NIM Slot |
3 |
| DISPLAY |
|
| Connector |
HDMI port x 1 |
| STORAGE |
|
| HDD |
2.5” HDD Bay x 2 |
| EXPANSION/INTERNAL INTERFACE |
|
| Mini-Card |
M.2 2280 M-Key x 1 (PCIe [x4]) |
| USB |
USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS |
|
| RTC |
Internal RTC |
| Watchdog Timer |
1~255 |
| Software Button |
1 |
| TPM |
TPM 2.0 SPI |
| GPIO |
Reserve internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| Fan |
Smart Fan x 3, optional system fan x 1 |
| MTBF (hours) |
TBD |
| Color |
Black |
| PHYSICAL & ENVIRONMENTAL |
|
| Power Requirement |
1U 300W Redundant PSU x 1 |
| Operating Temperature |
32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature |
-4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity |
10%~80% relative humidity, non-condensing |
| Storage Humidity |
0%~80% @40°C; non-condensing |
| Vibration |
0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive)
1.5 g rms/ 5 ~ 500Hz / non operation
|
| SHOCK |
10 G peak acceleration (11 m sec. duration), operation20 G peak acceleration
(11 m sec. duration), non op
|
| Dimension (W x D x H) |
16.93” x 15.75” x1.73” (430mm x 400 mm x 44mm ) |
| I/O INTERFACE |
|
| Front Panel |
10GbE SFP+ x 2
Power LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.2 Gen 1 x 2
HDMI x 1
RJ-45 Console x 1
LCM display with keypad x 1
Software Programmable Button x 1
NIM Slot x 3 |

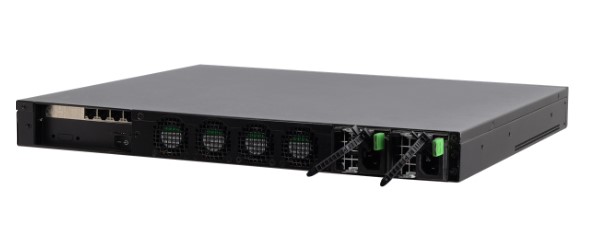

| Rear Panel |
AC Power Input x 1
Power Switch x1
Rear expansion slot x 1 (PCIe [x8]): Optional |
