In many factories and warehouses, moving heavy loads by hand or with a forklift slows down production and creates safety risks. When a single item weighs up to 1500 kg, workers can be injured and schedules slip. The ABB AMR P603 Autonomous Mobile Robot removes the need for manual lifting, delivering precise, repeatable transport while keeping staff safe. It follows a virtual path, adjusts speed, and can lift 160 mm, so you get continuous flow without interruptions.

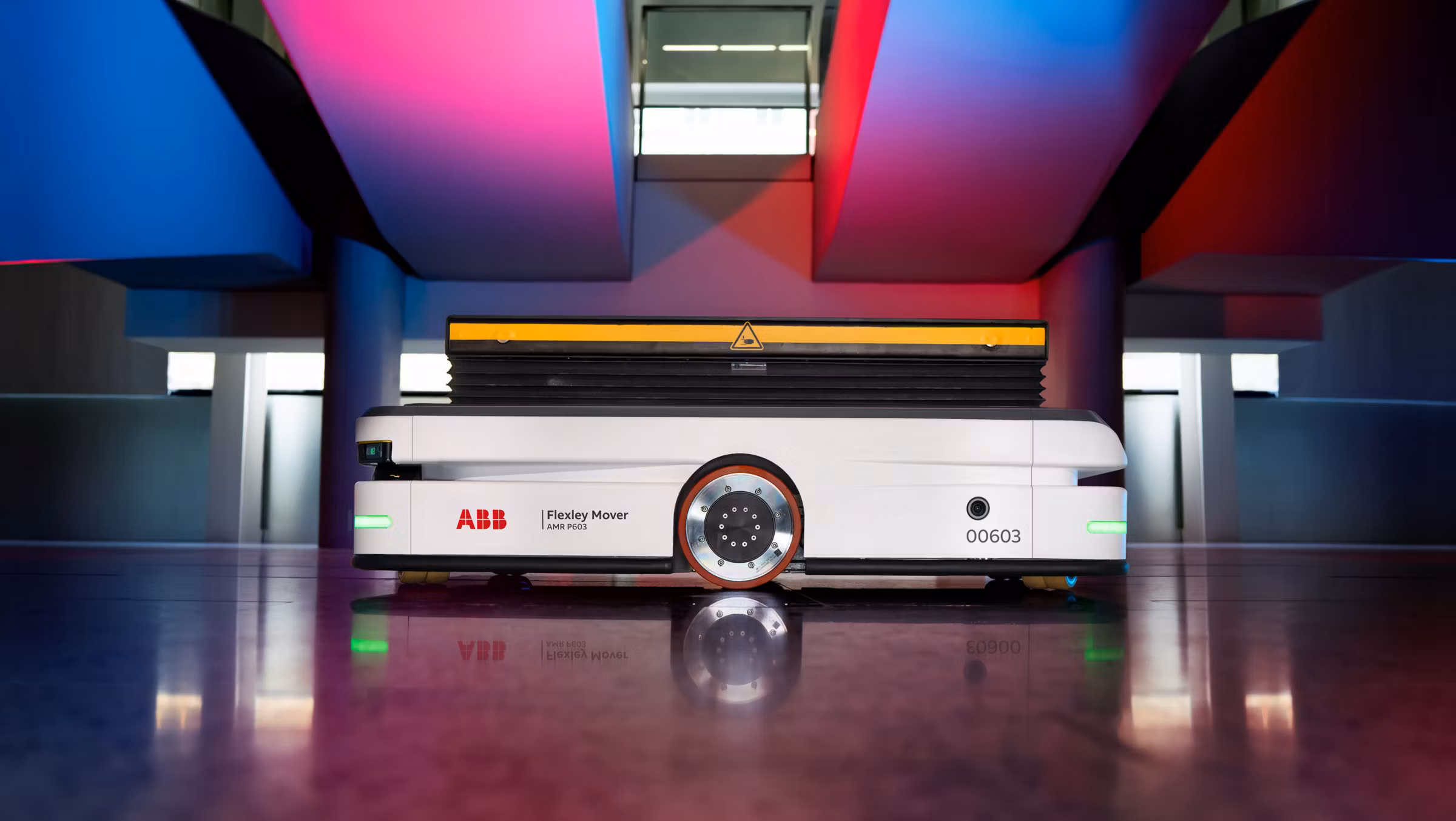

ABB AMR P603 AUTONOMOUS MOBILE ROBOTS with ABB
Imagine a robot that never tires and never makes a mistake. The ABB AMR P603 is an autonomous mobile robot designed to carry up to 1500 kg inside your plant. It uses ABBs Visual SLAM navigation to move along a predefined virtual path, turning on the spot when needed. If you struggle with slow manual transport or costly forklift downtime, this robot gives you a reliable, hands-free solution that fits into existing workflows.
Usages
The P603 works well in assembly lines where pallets need to be moved between stations. It can transport raw material bins in a warehouse, shift finished goods to loading docks, and support order-picking areas by delivering heavy cases directly to operators. Because it operates indoors and can turn on the spot, it fits narrow aisles and crowded floor plans without redesigning the layout.
Benefits
- Reduces worker fatigue and injury risk.
- Speeds up material flow and cuts idle time.
- Offers precise positioning within 5 mm.
- Runs continuously with online charging.
- Easy to control via pad, remote or optional tools.
Key Features
- Maximum payload of 1500 kg.
- Bidirectional differential drive for smooth motion.
- Visual SLAM navigation on a predefined virtual path.
- Speed range from 0.05 to 2 m/s.
- Zero turning radius - turn on the spot.
- Li-Ion 48 V battery with online and portable charging.
- Safety PLC and dual safety lasers for indoor use.
- Emergency stop buttons at two locations.

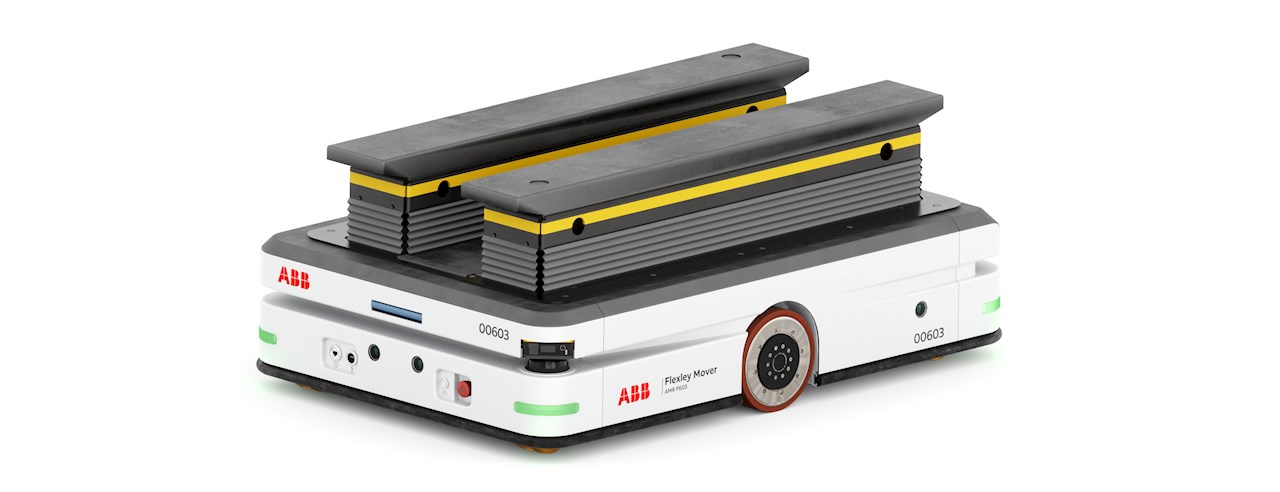

- Optional lifting system and pallet modules.
- Wi-Fi and RF communication for fleet management.
- Integrated HMI, USB and Ethernet connectivity.
- AMR Studio Fleet Manager for easy supervision.
Specifications
| General |
|
| Maximum payload |
1500 kg |
| Lifting height |
160 mm stroke |
| Dimensions (L×W×H) |
1285 x 835 x 300 mm* |
| Movement |
Bidirectional (Differential) |
| Navigation system |
Visual SLAM (predefined virtual path) |
| Speed range |
From 0.05 to 2 m/s** |
| Turning radius |
0 (Turn on spot) |
| Positioning accuracy |
±5 mm*** |
| Operation |
|
| Manual movement |
Control pad |
| Manual movement |
Wireless remote control |
| Manual movement |
External tool - optional |
| Energy |
|
| Battery |
Li-Ion 48V 20/40Ah |
| Charging system |
Online charging system (brushes) |
| Charging system |
Portable charger |
| Environment |
|
| Environment |
Indoor |
| Safety |
|
| Safety systems |
1 x Safety PLC |
| Safety systems |
2 x Safety Laser for indoor environment |
| Safety systems |
2 x Emergency stop button |
| Optional elements |
|
| Optional elements |
Lifting System |
| Optional elements |
Top module Standard Europallet |
| Optional elements |
Top module Standard Closed pallets EU/USA |
| Optional elements |
Forward Redspot |
| Optional elements |
Bumper |
| Handling system |
|
| Handling system |
Lifting table |
| Control & Management |
|
| Fleet management system |
AMR Studio® Fleet Manager |
| Communication |
|
| Communication |
WiFi |
| Communication |
Radio frequency system (EU) |
| Connectivity |
|
| Connectivity |
1 × HMI, WiFi; USB & Ethernet |
| Connectivity |
Through IT: capture boxes, PLC interface (OPC), ERP, MES, WMS, tablets |
