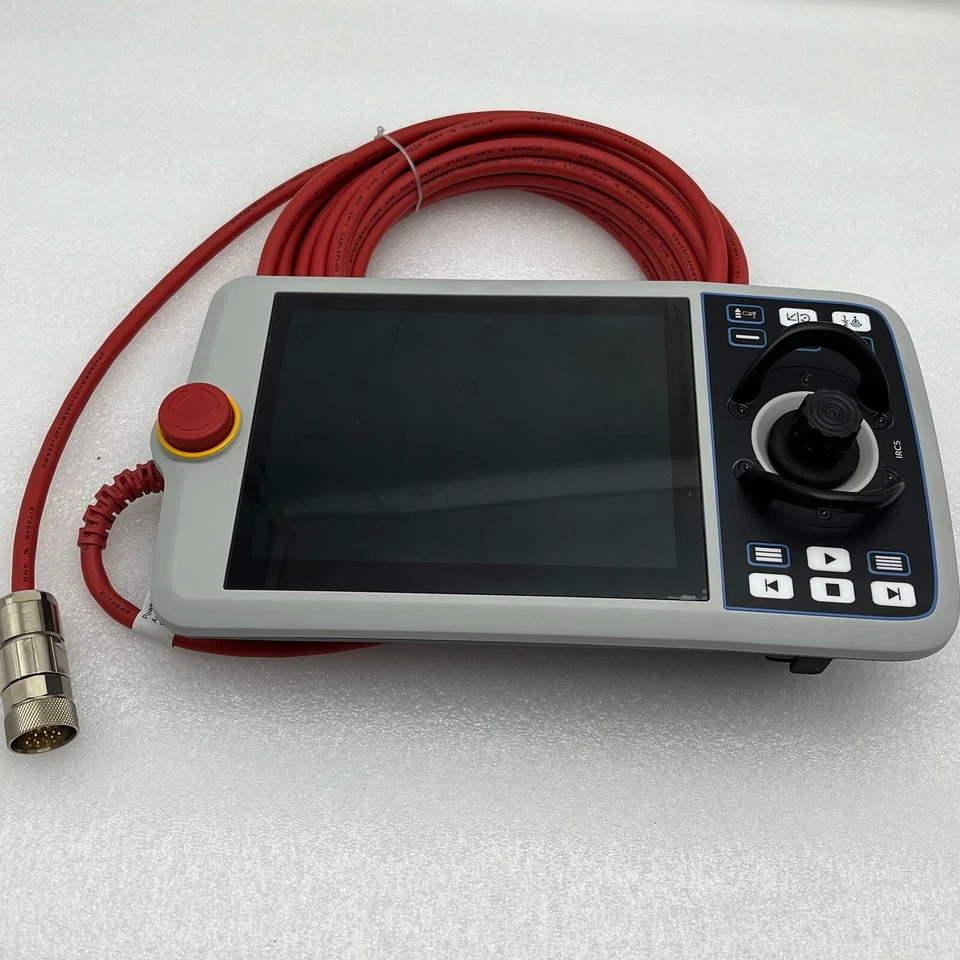

The DSQC3120 SxTPU4 FlexPendant is an advanced and highly ergonomic human-machine interface (HMI) designed specifically for programming, controlling, and teaching operations in ABB's state-of-the-art industrial robot systems.
- This high-performance pendant represents the latest in control technology, providing users with a flexible and intuitive platform to maximize efficiency and precision during robotic automation processes.
- Features a high-resolution color touchscreen display that presents real-time system data, operation modes, and diagnostics in a clear and easily readable format.
- Offers direct manipulation of robotic movements and parameters through an intuitive drag-and-drop interface and customizable soft keys.
- The "Flex" design allows for easy adaptation to various working environments and operator preferences.
- Specifically engineered to work seamlessly with ABB’s IRC5 and other compatible robot controllers.
- The ABB DSQC3120 SxTPU4 FlexPendant comes with ABB's renowned technical support and documentation to facilitate quick setup, troubleshooting, and maintenance.
Specification
| Category |
Industrial Robot Accessories |
| Sub-Category |
Teach Pendant / FlexPendant |
| General Information |
|
| Manufacturer |
ABB |
| Product Type |
Teach Pendant (FlexPendant HMI) |
| Model |
DSQC 3120 SxTPU4 |
| Part Number |
3HAC055590-001 |
| Country of Origin |
Sweden |
| Compatible Controller |
IRC5 / IRC6 Robot Controller |
| Electrical Specifications |
|
| Supply Voltage |
24 V DC ±10% |
| Typical Current Draw |
0.35 A @ 24 V |
| Power Consumption |
≤ 9 W (max up to 20 W in some listings) |
| System Specifications |
|
| System Memory |
512 MB DDR3-800 |
| Flash Storage |
4 GB e-MMC |
| Interface & Control |
|
| Control Interface |
Keypad / Knob Joystick |
| Communication |
Cable connection to robot controller |
| Function |
Robot programming, control, and teaching operations |
| Physical Specifications |
|
| Weight |
Approx. 0.34–0.40 kg |
| Dimensions |
Approx. 20 × 10 × 5.1 cm |
| Protection & Mounting |
|
| Protection Rating |
IP54 |
| Mounting |
Operator panel / controller interface connection |
| Additional Information |
|
| Description |
Robotic controller FlexPendant with cable |
