Integrated Dressing Welding Robot for High-Quality Arc Welding

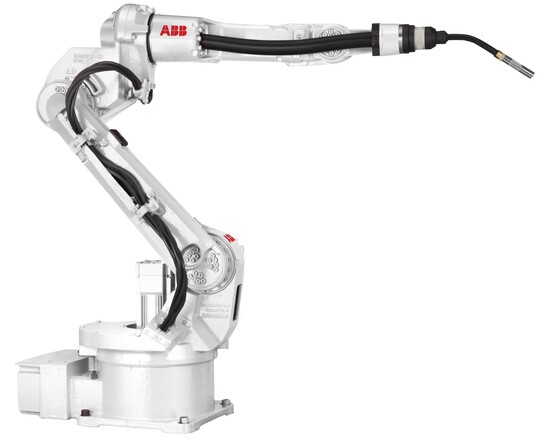

The IRB 1520ID is a compact 6-axis robot designed specifically for arc welding. It features integrated process dressing through the upper arm and base, optimizing media routing for wire feed, shielding gas, and power. With a 4 kg payload and 1.5 m reach, it allows consistent and precise performance in space-constrained welding cells.
Its design is particularly suited for welding cylindrical parts or accessing narrow areas. Powered by the OmniCore platform, it incorporates ABB’s TrueMove™ and QuickMove™ for superior path accuracy and efficient motion. The robot is fully compatible with RobotStudio and Arc Welding PowerPac for offline programming. Built-in safety features include dual-channel supervision, emergency stops, and 3-position enabling devices, making it a reliable solution for automated arc welding environments.
Features:
- 4 kg payload with 1.5 m reach; integrated process dressing
- Compact 6-axis design optimized for arc welding applications
- Path repeatability of 0.35 mm; position repeatability of 0.05 mm
- Fully integrated hose package supports efficient wire, gas, and air routing
- Excellent performance in confined and cylindrical weld areas
- Powered by OmniCore controller family with TrueMove™ and QuickMove™
- Compatible with RobotStudio and Arc Welding PowerPac for offline programming
Specifications:
| Model |
IRB 1520ID |
| Category |
Movement |
| Robot version |
IRB 1520ID |
| Reach |
1.5 m |
| Payload |
4 kg |
| Armload |
10 kg |
| Number of axes |
6 |
| Protection |
IP40 |
| Mounting |
Floor, inverted |
| Controller |
IRC5 Single Cabinet, OmniCore C30, C90XT, V250XT, V400XT |
| Category |
Axis movement |
| Axis 1 rotation working range |
+170° to -170° |
| Axis 1 max speed |
130°/s |
| Axis 2 arm working range |
+150° to -90° |
| Axis 2 max speed |
140°/s |
| Axis 3 arm working range |
+80° to -100° |
| Axis 3 max speed |
140°/s |
| Axis 4 rotation working range |
+155° to -155° |
| Axis 4 max speed |
320°/s |
| Axis 5 bend working range |
+135° to -135° |
| Axis 5 max speed |
380°/s |
| Axis 6 turn working range |
+200° to -200° |
| Axis 6 max speed |
460°/s |
| Category |
Electrical Connections |
| Supply voltage |
380 V |
| Power consumption |
0.6 kW (IRC5), 0.46 kW (OmniCore) ISO Cube |
| Category |
Physical |
| Robot base |
300 x 300 mm |
| Robot weight |
170 kg |
| Category |
Environment |
| Ambient temperature during operation |
+5°C (41°F) to +45°C (113°F) |
| Transportation and storage temperature |
-25°C (-13°F) to +55°C (131°F) |
| Short period temperature (max 24 h) |
up to +70°C (158°F) |
| Relative humidity |
Max. 95% |
| Category |
Safety |
| Safety |
Double circuits with supervisions, emergency stops and
safety functions, 3-position enable device
|
| Emission |
EMC/EMI shielded |
| Category |
Performance (ISO 9283) |
| Position repeatability |
0.05 mm |
| Path repeatability |
0.35 mm |
