Boost productivity with the Acer Chromebook Plus 514. This Chromebook Plus laptop, with Google AI features built in, features an Intel Core i3-1315U processor and a 14” WUXGA display. Built tough and always connected, it's ready for anything.
Specifications
| Design |
| Market positioning |
Consumer |
| Form factor |
Clamshell |
| Colour name |
Iron |
| Product colour |
Grey |
| Product type |
Chromebook |

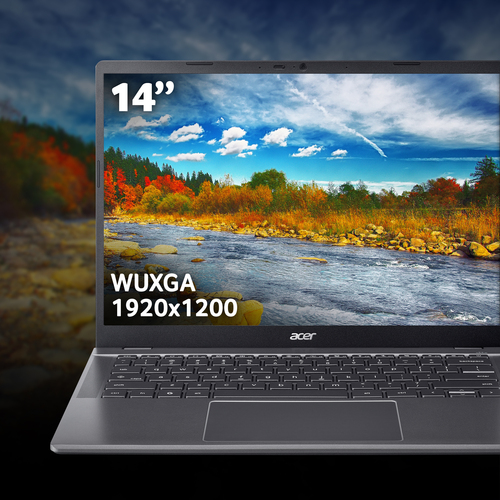

| Display |
| Display surface |
Matt |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Display technology marketing name |
ComfyView |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor frequency |
1.4 GHz |
| Processor boost frequency |
5 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
120U |
| Processor generation |
Intel Core (Series 1) |
| Processor family |
Intel Core 5 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| Neural processor unit (NPU) |
No |
| Memory |
| Maximum internal memory |
8 GB |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
M.2, PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Graphics |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Microphone modes |
Voice Isolation |
| Built-in microphone |
Yes |
| Number of microphones |
3 |
| Number of built-in speakers |
2 |
| Audio system |
DTS Audio Processing |
| Camera |
| Front camera HD type |
Quad HD |
| Front camera resolution |
2560 x 1440 pixels |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| WLAN controller manufacturer |
Intel |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Antenna type |
2x2 |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |

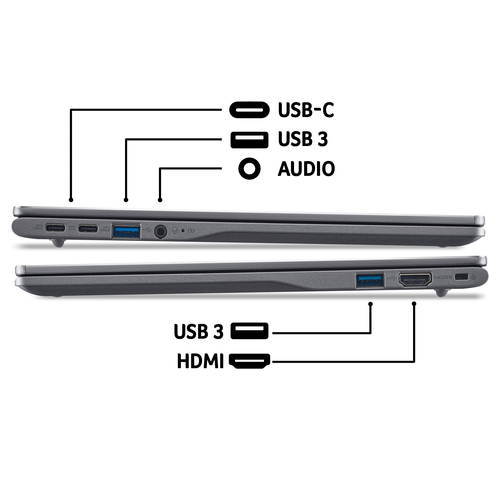

| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Numeric keypad |
No |
| Pointing device |
Touchpad |
| Software |
| Operating system installed |
ChromeOS |
| Battery |
| Battery life (max) |
13 h |
| Battery capacity |
53 Wh |
| Battery capacity |
53 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Type-C charging port |
Yes |
| AC adapter power |
65 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Weight & dimensions |
| Height |
18.4 mm |
| Depth |
226.5 mm |
| Width |
316.4 mm |
| Weight |
1.41 kg |
| Packaging data |
| Package weight |
2.34 kg |
| Package height |
65 mm |
| Package depth |
288 mm |
| Package width |
457 mm |
| Other features |
| Internal memory |
8 GB |
| Manufacturer |
Acer |
| Maximum internal memory |
8 GB |
| Package weight |
2.34 kg |
