Tired of missed scans and long wait times at the checkout? The Adesso NuScan 2500TU handheld scanner fixes that problem. It reads both 1D and 2D barcodes quickly, so you can move faster and avoid errors. If you need a reliable tool that works in a busy store, a warehouse, or a medical office, this scanner is the answer.

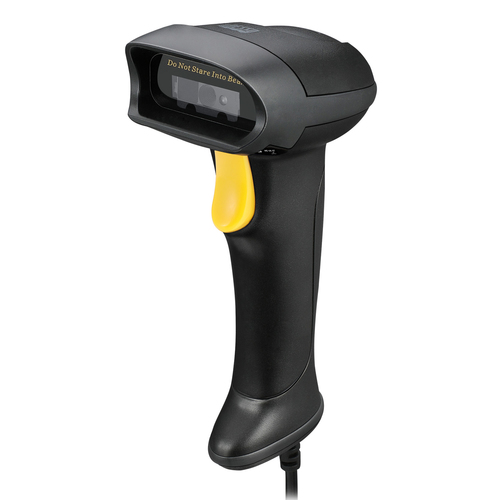

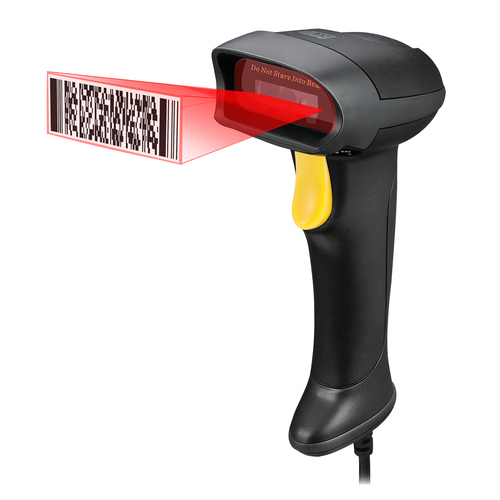

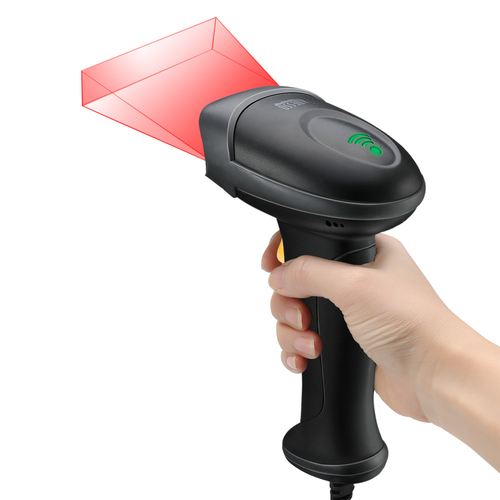

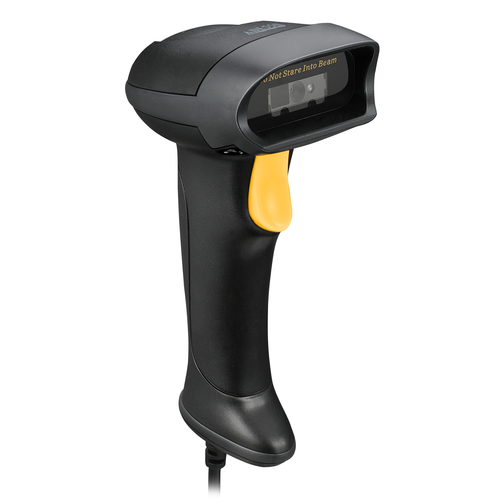

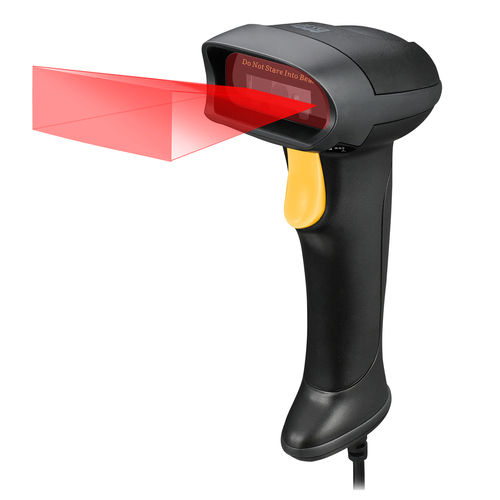

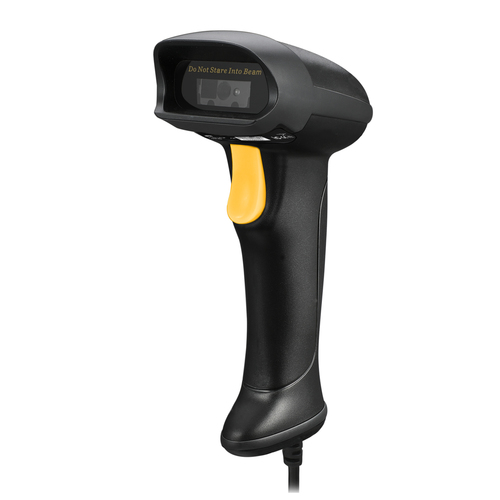

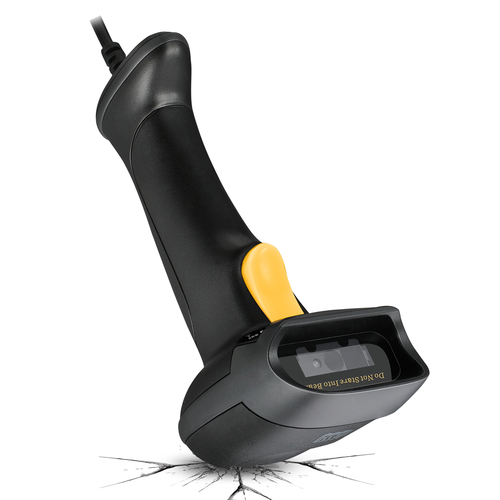

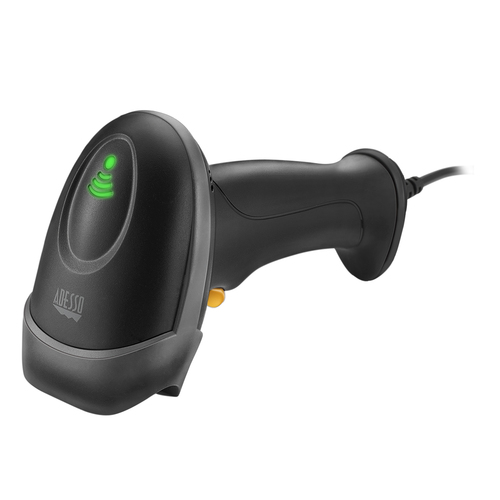

Adesso NuScan 2500TU 1D/2D 640 x 480 pixels Handheld Barcode Scanner - SCNR-116
Many businesses lose money because scanners cannot read damaged codes or work in bright light. That issue slows staff and frustrates customers. The NuScan 2500TU solves it by supporting a full range of 1D and 2D symbologies, handling sunlight up to 100000 lx, and offering a 30 cm working distance. Plug-and-play USB connection means you can start scanning the moment you plug it in.
Key Features
- Supports 1D barcodes such as UPC-A, Code 128, EAN-13 and many more.
- Supports 2D codes including QR, Micro QR, Data Matrix and PDF417.
- 640 x 480 pixel CMOS sensor for clear image capture.
- Reading angles up to 40 yaw and 45 pitch for flexible scanning.
- Works in direct sunlight from 0 to 100 000 lx.
- 30 cm optimal working distance for quick reads.
- 1.5 m USB cable and plug-and-play setup.
- Shock-resistant, water-resistant, and antimicrobial coating.

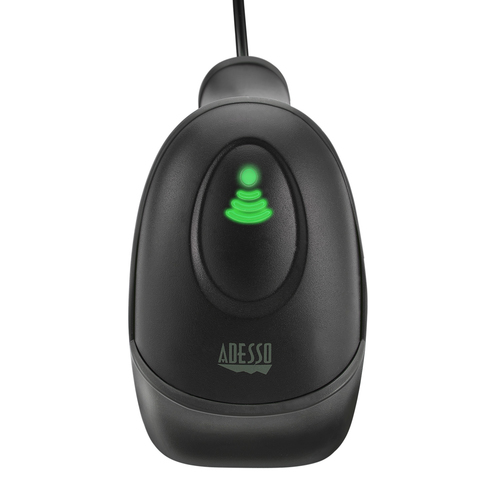

- LED indicator and audible buzzer confirm successful scans.
Specifications
| Scanning |
| Motion tolerance (cm/s) |
12.7 |
| Yaw reading angle |
-40 - 40° |
| Pitch reading angle |
-45 - 45° |
| Tilt reading angle |
-360 - 360° |
| Wavelength |
650 nm |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Working distance |
30 cm |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| 2D (matrix & stacked) barcodes supported |
Data Matrix, Micro QR Code, PDF417, QR Code |
| Linear (1D) barcodes supported |
ITF-6, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 39, Code 93, EAN-13,
EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited,
ISBN, ISSN, ITF-14, MSI, Plessey, UPC-A, UPC-E
|
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Cable length |
1.5 m |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
FCC, CE |
| Country of origin |
China |
| Buzzer |
Yes |
| LED indicators |
Yes |
| Protection features |
Shock resistant, Water resistant |
| Product colour |
Black, Yellow |
| Power |
| Power consumption |
132 mA |
| Input voltage |
3.3 V |
| Power source type |
USB |
| Weight & dimensions |
| Weight |
174 g |
| Height |
172 mm |
| Depth |
68 mm |
| Width |
94 mm |
| Packaging data |
| Package weight |
907.19 g |
| Package height |
266.7 mm |
| Package depth |
114.3 mm |
| Package width |
182.9 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
20 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Other features |
| Compatible operating systems |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X |
