Tired of missed scans and tangled cords at the checkout? The Adesso NuScan 5200TR is a wireless handheld scanner that reads both 1D and 2D barcodes fast and accurately. It helps you keep the line moving and cuts errors caused by slow or unreliable scanners. Designed for busy retail floors, warehouses and clinics, this device gives you the freedom to move while it captures every code.

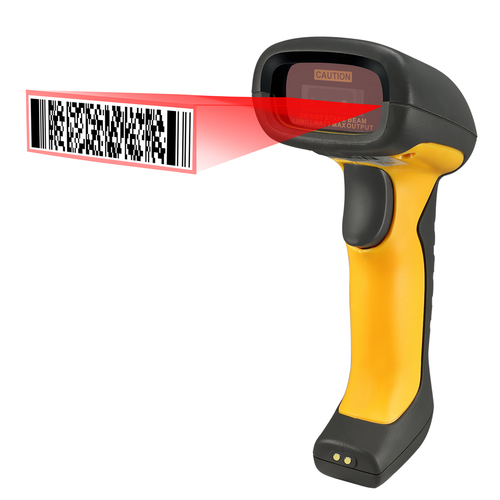

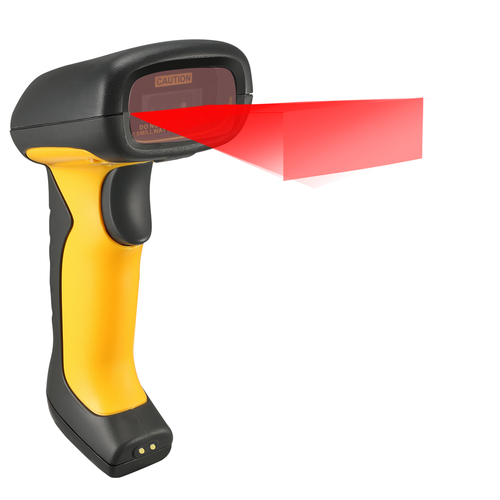

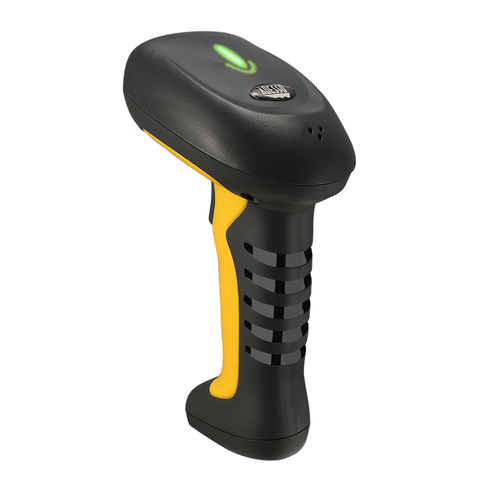

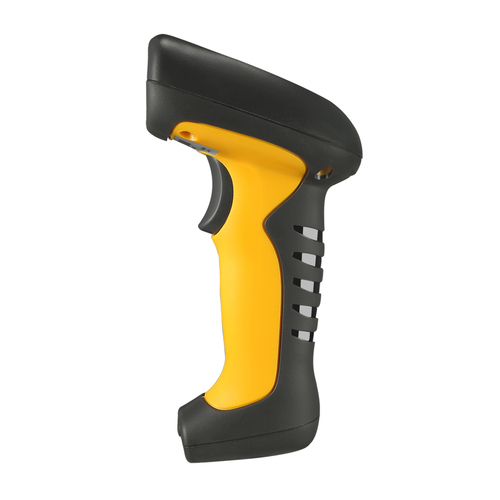

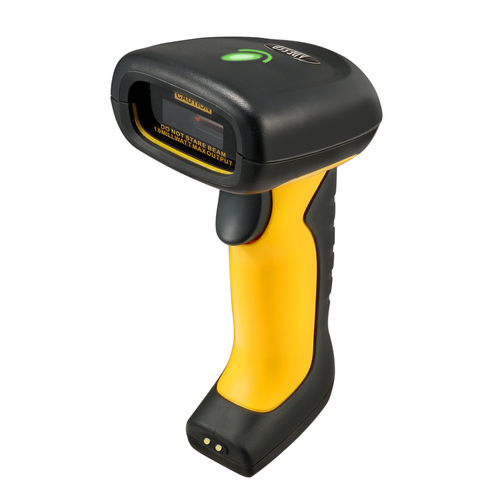

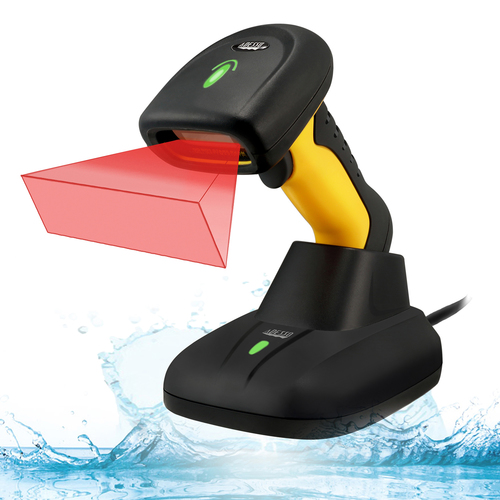

Adesso NuScan 5200TR Wireless 1D/2D 640x480 pixels Handheld barcode Scanner - SCNR-115
Many businesses struggle with scanners that cannot read damaged labels or that stop working when they get wet or dropped. When a scanner fails, workers lose time and customers get frustrated. The NuScan 5200TR solves this by offering a rugged, waterproof design that reads every barcode even in bright sunlight. Its wireless 2400 MHz connection lets you scan from anywhere in the store without a cable, and the high-resolution 640 x 480 sensor captures clear images for reliable decoding.
Key Features
- Supports 1D barcodes such as Code 128, EAN-13, UPC-A and many more.
- Reads 2D codes including QR, Data Matrix, PDF417 and Micro QR.
- CMOS sensor with 640 x 480 pixel resolution for clear image capture.
- Wireless RF connection at 2400 MHz for reliable data transfer.
- IP67 rating - fully waterproof and dust-proof.
- Shock-resistant housing made of plastic and silicone.
- Battery powered, 5 V input, 220 mA consumption for long work shifts.
- LED indicators and audible buzzer give instant scan confirmation.
- Compatible with Windows, macOS and major point-of-sale software.
Specifications
| Scanning |
| Motion tolerance (cm/s) |
60.96 |
| Maximum scan width |
0.254 mm |
| Yaw reading angle |
-360 - 360° |
| Pitch reading angle |
-45 - 45° |
| Tilt reading angle |
-50 - 50° |
| Wavelength |
650 nm |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Working distance |
30 cm |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| 2D (matrix & stacked) barcodes supported |
Data Matrix, Micro QR Code, PDF417, QR Code |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), MSI, Plessey, UPC-A, UPC-E |
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Cable length |
1.83 m |
| Operating frequency |
2400 MHz |
| Standard interfaces |
RF Wireless |
| Connectivity technology |
Wireless |
| Performance |
| Certification |
FCC, CE |
| Country of origin |
China |
| Buzzer |
Yes |
| LED indicators |
Yes |
| Protection features |
Shock resistant, Waterproof |
| International Protection (IP) code |
IP67 |
| Housing material |
Plastic, Silicone |
| Product colour |
Black, Yellow |
| Power |
| Power consumption |
220 mA |
| Input voltage |
5 V |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
160 g |
| Height |
175 mm |
| Depth |
100 mm |
| Width |
72 mm |
| Packaging data |
| Package weight |
907 g |
| Package height |
114.3 mm |
| Package depth |
182.8 mm |
| Package width |
266.7 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Other features |
| Compatible operating systems |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X |
