Are you tired of using slow and outdated computers that cannot handle your demanding tasks? Look no further than the ADLINK ADM-AL30, Intel Core i9, NVIDIA RTX 4000 SFF Industrial BOX PC. This powerful computer is designed to handle even the most demanding tasks with ease, making it perfect for use in a variety of industries. With its fast processing speed and high-quality graphics, you will be able to complete tasks quickly and efficiently. Many buyers face the problem of slow computers that cannot handle their workload, but with the ADLINK ADM-AL30, you will have a computer that can keep up with your demands.

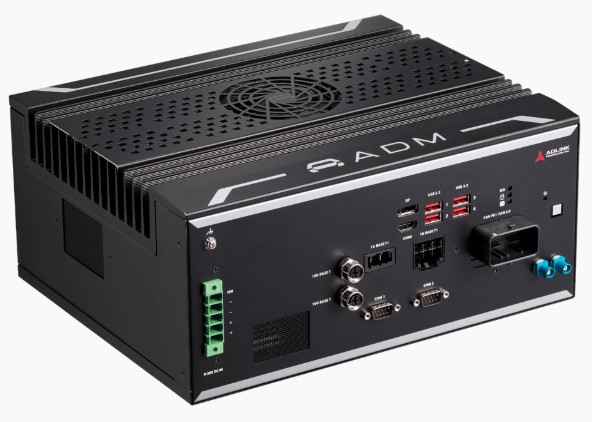

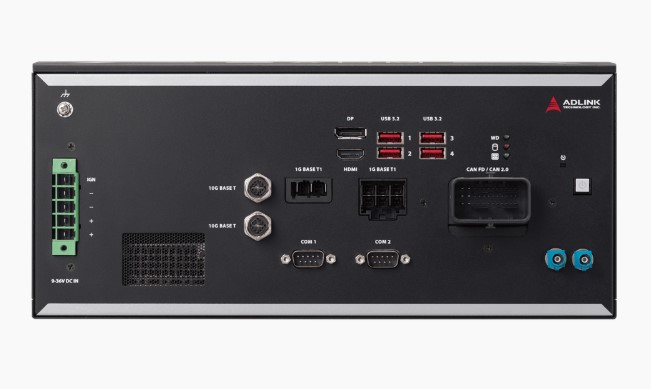

ADLINK ADM-AL30, Intel Core i9, NVIDIA RTX 4000 SFF Industrial BOX PC
The ADLINK ADM-AL30 solves the problem of slow processing speed and low-quality graphics. This problem matters to users because it can cause delays and inefficiencies in their work. The ADLINK ADM-AL30 provides a clear solution by offering a fast Intel Core i9 processor and a high-quality NVIDIA RTX 4000 graphics card. This means that users will be able to complete tasks quickly and efficiently, without having to worry about their computer slowing them down. With the ADLINK ADM-AL30, you will have a computer that can handle even the most demanding tasks with ease.
Key Features
- Intel Core i9 processor
- NVIDIA RTX 4000 graphics card
- 4x 32 GB DDR5 SO-DIMM, up to 128 GB, dual-channel ECC
- 1x 512 GB M.2 2280 NVMe SSD; 1x 2 TB 2.5" SATA SSD
- 1x HDMI; 1x DisplayPort (DP)
- 2x 10G BASE-T (M12 connector); 8x 1G Base-T1 (TE MATEnet connector)
- 4x CAN 2.0 (Molex CMC connector); 8x CAN FD (optional, Molex CMC connector)
- 4x USB 3.2 Gen2 Type-A
- 2x RS-232
- 1x Power On/Off button
- 1x Hardware reset button
Specifications
| System |
|
| Core CPU |
Intel® 12th Gen Core™ i9 processor |
| GPU |
1× NVIDIA RTX 4000 SFF Ada |
| Memory |
4× 32 GB DDR5 SO-DIMM, up to 128 GB, dual-channel ECC |
| Storage |
1× 512 GB M.2 2280 NVMe SSD; 1× 2 TB 2.5" SATA SSD |
| I/O Ports |
|
| Display |
1× HDMI; 1× DisplayPort (DP) |
| Ethernet |
2× 10G BASE-T (M12 connector); 8× 1G Base-T1 (TE MATEnet connector) |
| CAN |
4× CAN 2.0 (Molex CMC connector); 8× CAN FD (optional, Molex CMC connector) |
| USB 3.0 |
4× USB 3.2 Gen2 Type-A |
| Serial Port |
2× RS-232 |
| Extension Slot |
|
| M.2 |
1× M.2 2230 E-Key, PCIe Gen3 x1 (for WiFi/BT module); 2× M.2 2280 M-Key,
PCIe Gen3 x2 (for optional CAN FD modules)
|
| Power Requirements |
|
| DC Power Input |
9–36 VDC |
| Ignition Control |
Built-in ignition power control |
| AC/DC Power Adapter |
450 W adapter (optional) |
| Power Button |
1× Power On/Off button |
| Fail Reset |
1× Hardware reset button |
| Mechanical |
|
| Dimensions |
325 mm × 258 mm × 145 mm |
| IP Rating |
IP20 |
| Environmental |
|
| Operating Temperature |
-20°C to 60°C (without GPGPU card); 0°C to 45°C (with GPGPU card) |
| Operating Humidity |
Up to 95% RH @ 40°C (non-condensing) |
| Storage Temperature |
-40°C to 85°C |
| Vibration |
3 Grms, random, 5–500 Hz, 3 axes / 1 hr (with SSD); 5 Grms, random,
5–500 Hz, 3 axes / 30 min (with SSD)
|
| Shock |
50 G, half-sine, 11 ms duration (with SSD) |
| ESD |
Contact: ±4 kV; Air: ±8 kV |
| EMC |
CE/FCC Class A; EN 55032/35; ISO 7637-2:2011 Level 3; E-Mark; RCM |
| Design Compliance |
ISO 16750-2 |
| Software |
|
| Operating System |
Ubuntu 22.04.03 supported |
| TPM |
TPM 2.0 |
