Are you tired of using industrial computers that are loud, bulky, and unreliable? Look no further than the ADLINK AVA-1000, Intel Atom x7433RE, 8GB/64GB Fanless Industrial PC. This powerful and compact computer is designed to meet the demands of industrial applications, providing a reliable and efficient solution for a wide range of uses. With its fanless design, the ADLINK AVA-1000 is perfect for applications where noise and dust are a concern. Whether you're working in a factory, warehouse, or other industrial setting, this computer is sure to meet your needs.

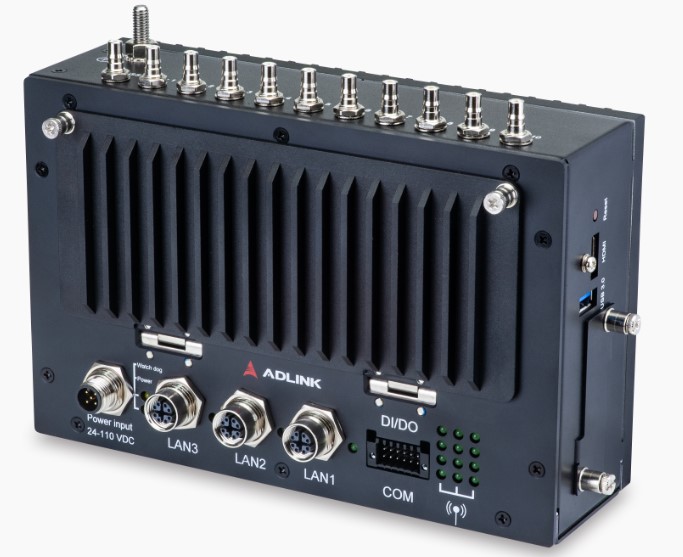

ADLINK AVA-1000, Intel Atom x7433RE, 8GB/64GB Fanless Industrial PC
The ADLINK AVA-1000 solves the problem of unreliable and inefficient industrial computers. This problem matters to users because it can cause downtime, decrease productivity, and increase maintenance costs. The ADLINK AVA-1000 provides a clear solution by offering a compact, fanless, and reliable computer that can withstand the demands of industrial applications. With its powerful Intel Atom x7433RE processor and 8GB of RAM, this computer can handle even the most demanding tasks with ease.
Key Features
- Intel Atom x7433RE processor with 8GB of RAM and 64GB of storage
- Fanless design for quiet and reliable operation
- Compact and rugged design with a durable aluminum heatsink
- Easy to install and maintain with its simple and intuitive design
- Low power consumption and long lifespan for a cost-effective solution
- Supports a wide range of operating systems, including Ubuntu Linux
- Multiple connectivity options, including Ethernet, USB, and HDMI
- Supports multiple displays with its HDMI and VGA ports
- Reliable and efficient performance with its advanced cooling system
- Meets the demands of industrial applications with its rugged and durable design
- Compliant with multiple safety and regulatory standards, including EN50155 and EN45545-2
Specifications
| General |
|
| Model |
AVA-1000/x7433RE/8G/64G,CC |
| System |
SMARTEC Processor; Intel Atom® x7433RE Quad-Core 1.5 GHz, Burst up to 3.4 GHz |
| Memory |
LPDDR5 8 GByte soldered by default |
| eMMC |
64 GB by default |
| BIOS |
AMI® Aptio V |
| Ethernet |
3 × 1GbE via i.MX 2-codec |
| DI/DO |
4 DI/4 DO in 1×2×6 terminal block |
| COM |
RS-232/422/485 in 1×2×6 terminal block; RS-485 |
| Display |
1 × HDMI 1.4; 1920 × 1080 @ 60 Hz |
| USB 3.0 |
1 × USB 3.1 Gen1 5G Type A |
| Reserved IO |
I²C, CAN reserved upon request |
| ARM Maintenance |
– |
| Storage |
|
| Storage |
64 GB eMMC |
| Storage Expansion |
1 × M.2-22342 M Key with PCIe Gen3 PCIe/NVMe only |
| Connectivity |
|
| Connectivity |
2 × M.2-3042/3052 B Key (USB 3.0 + USB 2.0) for 5G/LTE |
| Connectivity |
1 × M.2-2230 E Key (PCIe Gen3/USB 2) for WiFi and BT |
| GNSS |
GNSS receiver supporting GPS, Galileo, GLONASS, BeiDou (NEO-M9N-00B) |
| QMA |
6 × antenna QMA cut-out for LTE; 4 × antenna QMA cut-out for WiFi; 1 × antenna QMA cut-out for GNSS |
| SIM |
4 × Nano SIM card on RF board; 2 × SIM per one 5G modem |
| Miscellaneous |
|
| Indicator LEDs |
1 × Power/Reset LED (Green); 1 × Watchdog LED (Yellow); 3 × Ethernet Link LEDs (Green);
12 × User-defined LEDs (Green)
|
| Reset Button |
1 × Reset button |
| TPM |
TPM 2.0 |
| Power Input |
M12 A-coded support 24V to 110V DC nominal (EN50155); 10 ms hold-up time
(acc. EN50155, class S2, C1); Ignition support
|
| Power Consumption |
34.8 W by 24VDC input (full loading) |
| Mechanical |
|
| Model |
AVA-1000/x7433RE/8G/64G,CC |
| Material |
Aluminium heatsink |
| Cooling |
Passive cooling; Fan-less design; Suggested airflow 0.6 m/s |
| Grounding Screw |
M6 20 mm stud |
| Mounting |
Wall mount |
| Ingress Protection |
EN60529 IP40 |
| Dimensions |
L: 220 mm; W: 130 mm; H: 72.3 mm |
| Net Weight |
2.025 kg with 2× modem, 1× WiFi, 1× NVMe modules |
| MTBF |
220,051 hrs. by Telcordia Issue 4, GB, GC |
| PCB Coating |
Conformal coating on AVA-1000 boards applied by default; coating on add-on cards available upon request |
| CMOS Battery |
MuRata CR2032 battery by default |
| Software |
|
| BIOS |
AMI® Aptio V UEFI BIOS |
| Operating System |
Ubuntu Linux 22.04 |
| Watchdog |
1–255 sec. system reset |
| Environment |
|
| Operating Temperature |
Depending on SMARC module selection: -40°C to +70°C, +85°C for 10 min (-40°F to 158°F, 185°F for 10 min),
acc. EN50155, class OT4, ST1
|
| Storage Temperature |
-40°C to +85°C |
| Humidity |
+25°C to +55°C, 95% (acc. EN50155) |
| EMC |
|
| EMC |
EN 50155:2021 Clause 13.4.9; EN 50121-3-2; ETSI EN 301 489-1 V2.2.3 (2019-11),
Class A; ETSI EN 301 489-19 V2.1.1 (2022-09)
|
| Safety |
|
| Rolling Stock |
BS EN50155:2021 |
| Fire Protection |
EN45545-2:2013+A1:2015 (HL1–3) EL9 for PCB (R24/R25); Excluding connector |
