In today's fast-paced industrial world, companies are looking for ways to improve their operations and make them more efficient. One of the biggest challenges they face is processing large amounts of data in real-time. This is where the ADLINK AVA-RAGX comes in, a powerful industrial AI PC that can handle complex tasks with ease. The problem of slow data processing can be frustrating and costly, but with the ADLINK AVA-RAGX, companies can now process data quickly and make informed decisions. This product gives a clear solution to the problem by providing a fast and reliable way to process data, making it an essential tool for any industrial company.

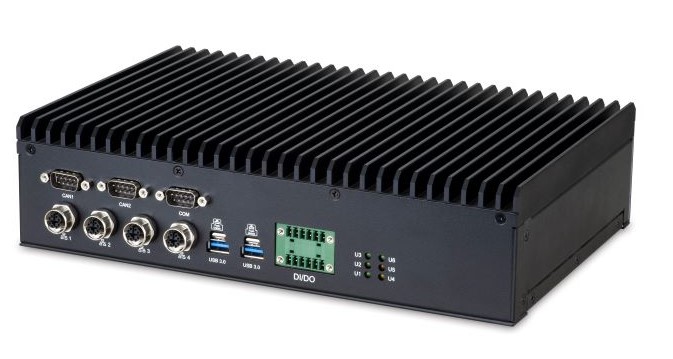

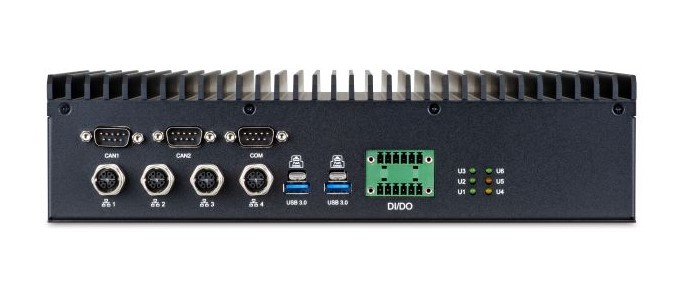

ADLINK AVA-RAGX, NVIDIA Jetson AGX Xavier, 32GB/64GB Fanless Industrial AI PC with ADLINK
Imagine having a powerful computer that can handle even the most complex industrial tasks with ease. The ADLINK AVA-RAGX is just that, a fanless industrial AI PC that is powered by the NVIDIA Jetson AGX Xavier module. This product is designed to provide a reliable and efficient way to process data, making it an essential tool for any industrial company. With its powerful processor and ample storage, the ADLINK AVA-RAGX can handle tasks such as machine learning, computer vision, and data analytics with ease. Many companies struggle with slow data processing, but with the ADLINK AVA-RAGX, they can now process data quickly and make informed decisions.
Key Features
- Powered by NVIDIA Jetson AGX Xavier module
- 32GB or 64GB of storage
- Fanless design for improved reliability
- 4x Gigabit Ethernet ports
- 2x USB 3.0 ports
- 1x HDMI 2.0 port
- 1x MicroSD slot
- 1x SIM slot
- 6x RP-SMA antenna connectors
- Support for Ubuntu 18.04 operating system
- Wall mount and DIN rail mounting options
Specifications
| Model |
ADLINK AVA-RAGXI/NPOE,CC |
| System on Module |
NVIDIA Jetson AGX Xavier Industrial (100 × 87 mm) |
| Processor |
8-core NVIDIA Carmel ARM® v8.2 64-bit CPU (4× dual-core), up to 2.03 GHz |
| Cache |
8 MB L2 + 4 MB L3 |
| GPU |
512-core NVIDIA Volta GPU with 64 Tensor Cores, up to 1.21 GHz |
| Memory |
64 GB eMMC on module |
| Storage |
64 GB eMMC on module |
| Ethernet |
4 × Gigabit Ethernet (M12 female X-coded), No PoE |
| USB (Front) |
2 × USB 3.0 (locking connectors) |
| USB (Rear) |
1 × USB 2.0 OTG, 2 × USB 3.0 |
| Serial Ports |
1 × DB-9 RS-232/422/485 |
| CAN |
2 × DB-9 CAN-FD (isolated) |
| Digital I/O |
4 × DI / 4 × DO (isolated) |
| Display Output |
1 × HDMI 2.0 (locking connector) |
| MicroSD |
1 × MicroSD slot |
| SIM Slot |
1 × External Mini-SIM (2FF) |
| RF Antenna Connectors |
6 × RP-SMA (4 + 2) |
| Storage Expansion |
1 × M.2 M-Key (PCIe Gen3 x4) |
| Cellular Expansion |
1 × M.2 B-Key 3042/3052 (LTE/5G) |
| Wireless Expansion |
1 × M.2 A/E Key 2230 (Wi-Fi/Bluetooth) |
| TPM |
TPM 2.0 |
| RTC |
Real-Time Clock with golden-cap backup |
| Power Buttons |
Power, Reset, Recovery |
| Power Input |
16.8–137.5 VDC (24/36/72/110 VDC nominal), EN50155 compliant |
| Ignition Control |
Supported |
| Power Consumption |
<160 W (100% GPU load) |
| Grounding |
M6 protective grounding stud |
| Operating System |
Ubuntu 18.04 |
| Mounting |
Wall Mount, DIN Rail |
| Dimensions (W × D × H) |
287.7 × 190 × 78.3 mm |
| IP Rating |
IP20 |
| Weight |
4.825 kg |
| Operating Temperature |
-25°C to +70°C (up to +85°C for 10 min, EN50155 OT3 ST1) |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
10–95% RH (non-condensing) |
| Storage Humidity |
5–95% RH (non-condensing) |
| Railway Compliance |
EN50155:2017 |
| EMC/Safety |
EN50121, EN61000, EN50124-1 |
| Fire Protection |
EN45545-2:2013+A1:2015 (HL1–HL3) |
| LED Indicators |
1 × Power LED, 6 × User-defined LEDs |
| MTBF |
218,125 hours @ 40°C (Telcordia Issue 4) |
| Conformal Coating |
Yes (HumiSeal 1B73 acrylic coating, both sides of all PCBs) |
