Name: ADLINK PCIe-7396 96-CH High Driving DIO Card
SKU: MTHO-487
Price: 498.99 USD
Availability: InStock

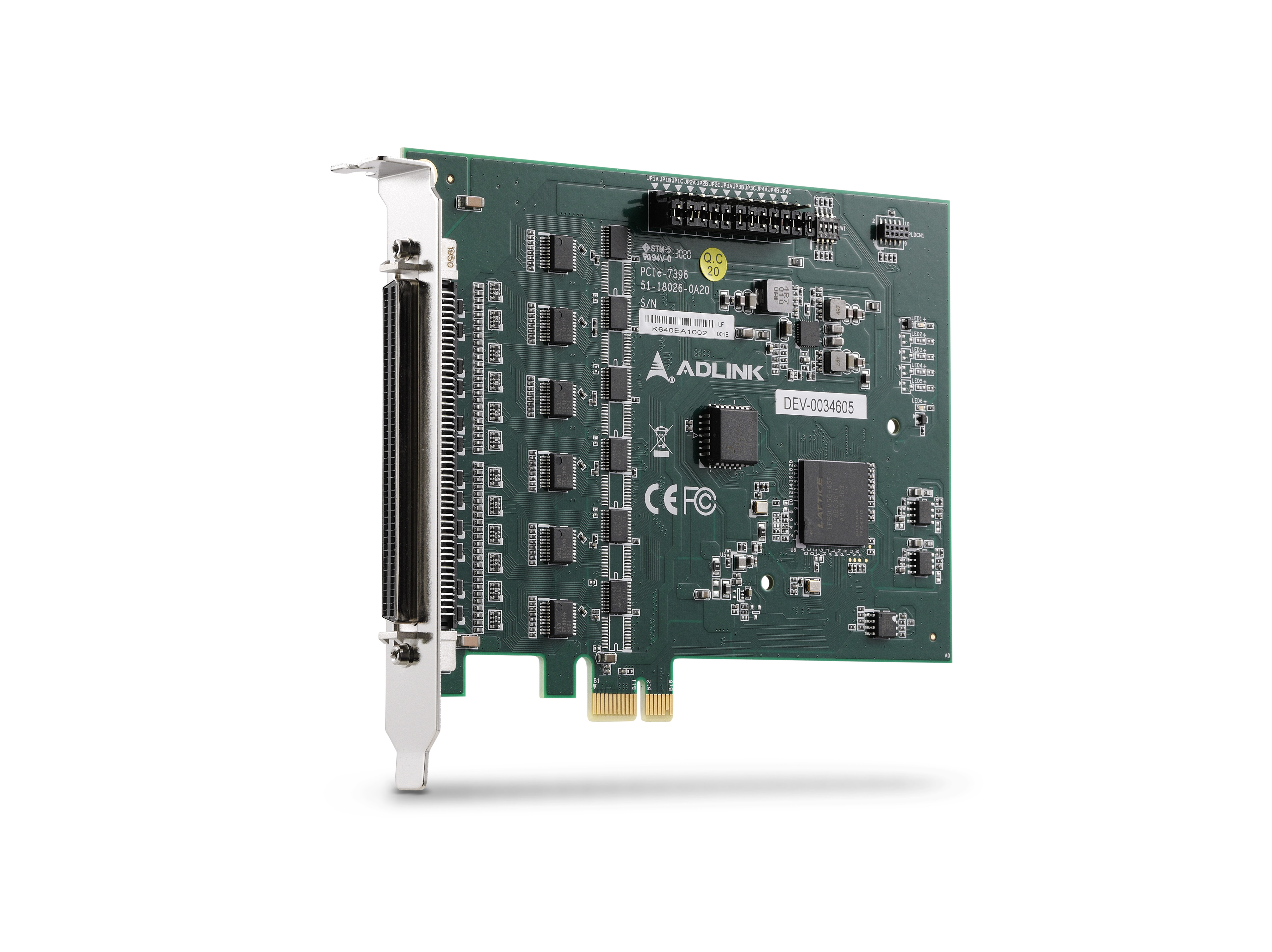

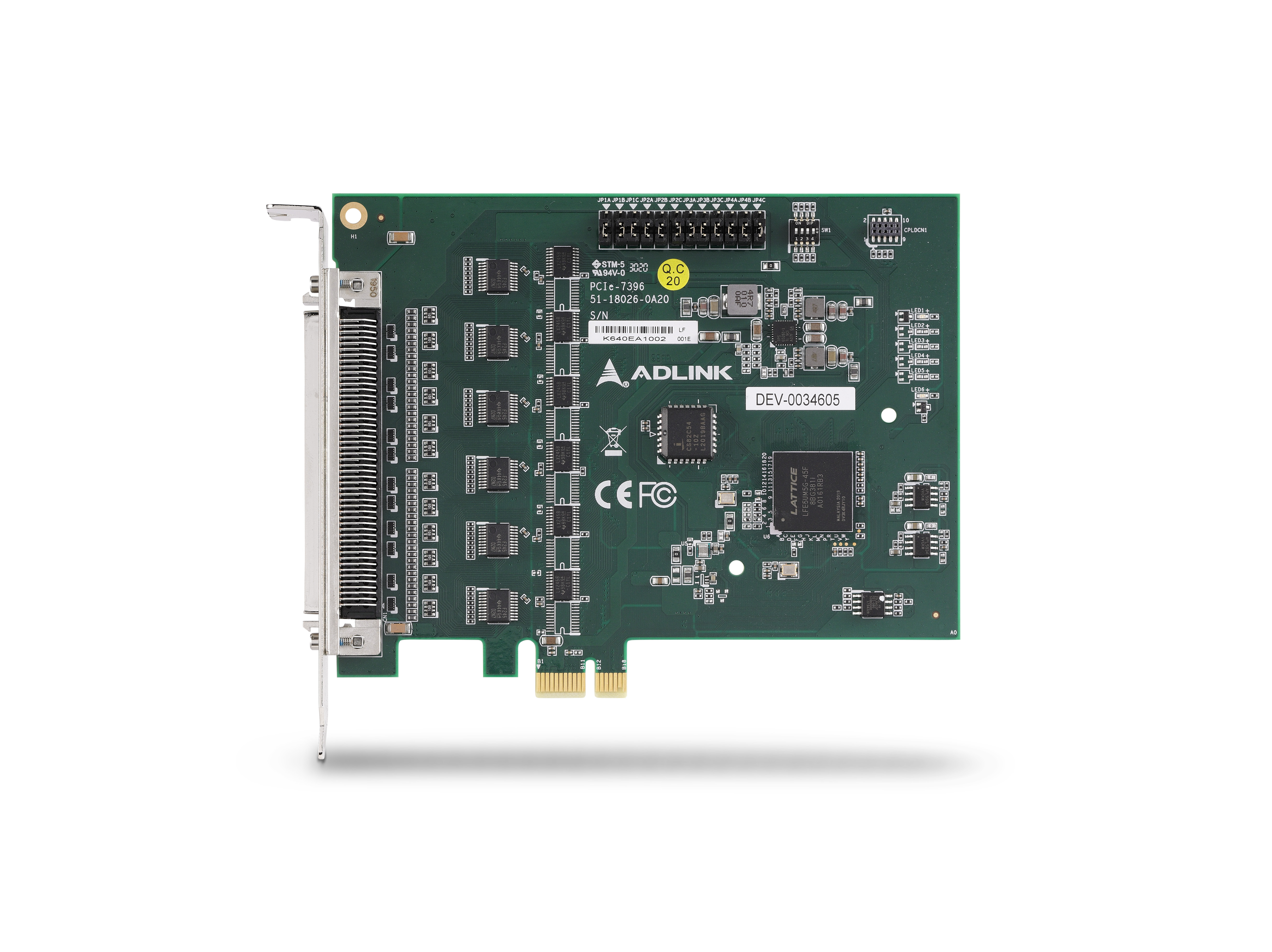

ADLINK PCIe-7396 96-CH High Driving DIO Card

UK Free Shipping

Model	PCIe‑7396
Digital I/O Channels	96 input/output channels
Logic Compatibility	5 V TTL digital logic
Bus Interface	PCI Express (32‑bit, 5 V)
Port Configuration	Each port independently configurable as input or output
Output Status	Read‑back supported
Digital Logic Levels – Input	High: 2.0 V to 5.25 VLow: 0 V to 0.8 V
Digital Logic Levels – Output	High: ≥2.4 VLow: ≤0.5 V
Output Drive Capability	Source current: 15 mA, Sink current: 48 mA
Data Transfer	Programmed I/O
Interrupts	COS (Change‑of‑State), 16‑bit event counter, 32‑bit timer, multiple programmable interrupts
Timer/Counter	Onboard 8254 timer/counter
Interrupt Sources	Interrupt #0: P1C0, P1C3, 16‑bit counter, COS detectionInterrupt #1: P2C0, P2C3, 32‑bit timer, COS detection
Connector	1× 100‑pin SCSI‑II female
Operating Temperature	0 °C to 60 °C
Storage Temperature	-20 °C to 80 °C
Humidity	5 % to 95 %, non‑condensing
Power Requirements	+5 V DC @ ~450 mA typical
Dimensions	~138.96 mm × 98.4 mm (excluding connectors)
