ADLINK USB-7250 Isolated USB Digital I/O Modules
ADLINK USB-7250 Isolated USB Digital I/O Modules
ADLINK USB-7250 Isolated USB Digital I/O Modules
ADLINK USB-7250 Isolated USB Digital I/O Modules

ADLINK USB-7250 Isolated USB Digital I/O Modules

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: INDM-023

MPN #: USB-7250

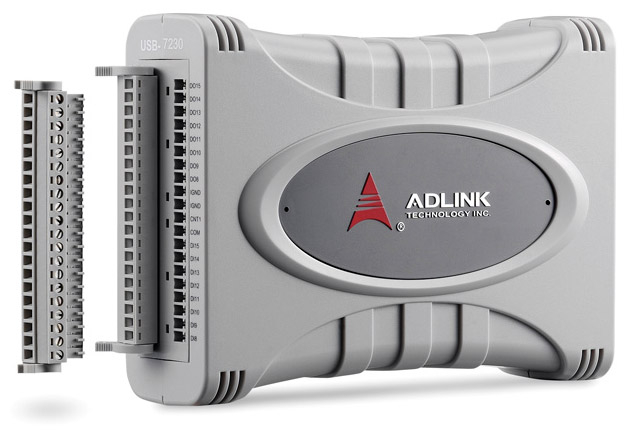

ADLINK Technology USB-7230/7250 Isolated USB I/O Modules



ADLINK USB-7230/7250 Isolated USB I/O Modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS. The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters. The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters. The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.

The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection. High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops. U-Test, a free ready-to-use testing program is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming required.





Features



  • USB 2.0, USB bus-powered
  • Programmable digital filter removes unexpected glitches from input channels
  • Programmable DO/Relay initial status
  • Up to 2500VRMS isolation voltage
  • Removable screw terminal on the module
  • Lockable USB cable for strong connectivity
  • Ready-to-use testing application (U-Test) provided





Specifications:
Product Name USB-7250
Manufacturer ADLINK Technology
Product Type USB Digital I/O Module / USB DAQ Module
Interface USB 2.0
Power Supply USB bus-powered (5V)
Digital Input Channels 8-CH isolated digital input
Digital Output Channels 8-CH relay output (4 Form C, 4 Form A)
Frequency/Event Counters 2-CH counters
Isolation Voltage Up to 2500 VRMS
Relay Switching Power 60 W, 125 VA
Max Switching Voltage 220 V DC / 250 V AC
Max Switching Current 2 A
Contact Rating 30 VDC 2A, 110 VDC 0.3A, 125 VAC 0.5A
Relay Operating Time 2 ms
Relay Release Time 1 ms
Input Type Optical isolated input
Logic Level 5–24 V input or dry contact
Mounting Desktop, DIN rail, or wall mount
Connector Type Removable screw terminals
Software Support U-Test utility
Driver Support LabVIEW, MATLAB, C/C++, Visual Studio .NET
Operating System Windows 7/8/10, Linux
Applications Industrial I/O control, automation, monitoring, data acquisition
