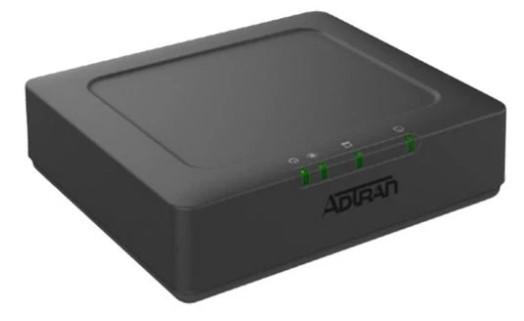

Adtran SDX 621, 10GE XGS-PON Optical Network Terminal (ONT)
Adtran SDX 621 is a 10G XGS-PON Single Family Unit Optical Network Terminal designed to provide high-speed optical broadband connectivity for residential access environments. It supports symmetric 10 Gbps throughput and provides a 10G Ethernet interface for flexible high-speed network connectivity.
The SDX 621 features one 10G UNI through an RJ-45 interface supporting 100M/1/2.5/5/10G Base-T connectivity. Auto negotiation or manual configuration provides Ethernet deployment flexibility, while automatic MDI/MDIX sensing simplifies connection setup for compatible network devices.
Advanced Ethernet service capabilities include 802.1D bridging, 802.1x authentication, VLAN tagging and detagging, Q-in-Q and VLAN translation, and configurable EtherType and TPID. Eight hardware priority queues with strict priority and/or weighted fair queue scheduling support Class of Service requirements for managed Ethernet services.
The XGS-PON ONT supports DHCP client or static IP configuration, 9k jumbo frames, and 802.1q-based virtual switching. Video service support includes Mediaroom and Minerva bridged video models as well as IGMP v2/v3 snooping, making the SDX 621 suitable for broadband and managed video service deployments.
Built around an XGS-PON optical interface with BOSA on Board, the Adtran SDX 621 complies with ITU-T G.9807 XGS-PON standards and supports Class B+ and Class G XGS-PON optics. Dynamic Bandwidth Allocation, OMCI management, rolling counters, dying gasp alarm, and Power, LAN, Optical, and Voice LEDs provide operational and monitoring capabilities for access network deployments.
Key Features
-
10G XGS-PON Single Family Unit ONT
-
Symmetric 10 Gbps throughput
-
1 × 10G UNI with RJ-45 100M/1/2.5/5/10G Base-T
-
802.1D bridging and 802.1x authentication
-
Q-in-Q and VLAN translation support
-
9k jumbo frame support
-
ITU-T G.9807 XGS-PON compliant
-
OMCI and Dynamic Bandwidth Allocation support
Specifications:
| Product |
ADTRAN 621 Single Family Unit ONT |
| Part Number |
1287830F1 |
| Access Technology |
XGS-PON |
| ONT Type |
10G XGS-PON Single Family Unit ONT |
| 10G UNI |
1 |
| 10G Ethernet Interface |
RJ-45 for 100M/1/2.5/5/10G Base-T |
| Symmetric Throughput |
10 Gbps |
| Ethernet Port Configuration |
Auto Negotiation or Manual Configuration |
| MDI/MDIX |
Automatically Sense |
| Hardware Priority Queues |
On the Downstream Direction in Support of CoS |
| Ethernet Services Support |
802.1D Bridging |
| Authentication |
802.1x Authentication |
| Queues |
Eight Queues, Strict Priority and/or Weighted Fair Queue Schedulers |
| EtherType / TPID |
Configurable to EtherType and TPID for Service Flexibility |
| VLAN IDs |
0 – 4095 |
| EVC |
Configurable in the Range of 2 – 4,094 |
| Virtual Switch |
Based on 802.1q VLAN |
| VLAN Tagging/Detagging |
Supported |
| VLAN Stacking |
Q-in-Q and VLAN Translation |
| Class of Service |
Based on VLAN-ID, 802.1p Bit |
| 802.1p |
Marking/Remarking |
| Jumbo Frame |
9k Jumbo Frame |
| IP Configuration |
DHCP Client or Static IP Configuration |
| Video Services Support |
Mediaroom Bridged Video Models; Minerva Bridged Video Models; IGMP v2/v3 Snooping |
| Mosaic Application Support |
Mosaic Activate; Mosaic Subscriber Insight |
| Working Temperature |
32° F to 104° F (0° C to +40° C) |
| Relative Humidity |
5% to 95%, Non-condensing |
| Network Interface |
XGS-PON Optical Interface BOSA on Board (BoB) |
| XGS-PON Standard |
Compliant With ITU-T G.9807 XGS-PON Standards |
| Optics Support |
Class B+ Optics Support; Class G (XGS-PON) Optics Support |
| DBA |
Dynamic Bandwidth Allocation |
| OAM |
OMCI (Embedded Operations Channel Interface) Per ITU-T G.988 and Open OMCI Standards |
| Counters |
15 Min Rolling Counters |
| Alarm |
Dying gasp alarm |
| LEDs |
Power, LAN, Optical, and Voice |
| Regulatory |
ETSI EN 300 019-1-3.cl3.2 (V2.3.2) for ONT and Power Supply; ETSI EN 300 119 for
ONT and Power Supply; ETS 300 753 for ONT and Power Supply; CISPR 32 Class B;
FCC CFR 47 Part 15 Class B
|
