Running a modern office or a small data center needs fast, reliable internet that can also power devices. When the network cannot keep up, users see lag, dropped video calls, and wasted time. Many businesses also struggle with extra power cords and limited outlet space. The Adtran SDX 631fh PoE-powered XGS-PON, 10GE Optical Network Terminal (ONT) gives you gigabit speeds and power over a single cable, fixing the slowdown and simplifying wiring.

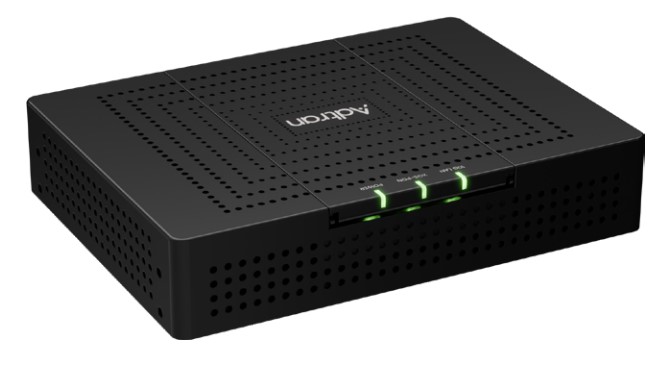

Adtran SDX 631fh PoE-powered XGS-PON, 10GE Optical Network Terminal (ONT) with Adtran
You need a device that turns fiber into high-speed Ethernet and also supplies PoE to cameras, phones, or access points. This ONT does exactly that. It follows the latest XGS-PON standards and delivers up to 10 Gbps symmetric bandwidth. If your service is slow or your power outlets are crowded, this unit solves both problems in one box. It also reduces the number of devices you have to manage, lowering maintenance costs.
Key Features
- XGS-PON optical interface with BOSA on Board (BoB)
- Single-fiber SC/APC connector for easy installation
- 9.9532 Gbps symmetric throughput
- 1577 nm downstream and 1270 nm upstream wavelengths
- IEEE 802.3af PoE support up to 15.4 W
- One RJ45 10 GE Base-T port with auto-negotiation
- Eight hardware priority queues and weighted fair scheduling
- VLAN stacking (Q-in-Q) and 802.1p marking
- OMCI management interface and Y.1731 performance monitoring
Specifications
| Network interfaces |
|
| XGS-PON optical interface |
BOSA on Board (BoB) |
| Connector |
Single-fiber SC/APC connector |
| Symmetric throughput |
9.9532Gbps |
| Wavelength |
1577nm downstream and 1270nm upstream |
| XGS-PON PMD standards |
Compliant with ITU-T G.9807.1 XGS-PON PMD standards |
| Forward Error Correction (FEC) |
Support |
| Advanced Encryption Standard (AES) |
Support |
| Split ratio |
Supports up to 1:128 split |
| Rogue ONU mitigation |
Supported |
| Ethernet interfaces |
|
| Ethernet port |
One RJ45 100M/1G/2.5G/5G/10G Base-T with PoE support |
| Ethernet port configuration |
Auto-negotiation or manual configuration |
| MDI/MDIX |
Automatically sense |
| Hardware priority queues |
On the downstream |
| Enhanced buffer management |
Supported |
| Ethernet loopback |
RFC2544 testing |
| Ethernet service support |
|
| Bridging |
802.1q (2018) bridges and bridge networks |
| VLAN Stacking |
802.1ad VLAN Stacking (Q-in-Q) and VLAN translation |
| 802.1p |
Bit marking/remarking |
| Class of Service |
Based on VLAN-ID |
| Queues |
Eight Queues, Strict Priority, and/or Weighted Fair Queue Schedulers |
| EtherType and TPID |
Configurable for service flexibility |
| VLAN IDs |
0 – 4095 |
| EVC |
Configurable in the range of 2 – 4,094 |
| Jumbo frame |
Supports 9k jumbo frame |
| Operations, administration and management |
|
| OMCI |
ITU-T G.988 OMCI embedded operations channel interface support |
| Y.1731 PM |
Hardware-based |
| Continuity Check (CC) |
Supported |
| Link Trace (LTM/LTR) |
Supported |
| Loopback (LBM/LBR) |
Supported |
| TR-471 NPT speedtest |
Support (roadmap) |
| Counters |
15 min rolling counters |
| Alarm |
Dying gasp alarm |
| Physical |
|
| Dimensions (D x W x H) |
176.0 mm x 130.0 mm x 35.0 mm |
| Weight |
350g |
| Mounting accessories |
Outdoor NID |
| Electrical |
|
| Power |
Power over Ethernet (PoE) powered device |
| PoE standard |
IEEE 802.3af compliant |
| Injector |
44 to 57VDC injector capable |
| Maximum power |
15.4 W max |
| Average power consumption |
5 W |
| Environmental |
|
| Operating temperature |
-40° F to +149° F (-40° C to +65° C) |
| Storage temperature |
-40° F to +185° F (-40° C to +85° C) |
| Relative humidity |
10 to 95%, non-condensing |
| LEDs |
|
| Power |
Supported |
| PON |
Supported |
| 10GE |
Supported |
| Video service support |
|
| Video service |
Mediaroom/Minerva vid |
