Advanced Energy ARTESYN 12V 200W DC-DC Converter

Name: Advanced Energy ARTESYN 12V 200W DC-DC Converter
SKU: PWRS-020
Price: 99.99 USD
Availability: InStock

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!

Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: PWRS-020

MPN #: AVO200-48S12B-6L

Description
Documents
Reviews

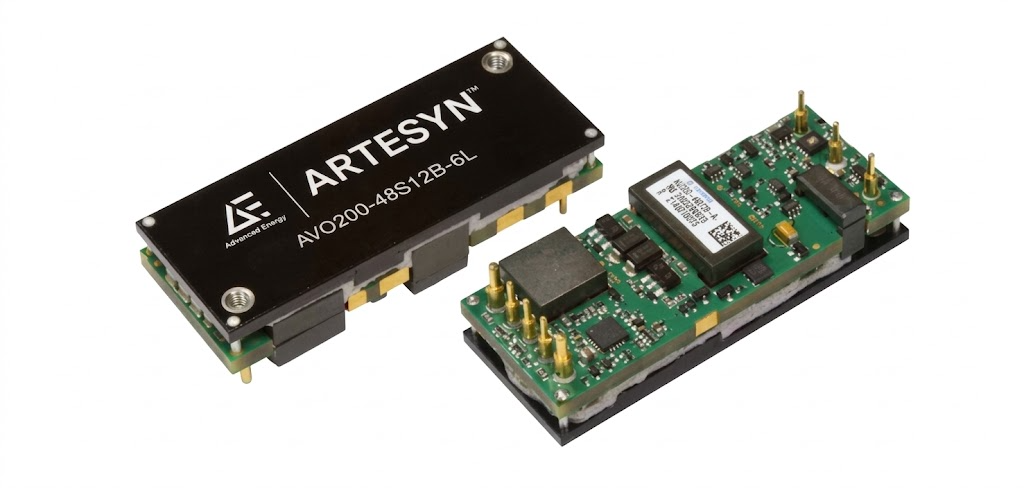

Advanced Energy ARTESYN 12V 200W DC-DC Converter

Advanced Energy's Artesyn AVO200 series of eighth-brick isolated DC-DC converters comprises two single output models offering fully regulated voltages of 5.0 V or 12 V. These converters are rated at 200 watts continuous power; the 5.0 V model can deliver up to 40 amps, while the 12 V model can deliver up to 16.7 amps. They have a wide 2:1 input range of 36 to 75 Vdc and are primarily designed for use with standard 48 V telecommunications equipment supplies. Typical applications include wireless, optical or access networks, as well as server and computing infrastructures.

Key Features

200 W continuous power
Ultra high efficiency up to 94.5%
Telecom DC input range
Base-plate optimised for contact cooling
Open frame optimised for air-cooling
Low ripple and noise
Fixed switching frequency
High capacitive load capability
Pre-bias start-up capability
Through hole and surface mount termination option
High reliability
RoHS-6 compliant
UL94 V-0 materials

Specification

Power (Watts)	200 W
Voltage - Isolation	1.5 kV
Series	AVO200 (200W)
Applications	ITE (Commercial)
Packaging	Bulk
Features	Adjustable Output, Baseplate
Part Status	Active
Operating Temperature	-40°C ~ 85°C
Type	Isolated Module
Efficiency	94%
Number of Outputs	1
Mounting Type	Through Hole
Voltage - Input (Min)	36V
Package / Case	Eighth Brick
Voltage - Input (Max)	75V
Size / Dimension	2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm)
Voltage - Output 1	12V
Current - Output (Max)	16.7A
