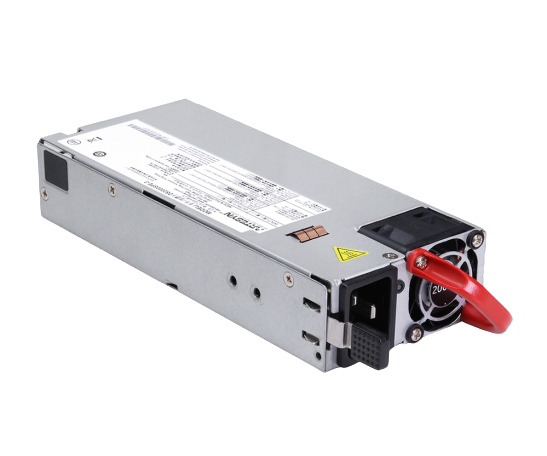

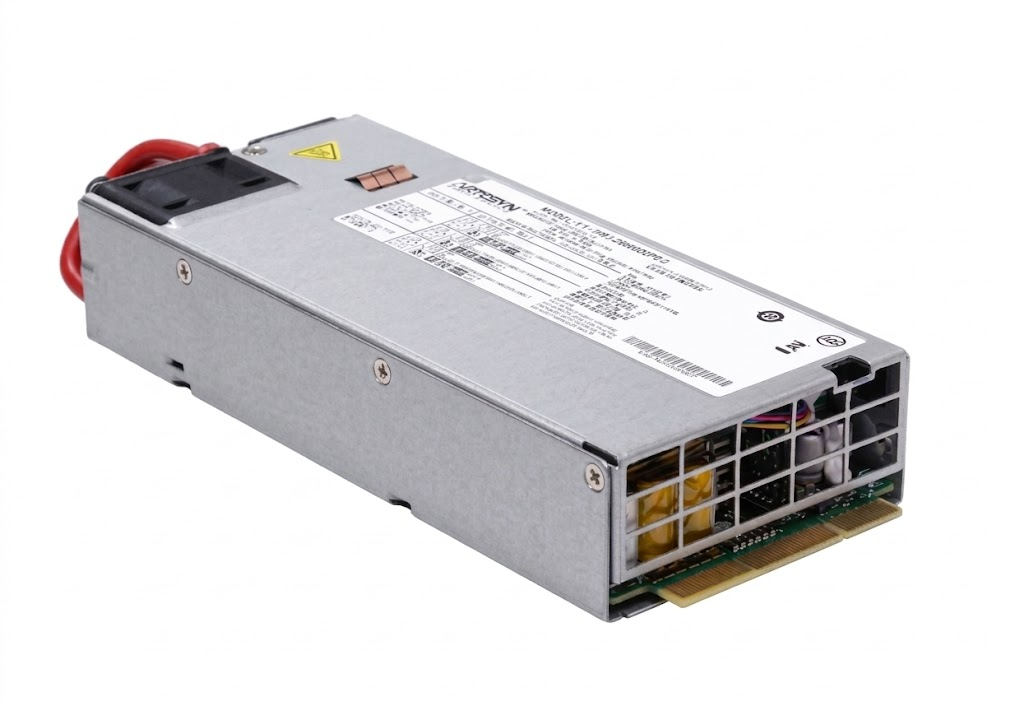

Advanced Energy ARTESYN DS2000SPE-3 SERIES 2000 Watt Power Supply
Advanced Energy's Artesyn DS2000SPE-3 is an ultra-high density power supply providing 50W per cubic in. The 2000 watts DS2000SPE power supply is housed in 1U high rack-mounting enclosures measuring just 3.4 x 7.7 in (86.3 x 196.5 mm). This form factor is significantly shorter than that of similarly rated earliergeneration power supplies — freeing up valuable system space and is achieved by use of the latest power switching technology and high density component packaging techniques.
Key Features
• 2000W output power at high line
• 1U power supply
• High power and short form factor
• High density design: 50W/in3
• Active power factor correction
• EN61000-3-2 harmonic compliance
• Inrush current control
• 80PLUS® Platinum efficiency
• N+N, N+1 redundant
• Hot-pluggable
• Active current sharing
• Two-year warranty
• PMBusTM compliant
Specifications
| Output Power |
2000W at high line |
|
Form Factor
|
1U |
| Power Factor Correction |
Active |
| Harmonic Compliance |
EN61000-3-2 |
| Inrush Current Control |
Yes |
| Efficiency |
80PLUS® Platinum |
| Redundancy |
N+N, N+1 |
| Hot-Pluggable |
Yes |
| Current Sharing |
Active |
| Warranty |
Two years |
| PMBus Compliance |
Yes |
| Safety Standard |
UL/cUL62368 |
| Safety Certification |
TUV+CB Report EN62368 |
| Safety Standard |
EN62368 |
| Certification |
CE Mark, UKCA Mark |
| Typical Application |
Industrial |
