Struggling with tablets that die in dusty warehouses or crack under a single drop? The Advantech AIM‑68 is built to survive harsh industrial environments while keeping you productive.

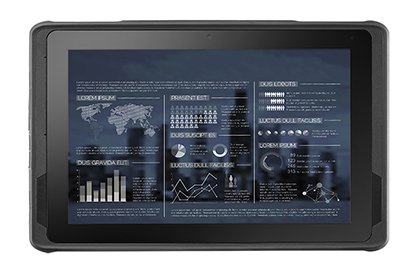

Advantech AIM-68,10.1 Inch, 4GB/64GB, Android 6.0, Black, Rugged Tablet
This 10.1‑inch slate combines a Full HD Gorilla Glass display with a projected‑capacitive touchscreen, so you get crystal‑clear images and responsive multi‑touch even when wearing gloves. Powered by an Intel Atom x7‑Z8750 processor, the tablet delivers up to 2.56 GHz burst speed, 4 GB LPDDR3 memory and 64 GB eMMC storage, giving you smooth Android 6.0 performance for data capture, inventory apps, and field diagnostics.
The device is sealed to IP65, meaning it resists water jets and dust ingress. With a rugged chassis weighing just 980 g, it survives 20 G operational shocks and 50 G non‑operational drops. The built‑in 26 Wh battery provides up to 5.5 hours of continuous use, and a quick 3‑hour recharge keeps you on the floor without long downtime.
Connectivity is comprehensive: Wi‑Fi 5 (802.11ac), Bluetooth 4.1, NFC, Ethernet LAN, and dual microphones with stereo speakers for clear voice commands and video calls. The tablet also offers a micro‑HDMI, mini‑VGA, USB‑C/Type‑A, and a 3.5 mm combo headphone/mic jack, so you can attach barcode scanners, printers, or external displays as needed.
Two cameras round out the feature set. A 5 MP rear sensor with LED flash and auto‑focus captures detailed images of equipment or parts, while a 2 MP front camera supports video conferencing and remote assistance. All of this runs on Android 6.0, giving you access to thousands of industrial‑grade apps from the Play Store.
Benefits
With the AIM‑68 you gain a single device that replaces fragile consumer tablets, rugged handheld computers, and separate data‑capture tools. Its durable design reduces replacement costs, while the powerful processor and ample storage let you run multiple apps without lag. The long battery life and fast charging keep you working through shifts, and the extensive I/O options let you customize the tablet for any workflow.
Features
- 10.1" Full HD Gorilla Glass display
- Intel Atom x7‑Z8750 2.56 GHz processor
- 4 GB LPDDR3 RAM, 64 GB eMMC storage
- IP65 dust and water resistance
- Wi‑Fi 5, Bluetooth 4.1, NFC, Ethernet
- Dual cameras with LED flash
- Micro‑HDMI, mini‑VGA, USB‑C/Type‑A ports
- 5.5 hour battery, 3 hour recharge
Usage
Deploy the AIM‑68 in warehouses, manufacturing lines, or field service routes where temperature swings from –10 °C to 50 °C and humidity reaches 90 %. The tablet’s proximity sensor and electronic compass aid in hands‑free operation, while the secure boot and Intel Identity Protection keep your data safe. Whether you are scanning barcodes, reviewing schematics, or conducting remote video support, the rugged tablet delivers reliable performance without the need for additional protective cases.
Specifications
| Display |
| HD type |
Full HD |
| Touchscreen type |
Projected Capacitive (PCAP) |
| Touch technology |
Multi-touch |
| Display glass type |
Gorilla Glass |
| Display brightness |
380 cd/m² |
| Display technology |
LCD |
| Display resolution |
1200 x 1920 pixels |
| Display diagonal |
25.6 cm (10.1") |
| Processor |
| Conflict-Free processor |
Yes |
| Number of execution units |
16 |
| PCI Express configurations |
2x1, 1x2 |
| Processor code |
SR2KG |
| Processor codename |
Cherry Trail |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor package size |
17 x 17 mm |
| Processor series |
Intel Atom x7 Series |
| Scenario Design Power (SDP) |
2 W |
| Tjunction |
90 °C |
| Processor cache type |
L3 |
| Processor cache |
2 MB |
| Processor frequency |
1.6 GHz |
| Processor boost frequency |
2.56 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
x7-Z8750 |
| Processor family |
Intel Atom® |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
LPDDR3-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Storage media |
eMMC |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Internal storage capacity |
64 GB |
| Audio |
| Number of microphones |
2 |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Front camera resolution (numeric) |
2 MP |
| Front camera |
Yes |
| Video recording |
Yes |
| Flash type |
LED |
| Rear camera flash |
Yes |
| Auto focus |
Yes |
| Rear camera resolution (numeric) |
5 MP |
| Rear camera |
Yes |
| Rear camera type |
Single camera |
| Network |
| Ethernet LAN |
Yes |
| Near Field Communication (NFC) |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Mobile network connection |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| Docking connector type |
USB |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone out |
Yes |
| Microphone in |
Yes |
| Mini VGA ports quantity |
1 |
| Micro HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Design |
| Device type |
Mobile tablet |
| Product colour |
Black |
| Form factor |
Slate |
| Performance |
| Electronic compass |
Yes |
| Barcode reader |
No |
| Proximity sensor |
Yes |
| Assisted GPS (A-GPS) |
No |
| Position location |
No |
| Software |
| Operating system installed |
Android 6.0 |
| Platform |
Android |
| Processor special features |
| Embedded options available |
No |
| Intel 64 |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Boot |
Yes |
| Intel Secure Boot Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Turbo Boost Technology |
No |
| Intel® Wireless Display (Intel® WiDi) |
Yes |
| Battery |
| Battery life (max) |
5.5 h |
| Battery recharge time |
3 h |
| Battery capacity |
26 Wh |
| Battery capacity |
26 Wh |
| Power |
| AC adapter output current |
1 A |
| AC adapter output voltage |
5 V |
| Endurance |
| International Protection (IP) code |
IP65 |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
980 g |
| Height |
180.1 mm |
| Depth |
18.3 mm |
| Width |
280 mm |
| Certificates |
| Certification |
FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + CE, FCC, IC, VCCI, BSMI |
| Operational conditions |
| Non-operating shock |
50 G |
| Operating shock |
20 G |
| Operating vibration |
1 G |
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
-10 - 50 °C |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
| Other features |
| Processor ARK ID |
93362 |
| Internal memory |
4 GB |
| Manufacturer |
Advantech |
| Operating temperature (T-T) |
-10 - 50 °C |
| Processor socket |
BGA 1380 |
