| General |
|
| Model |

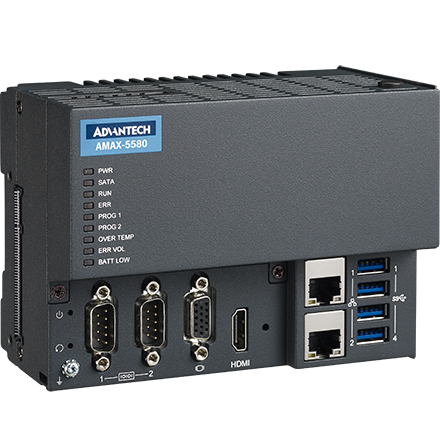

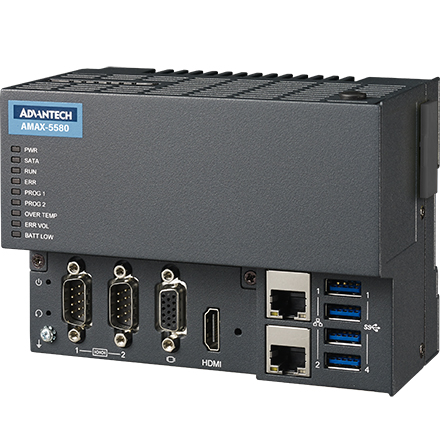

AMAX-5580-74000A |
| Manufacturer |
Advantech |
| Product Type |
PC-Based Control IPC with EtherCAT Slice I/O Expansion |
| Processor |
Intel® Core™ i7-6600U Dual-Core, 2.6 GHz (6th Generation Skylake) |
| Chipset |
Intel® PCH-LP |
| Memory |
8 GB DDR4 (Dual-Channel) |
| Graphics |
Intel® Gen9 LP GT2 Integrated Graphics |
| Storage & Expansion |
|
| M.2 Storage |
1 × M.2 2280 M-Key |
| Mini PCIe |
1 × Full-Size mPCIe Slot (Wireless/NVRAM Module) |
| Left-Side Expansion |
Up to 4 × AMAX-54XX Modules |
| Right-Side Expansion |
AMAX-5000 EtherCAT Slice I/O Modules |
| Networking & Communications |
|
| Ethernet |
2 × Gigabit Ethernet (Intel® i210-IT) |
| Ethernet Features |
IEEE 802.1Qav, IEEE 1588/802.1AS, IEEE 802.3az |
| LAN Redundancy |
Intel Teaming Function |
| EtherCAT |
Downstream EtherCAT Cable Redundancy |
| Serial Ports |
2 × RS-232/422/485 (DB9) |
| Serial Data Rate |
50 bps to 115.2 kbps |
| I/O Interfaces |
|
| USB |
4 × USB 3.0, 1 × Internal USB |
| Display Outputs |
1 × VGA, 1 × HDMI |
| VGA Resolution |
Up to 1920 × 1200 @ 60 Hz |
| HDMI Resolution |
Up to 4096 × 2160 @ 24 Hz |
| Power |
|
| Input Voltage |
24 VDC ±20% |
| Power Consumption |
15 W Typical, 42 W Maximum |
| Power Input |
Dual Power Input with Alarm Output |
| Software |
|
| Operating System |
Windows 7 (32/64-bit), Windows 10 (64-bit) |
| Programming Software |
CODESYS Runtime (IEC 61131-3) |
| BIOS |
AMI EFI 128 Mbit Flash BIOS |
| Watchdog Timer |
Programmable, 1 to 255 Seconds |
| Communication Protocols |
|
| Supported Protocols |
EtherCAT Master, Modbus RTU Master, Modbus TCP Master/Slave, PROFINET Master, EtherNet/IP Master, CANopen |
| Upstream Communication |
OPC DA, OPC UA, MQTT, Database Connection, PLCHandle Driver, Advantech Data Connect API |
| Mechanical |
|
| Form Factor |
DIN-Rail Mount |
| Cooling |
Fanless, Passive Cooling |
| Enclosure |
Aluminum Housing |
| Dimensions (W × H × D) |
139 × 100 × 80 mm |
| Weight |
1.3 kg |
| Environmental |
|
| Operating Temperature |
−10°C to +60°C |
| Storage Temperature |
−40°C to +85°C |
| Operating Humidity |
5% to 85% RH |
| Storage Humidity |
Up to 95% RH (Non-Condensing) |
| Shock Resistance |
IEC 60068-2-27, 10 G, 11 ms |
| Vibration Resistance |
IEC 60068-2-64, 1 Grms, 5–500 Hz |
| Compliance |
|
| Certifications |
CE, FCC, UL |
| Features |
|
| Wireless Support |
3G, LTE, Wi-Fi, GPS via mPCIe Module |
| Grounding Protection |
Chassis Grounding Protection |
| Status Indicators |
Power, Storage, Program, Abnormal Status LEDs |
| Application |
Industrial Automation, Data Gateway, Data Concentrator, Data Server, EtherCAT Machine Control |
