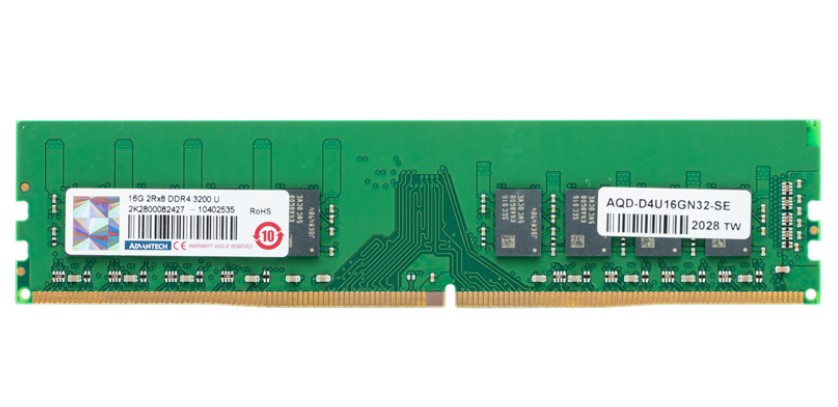

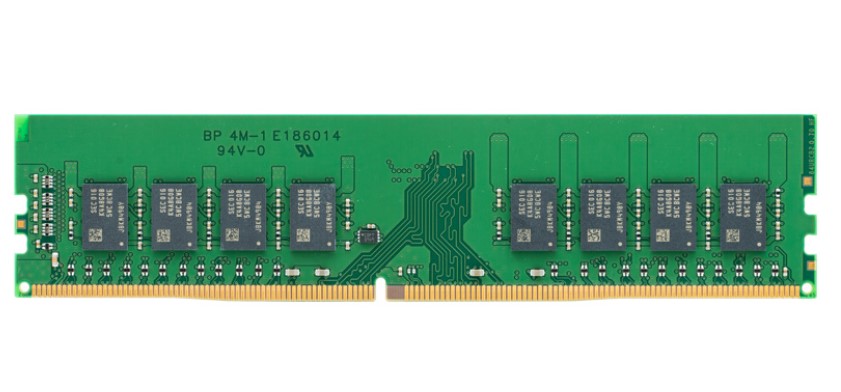

Advantech AQD-D4U16GN32-SE, 16GB DDR4 DIMM 3200MHz 1.2V Samsung Chip

Advantech AQD-D4U16GN32-SE, 16GB DDR4 DIMM 3200MHz 1.2V Samsung Chip

When upgrading an industrial computer, server, or embedded system, insufficient memory can affect application responsiveness and limit the number of processes that can run at the same time. A compatible DDR4 DIMM with the required capacity, speed, voltage, and memory organization helps provide a straightforward way to expand system memory.

The Advantech AQD-D4U16GN32-SE is a 16GB DDR4 DIMM designed for systems requiring reliable memory expansion. It operates at 3200MHz with a 1.2V interface and uses Samsung memory chips with a 1 G x 8 chip organization. The module uses a 288-pin interface for compatibility with supported DDR4 DIMM platforms.

With 16GB of capacity, the module provides additional system memory for applications that need more working memory. This can support industrial computing, embedded systems, automation equipment, and other compatible computing platforms where larger memory capacity is required for operating systems and applications.

The module is unbuffered and uses a 2 Rank configuration. Its 30u" gold plating thickness supports the physical contact interface, while anti-sulfurization resistance provides a feature intended for demanding operating environments. The Samsung chip manufacturer also provides a clearly defined memory component configuration.

The AQD-D4U16GN32-SE operates at 0 ~ 85°C (32 ~ 185°F), making it suitable for systems operating within this specified temperature range. With its 16GB capacity, DDR4-3200 speed, 1.2V voltage, and 288-pin DIMM interface, it can be used as a memory expansion option for compatible Advantech and other supported computing systems.

Key features

• 16GB DDR4 DIMM memory
• 3200MHz frequency
• 1.2V operating voltage
• SAMSUNG chip manufacturer
• 1 G x 8 chip organization
• 2 Rank configuration
• 288 pin interface
• Unbuffered design

Specifications
