Looking for a tiny computer that can run heavy tasks without heating up your space? The Advantech ARK-2251-S7A1 is a rugged, fan-less embedded PC that delivers desktop-class performance in a compact box. It is perfect for factories, kiosks, or edge AI where space is limited and reliability is critical. If you have been frustrated by slow, bulky PCs that fail in harsh environments, this unit gives you the power you need, right where you need it.

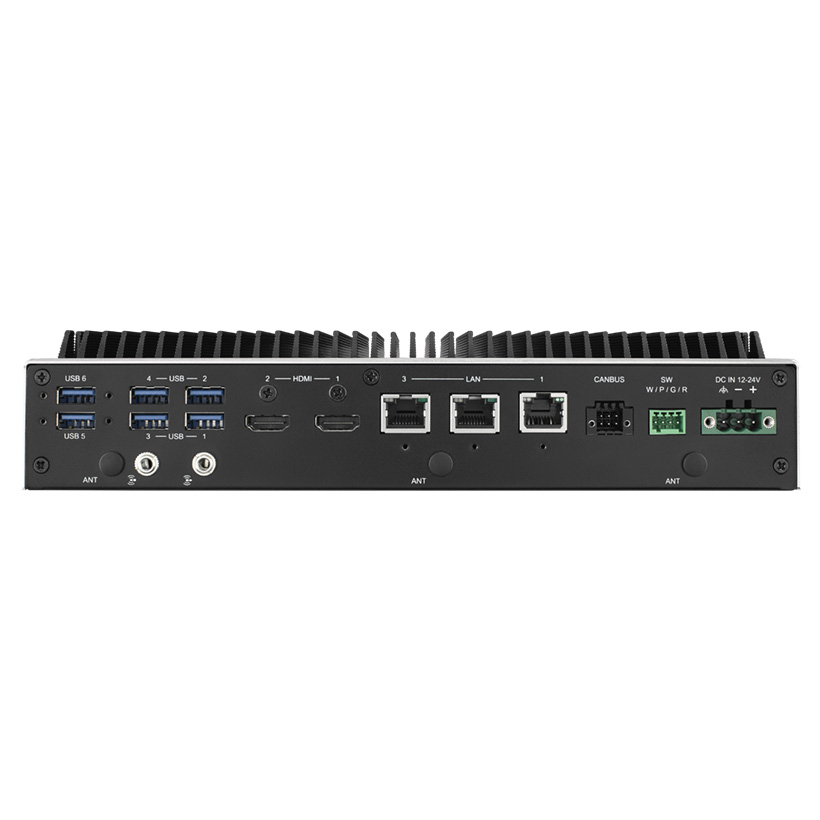

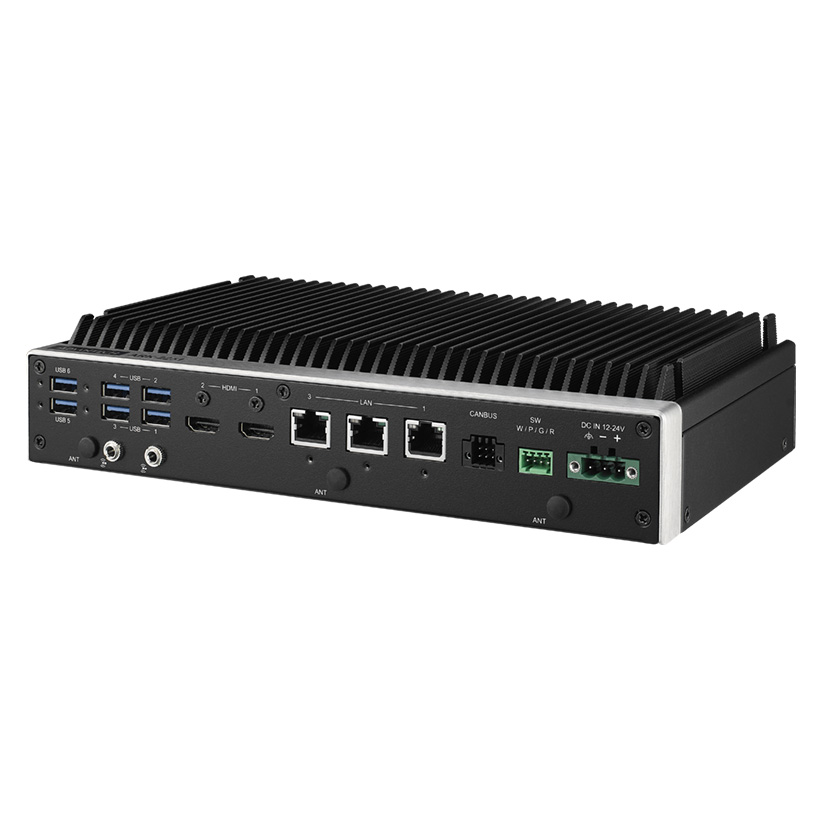

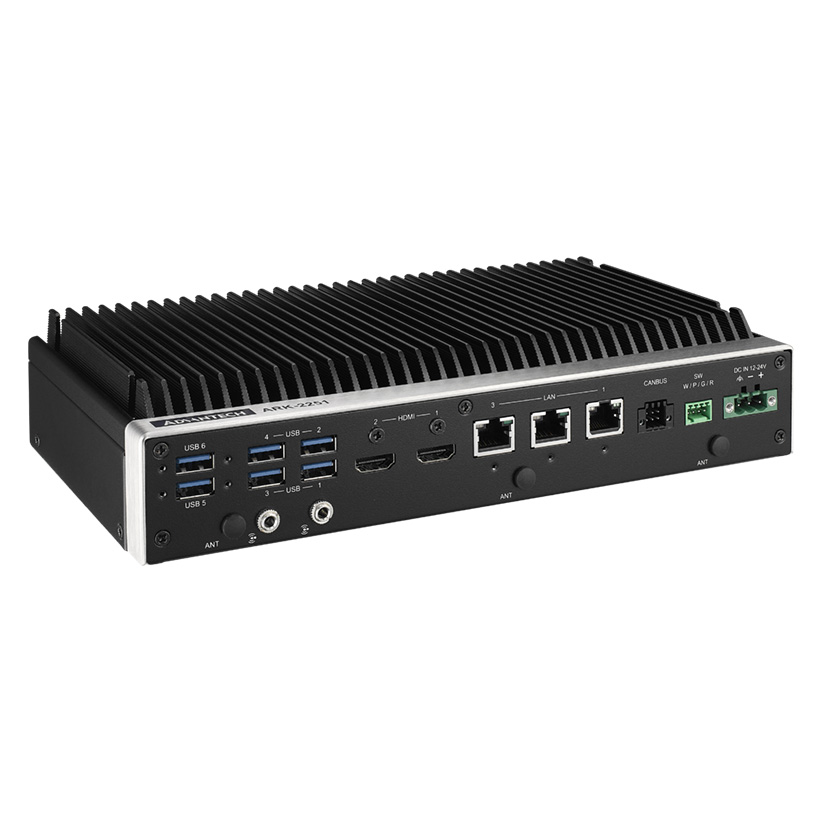

Advantech ARK-2251-S7A1, Core i7-1365UE, DDR5 4800 MHz, 1.7GHz Embedded PC
Many industrial projects suffer from lagging processors and frequent crashes because the hardware cannot handle modern data streams. This problem slows production, raises maintenance costs, and hurts customer trust. The ARK-2251-S7A1 solves the issue with a 13th-gen Intel i7 core, fast DDR5 memory, and dual 4K HDMI outputs. It keeps your applications running smooth, even when temperatures swing or power varies, so you stay productive without interruption.
Key Features
- 13th-gen Intel Core i7-1365UE, 2P+8E cores at 1.7 GHz
- DDR5 4800 MHz memory, up to 64 GB capacity
- Two HDMI outputs, both support 4K @ 60 Hz
- Three Gigabit Ethernet ports, one up to 2.5 Gbps
- Six USB 3.1 ports for fast peripheral connections

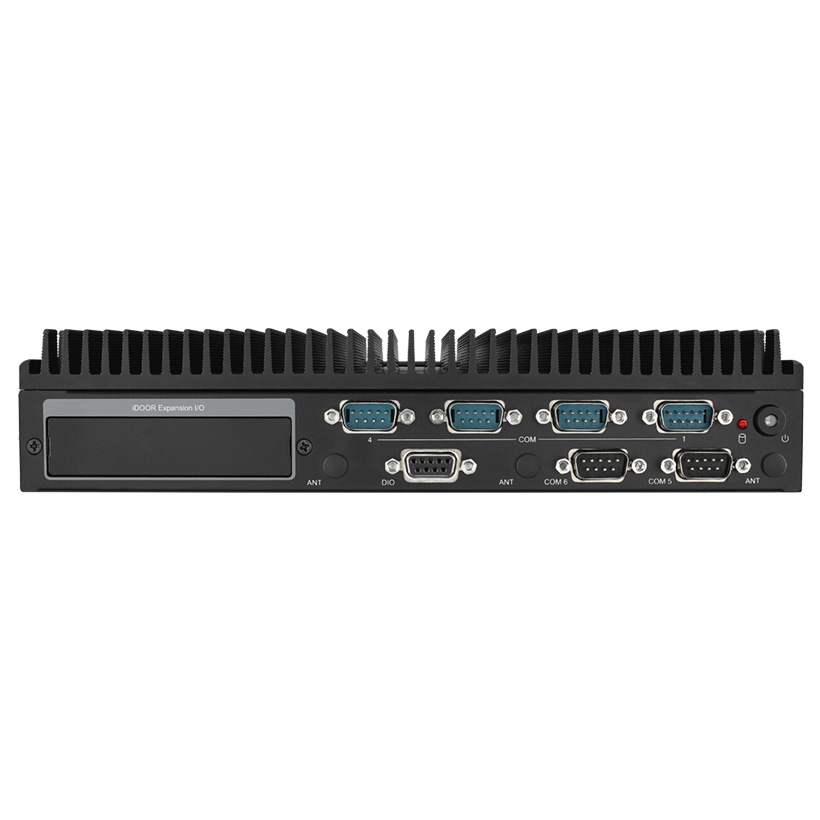

- Six serial ports (RS232/422/485) for legacy equipment
- Mini PCIe slot with SIM holder for cellular backup
- M.2 slots: 2230 E-key and 2280 M-key for SSDs
- Aluminum chassis, desk or wall mountable
- Power input 12-24 VDC, typical consumption 19.5 W
- CE, FCC, UL, and other safety certifications
Specifications
| Processor |
|
| CPU |
Core i7-1365UE |
| Core Number |
2P+8E |
| Frequency |
1.7 GHz |
| BIOS |
AMI UEFI 256 Mbit |
| Memory |
|
| Technology |
DDR5 4800 MHz |
| Max. Capacity |
64GB (up to 32GB per SO-DIMM) |
| Socket |
2 x 262 pin DDR5 SO-DIMM |
| ECC Support |
No |
| Graphics |
|
| Controller |
Intel® UHD Graphics for 13th Gen Intel® Processors |
| HDMI |
2 |
| Dual Display |
Yes, HDMI + HDMI , both display support 4K2K resolution
|
| Audio |
|
| Main System |
Realtek ALC888S, High Definition Audio. Line-out,Line-in
|
| Ethernet |
|
| LAN1 |
10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
|
| LAN2 |
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| LAN3 |
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| I/O Interface |
|
| Serial Port |
6 x RS232/ 422/ 485 |
| USB Interface |
6 x USB 3.1 |
| GPIO |
8-bit |
| Expansion |
|
| Mini PCIe |
1 x full size Mini PCIe with SIM holder
|
| M.2 |
1 x M.2 2230 E key + 1 x M.2 2280 M key |
| iDoor Module |
1 set (Optional) |
| Others |
|
| Watchdog Timer |
255 levels timer interval, setup by software |
| Storage |
|
| NVMe |
1 x PCIe x4 with M.2 M key |
| mSATA |
1 (Full-size mini-PCIe) |
| Software Support |
|
| Microsoft Windows |
Windows 10 |
| Linux |
Ubuntu 22.04 |
| Power |
|
| Power Type |
AT / ATX |
| Input Voltage |
12 ~ 24 VDC |
| Consumption |
Typical 19.47W, Max. 42.13W
|
| Mechanical |
|
| Construction |
Aluminum housing |
| Mounting |
Desk/wall-mounting |
| Dimensions |
260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") |
| Weight |
2.3 kg (5.07 lb) |
| Environment |
|
| Operational Temperature |
-20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity |
95% @ 40°C (non-condensing) |
| Vibration During Operation |
3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis |
| Shock During Operation |
30G, IEC60068-2-27, half sine, 11m duration |
| Certification |
|
| EMC |
CE/FCC Class B, CCC, BSMI |
| Safety Certifications |
UL, CCC, BSMI |
