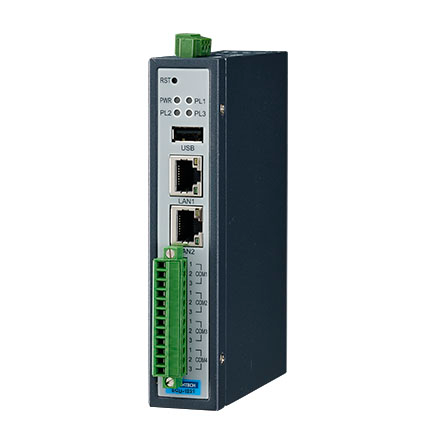

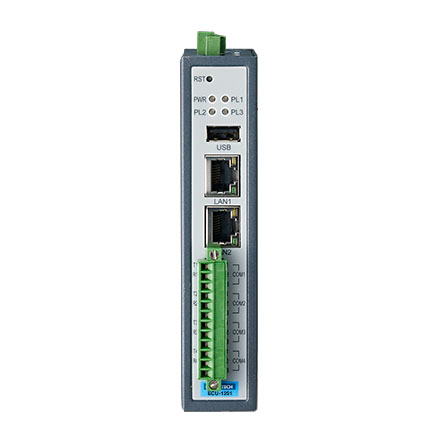

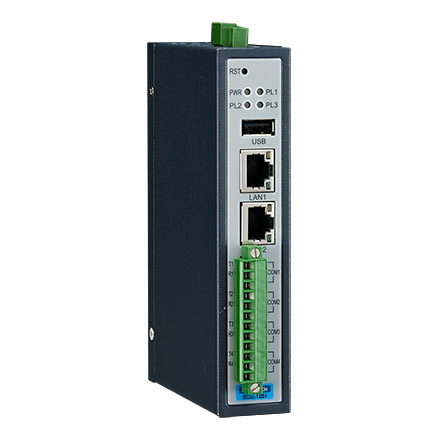

Advantech ECU-1251TL-R10AAE Industrial Communication Gateway
For solar power, electricity and factory related applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251 RISC-based industrial communication gateway. ECU-1251 has an open platform design with Cortex A8 processor, up to four RS-232/485 isolated serial ports, two 10/100 Ethernet ports and operating temperature range of -40~70°C.WithLinux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.
Features
- TI Cortex A8, 800MHz
- DDR3L 256MB RAM
- 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- RED Compliance
- Operation Temperature -40~70°C
Specifications
| Operating Temperature |
-40~70 °C (-40~158 °F) |
| Relative Humidity |
5~95% RH (non-condensing) |
| Storage Temperature |
-40~85 °C (-40~185 °F) |
| Ethernet Speed |
10/100 Mbps |
| Expansion Interface |
1 x Full-size mini PCIe 2.0 |
| SIM Card Slot |
Nano SIM card |
| Grounding Protection |
Chassis grounding |
| Programming Language |
Linux C |
| Protocol |
OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server |
| Certification |
CE, FCC class A |
| CPU |
TI Cortex A8, 800MHz |
| Expansion |
1 x Full-size mPCIe slot |
| LED Indicators |
PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program |
| Memory |
DDR3L 256MB |
| OS Support |
Linux |
| Power Input |
10~30 VDC |
| Storage |
1 x micro SD (4GB) |
| Watchdog Timer |
15~255 s |
| LAN Ports |
2 x 10/100 Mbps |
| Power Connector |
1 x 3-Pin Terminal Block |
| Serial Ports |
4 x RS-232/485 (Terminal Block) |
| USB Ports |
1 x USB 2.0 |
| Dimension (W x H x D) |
140 x 30 x 96.5 mm |
| Enclosure |
SECC |
| Form Factor |
Passive Cooling and Front Accessible |
| Mounting |
Wall, DIN-rail |
| Input Voltage |
10~30 VDC |
| Baud Rate (bps) |
50 bps~115.2 kbps |
| Data Signals |
RS-232: TxD, RxD, GND; RS-485: Data+, Data- |
| Wireless Communication |
WIFI, LTE |
