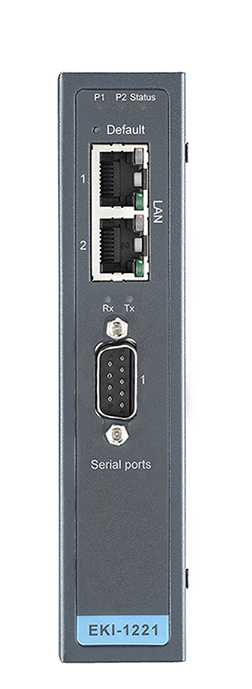

Advantech EKI-1221-CE, 1-Port Industrial Serial Device Gateway
The Advantech EKI-1221-CE is an industrial serial device server designed to connect RS-232, RS-422, and RS-485 serial equipment to Ethernet networks. It provides two 10/100 Mbps RJ-45 Ethernet ports and one DB9 male serial port for industrial communication applications.
The device supports Modbus RTU Client/Server and Modbus ASCII Client/Server operation, allowing serial devices to communicate across Ethernet networks. Configuration can be performed through a Windows utility or web browser, with baud rates from 50 to 921.6 Kbps.
Built for industrial environments, the EKI-1221-CE features a metal enclosure, IP30 protection, DIN-rail and wall mounting, and redundant dual DC power inputs. It operates from 12–48 VDC and supports reverse polarity protection.
The EKI-1221-CE supports a wide range of industrial certifications and environmental standards, including CE, FCC, IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, and ATEX. Its operating temperature range is -10°C to 60°C.
Key Features
-
2-port industrial serial device server
-
2x 10/100 Mbps RJ-45 Ethernet ports
-
RS-232, RS-422, and RS-485 support
-
1x DB9 male serial port
-
Modbus RTU and Modbus ASCII support
-
50–921.6 Kbps baud rate
-
12–48 VDC redundant dual power inputs
-
DIN-rail and wall mounting
-
IP30 metal enclosure
-
Reverse polarity protection
Specifications
| Certification |
|
| EMC |
CE, FCC |
| EMI |
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS |
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),
EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
|
| Freefall |
IEC 60068-2-32 |
| Safety |
IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX |
| Shock |
IEC 60068-2-27 |
| Vibration |
IEC 60068-2-6 |
| Environment |
|
| Operating Temperature |
-10 ~ 60°C (14 ~ 140°F) |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication |
|
| Ethernet Standard |
IEEE 802.3, 802.3ab, 802.3u |
| RJ-45 Port Connector Type |
RJ-45 |
| RJ-45 Port Number |
2 |
| RJ-45 Transmission Speed |
10/100 Mbps |
| Mechanism |
|
| Dimensions (W x H x D) |
36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.) |
| Enclosure |
Metal with solid mounting hardware |
| IP Rating |
IP30 |
| Mounting (DIN-rail) |
Yes |
| Mounting (Wall) |
Yes |
| Weight |
0.472 kg |
| Power |
|
| Power Consumption |
3.2W |
| Power Operating Current |
0.7A @ 24 V |
| Power Input (DC) |
12 ~ 48 VDC, redundant dual inputs |
| Redundant Dual Inputs |
Yes |
| Serial Communication |
|
| RS-232 |
Yes |
| RS-422 |
Yes |
| RS-485 |
Yes |
| Serial Port Connector Type |
DB9 male |
| Serial Port Number |
1 |
| Protection |
|
| Port to Port Isolation |
- |
| Reverse Polarity |
Present |
| Software |
|
| Baud Rate |
50 ~ 921.6 Kbps |
| Configuration |
Windows utility, Web Browser |
| Driver |
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Operation Mode |
Modbus RTU Client/Server, Modbus ASCII Client/Server |
| Protocol Support |
|
| Modbus TCP |
Yes |
| Modbus RTU |
Yes |
| Modbus ASCII |
Yes |
| Ethernet |
Yes |
| Order information |
|
| EKI-1221-CE |
1-port RS-232/422/485 Modbus Gateway |
