If you are looking for a reliable and powerful mini PC, you may have noticed that many options on the market are either too slow or too expensive. This can be a big problem if you need a computer for work or other important tasks. The Advantech EPC-B35080A-CNZS00, Barebone Mini PC with 350W PSU is a great solution to this problem. It provides a powerful and efficient computing experience at an affordable price. With its advanced features and high-quality components, this mini PC is perfect for a wide range of applications, from home use to business and industrial settings.

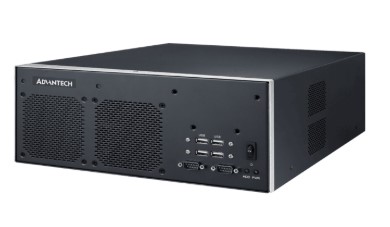

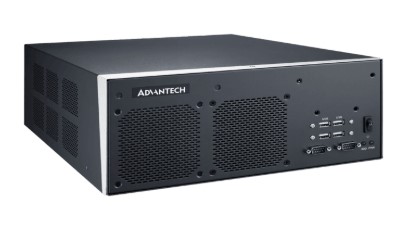

Advantech EPC-B35080A-CNZS00, Barebone Mini PC with 350W PSU with Advantech
Imagine having a mini PC that can handle all your computing needs without taking up too much space. The Advantech EPC-B35080A-CNZS00, Barebone Mini PC with 350W PSU is a powerful and compact computer that can be used for a variety of tasks, from browsing the internet to running demanding applications. With its advanced features and high-quality components, this mini PC is perfect for anyone looking for a reliable and efficient computing experience. Many buyers face the problem of finding a mini PC that is both powerful and affordable. The Advantech EPC-B35080A-CNZS00, Barebone Mini PC with 350W PSU solves this problem by providing a great balance of performance and price.
Key Features
- 350W PSU for reliable power supply
- Support for Intel 12th/13th/14th Gen Core i9/i7/i5/i3 processors
- 2 x 288-pin DDR4 DIMM sockets for up to 64GB of memory
- Dual Channel DDR4 3200 MHz SDRAM for fast data transfer
- Integrated Intel UHD Graphics 770 for smooth graphics performance
- 4 x SATA ports for storage expansion
- 2 x GbE LAN ports for fast networking
- 1 x PCIe x16 slot for graphics card installation
- 1 x PCIe x4 slot for expansion cards
- 2 x PCI slots for legacy devices
- Operating temperature range of 0 to 40 degrees Celsius
Specifications
| General |
|
| Model Name |
EPC-B3000 series |
| Order Parts Number |
EPC-B35080A-CNZS00 |
| Description |
Embedded AIMB Chassis with 350W ATX PSU |
| Power Supply |
|
| Power Supplier |
Flex-size ATX 350W (115Vac @ 5.2A, 230Vac @ 2.5A) |
| System Thermal Solution |
|
| CPU Cooler |
CPU cooler |
| System Fan |
1 + 1 (front, rear) |
| Processor System |
|
| CPU Support |
Intel® 12th /13th/14th Gen. Core™ i9/i7/i5/i3 up to 65W |
| BIOS |
AMI BIOS UEFI 256 Mbits, SPI |
| Chipset |
Intel H610E |
| Memory |
|
| Socket |
2 x 288-pin DDR4 DIMM Sockets (Non-ECC) |
| Technology |
Dual Channel DDR4 3200 MHz SDRAM |
| Max. Capacity |
64GB (32 GB per DIMM) |
| Graphics |
|
| Chipset |
integrated Intel UHD Graphics 770, supports DirectX12, OpenGL 4.5 |
| Storage |
|
| SATA HDD/SSD |
4 (support 4x 2.5" HDD/SSD, max 9.5 mm height) or
2 (support 2x 3.5" HDD/SSD, max 26 mm height)
|
| Ethernet |
|
| Interface |
100/1000/2500 Mbps |
| Controller |
GbE LAN1: i219VGbE LAN2: i226V |
| Connector |
2 (RJ-45) |
| Expansion Slot |
|
| PCI |
2 Slots |
| PCIe x4 |
1 Slot |
| PCIe x16* |
1 Slot |
| Miscellaneous |
|
| LED Indicators |
2 (Power LED, HDD LED) |
| Power Switch |
1 |

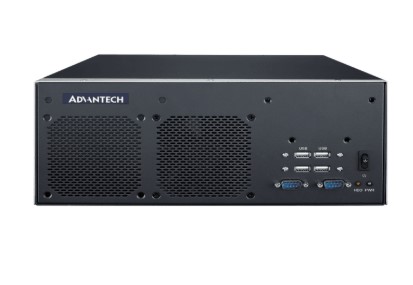

| Front Panel |
|
| USB (optional) |
up to 4 (pre-cut) |
| COM (optional) |
up to 1 (pre-cut) |
| Antenna (optional) |
up to 2 (pre-cut) |

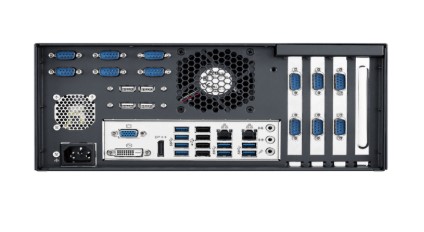

| Rear Panel |
|
| MB IO |
Based on rear panel of MB |
| USB |
Up to 8 (4 USB 3.0, 4 USB 2.0) |
| COM |
Up to 6 |
| AC-input |
1 |
| Environment |
|
| Operating Temperature |
0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature |
-40 ~ 85 °C (-40 ~ 185 °F) |
| Humidity |
10 ~ 85% @ 40 °C, non-condensing |
| Vibration (5 ~ 500Hz) |
0.5 Grms (with HDD); 1 Grms (With SSD) |
| Dimensions |
|
| Dimensions (W x H x D) |
360 x 133.4 x 310 mm |
| Weight |
9.3 kg |
