Introduction

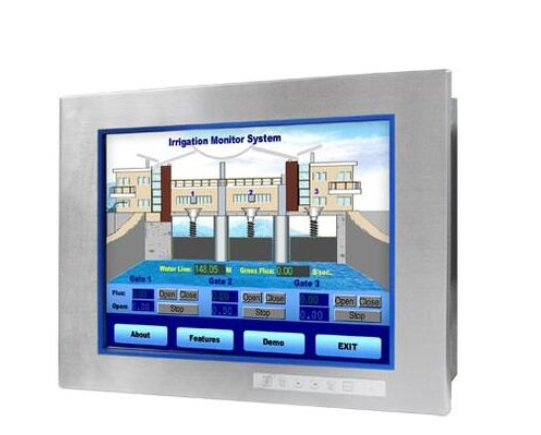

The FPM-7211W is an industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with PCAP 10-point multi-touch control and an IP66-rated
front bezel, FPM-7211W is designed for intuitive operation in harsh industrial environments. Moreover, FPM-7211W supports a range of mount options to ensure easy, single-person
installation.
Key Features
-
21.5″ Full HD TFT LED display with 1920 × 1080 resolution
-
Projected capacitive (PCAP) touchscreen with 10-point multi-touch support
-
IP66-rated front panel for protection against dust and water
-
Wide 178° viewing angles for clear visibility from different positions
-
High contrast ratio (5000:1) and 300 cd/m² brightness for excellent image quality
-
VGA and DVI-D video inputs for flexible system connectivity
-
USB and RS-232 touchscreen interfaces for easy integration
-
Multiple mounting options including panel, wall, desktop, and VESA
-
Durable industrial construction with magnesium alloy front panel
-
Long backlight lifetime of 50,000 hours for reliable long-term operation
Specifications
| Specification |
Value |
| Product Model |
Advantech FPM-7211W-P3AE |
| Display Size |
21.5″ |
| Display Type |
Full HD TFT LED LCD |
| Resolution |
1920 × 1080 |
| Aspect Ratio |
16:9 |
| Maximum Colors |
16.7M |
| Viewing Angle (H/V) |
178° / 178° |
| Brightness |
300 cd/m² |
| Contrast Ratio |
5000:1 |
| Backlight Life |
50,000 hours |
| Touchscreen Type |
Projected Capacitive (PCAP) |
| Multi-Touch Support |
10-point multi-touch |
| Touch Interface |
USB, RS-232 |
| Light Transmission |
>75% |
| Surface Hardness |
>6H |
| Video Input |
VGA, DVI-D |
| Mounting Options |
Panel, Wall, Desktop, VESA (MIS-D 100 mm) |
| Front Panel Protection |
IP66 |
| Enclosure |
Front: Die-cast magnesium alloy; Rear: SECC |
| OSD Controls |
OSD control buttons on rear panel |
| Power Input |
24 VDC (Phoenix Jack) |
| Power Consumption |
25 W ±20% |
| Operating Temperature |
0 ~ 55 °C |
| Storage Temperature |
-20 ~ 60 °C |
| Storage Humidity |
10 ~ 90% RH (non-condensing) |
| Vibration |
5 ~ 500 Hz, 1 Grms (Operating, Random) |
| Dimensions (W × H × D) |
558.4 × 349.8 × 47.7 mm |
| Panel Cutout Dimensions |
550.3 × 341.8 mm |
| Weight |
8 kg |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Supported Operating Systems |
Windows XP, Vista, 7, 8, 10, Windows XPe, Linux |
