If you are looking for a reliable and efficient server to manage your network, you may be facing a problem of finding the right one that meets your needs. This is because many servers on the market are either too expensive or do not have the right features to handle your workload. However, with the Advantech FWA-3050-16A1R, Intel Xeon D-2187NT, 1U Rackmount Server, you can solve this problem and get a server that is both powerful and affordable. This server is designed to provide a clear solution to your networking needs, with its advanced features and high-performance capabilities. By choosing this server, you can ensure that your network is running smoothly and efficiently, without breaking the bank.

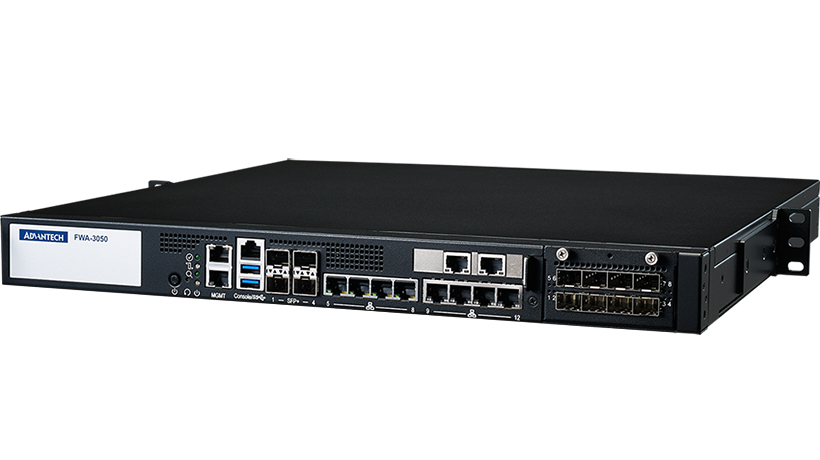

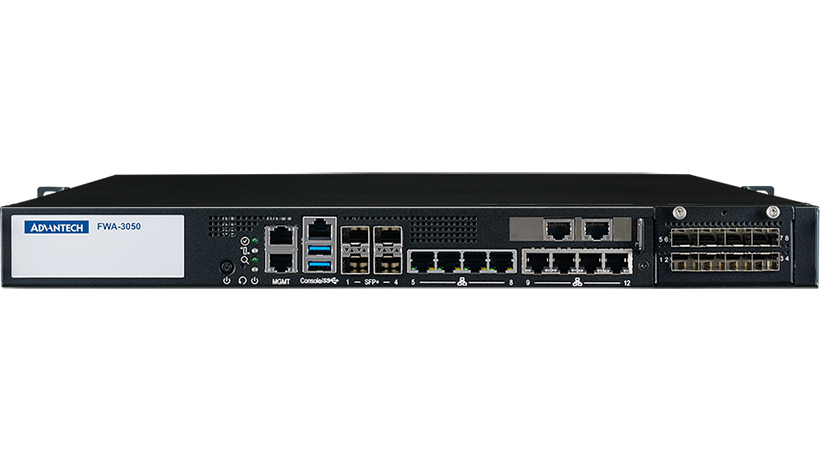

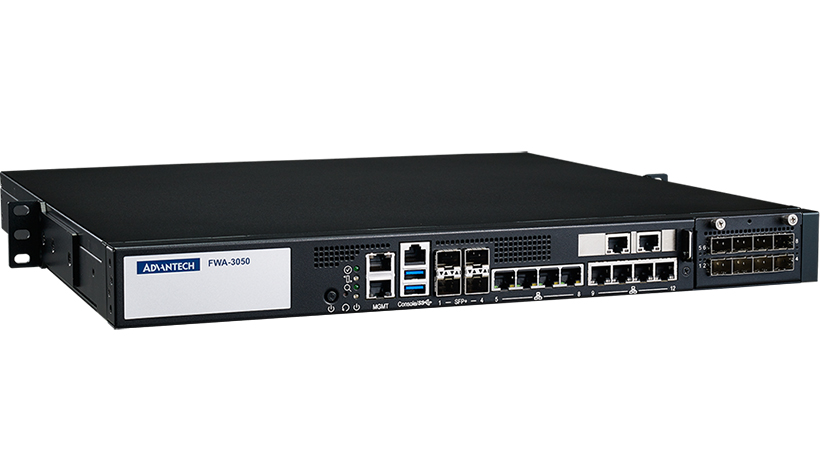

Advantech FWA-3050-16A1R, Intel Xeon D-2187NT, 1U Rackmount Server with Advantech
Are you tired of using a server that is slow and unreliable? Look no further than the Advantech FWA-3050-16A1R, Intel Xeon D-2187NT, 1U Rackmount Server. This server is designed to provide high-performance and reliability, making it the perfect solution for your networking needs. With its advanced features and powerful processor, you can ensure that your network is running smoothly and efficiently. The Advantech FWA-3050-16A1R is a 1U rackmount server that is designed to meet the needs of businesses and organizations that require a reliable and efficient server. It is powered by the Intel Xeon D-2187NT processor, which provides high-performance and low power consumption. This makes it the perfect solution for businesses that require a server that is both powerful and energy-efficient.
Key Features
- Intel Xeon D-2187NT processor, providing high-performance and low power consumption.
- 1U rackmount design, making it the perfect solution for businesses that require a server that is space-efficient.
- Support for up to 256GB of DDR4 memory, making it the perfect solution for businesses that require a server that is high-performance.
- 4 x 10GbE SFP+ ports, providing high-speed networking and connectivity.
- 2 x M.2 2280 SSD/NVMe ports, providing high-speed storage and connectivity.
- Redundant 1+1 AC power supply, providing high reliability and uptime.
- IPMI v2.0 compliant, providing easy management and maintenance.
- Support for Linux operating systems, making it the perfect solution for businesses that require a server that is flexible and scalable.
- Compact design, making it the perfect solution for businesses that require a server that is space-efficient.
- Low power consumption, making it the perfect solution for businesses that require a server that is energy-efficient.
- Easy to manage and maintain, making it the perfect solution for businesses that require a server that is easy to use and manage.
Specifications
| Specifications |
|
| FWA-3050-16A1R |
FWA-3050-16A1R |
| Platform |
|
| Form Factor |
1U Rackmount |
| Processor System |
|
| Processor |
Intel® Xeon D-2187NT |
| Core Count |
16C/32T |
| Frequency |
2.0GHz |
| L2 Cache |
22MB |
| BIOS |
AMI Efi 64Mbit |
| Virtualization |
VT-x, VT-d, EPT |
| Memory |
|
| Technology |
DDR4, Up to 2666MHz |
| Max. Capacity |
256GB RDIMM/512GB LRDIMM |
| Socket |
4 x 288-pin RDIMM |
| ECC Support |
Yes |
| Networking |
|
| Controller |
1 x Intel X722, 2 x Intel i350, 2 x Intel i210 |
| 1GbE |
4 x 10/100/1000 Mbps RJ45 via Intel i350-AM4, 4 x 10/100/1000 Mbps RJ45 via
Intel i350-AM4 (Option: Advanced LAN bypass), 2 x 10/100/1000Mbps RJ45 via
Intel i210-AT for management
|
| 10GbE |
4 x 10GbE SFP+ via Intel X722 |
| LAN bypass |
None (Option: 2-segment/4 x ports Advanced LAN bypass) |
| Expansion |
|
| PCIe |
1 x PCIe x8 (Low-profile) |
| NMC |
1 (Option: Field-replaceable NMC-E02 by project inquiry) / 1
(Available for field-replaceable NMC-E02)
|
| Storage |
|
| 2.5" HDD/SSD |
2 (Internal) |
| M.2 SSD/NVMe |
2 x M.2 2280 SSD/NVMe |
| I/O |
|
| Console port |
1 |
| USB3.0 |
2 |
| LED Indicator |
1 x Power LED, 1 x Alert LED, 1 x Locate LED, 1 x Software-defined LED |
| Others |
1 x Power button, 1 x Software-defined button |
| TPM |
None (Option: Infineon TPM1.2/2,0 module) |
| LCD Module |
None (Option: 21 columns x 4 lines text display) |
| Power |
|
| Power Type |
Redundant 1+1 AC |
| Watts |
300W |
| Input |
100V ~ 240V |
| Connector |
CRPS (Option: 800W DC power supply by project support) |
| Environment |
|
| Operating Temperature (air flow 0.7 m/sec) |
0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature |
-20 ~ 70 °C (-4 ~ 158 °F) and 40 °C @ 95% RH Non-Condensing |
| Vibration Resistance |
With SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis |
| Shock Protection |
With SATA HDD: 10G, 11ms, IEC-60068-2-27, X,Y,X-X,-Y-Z axis, 3 times per axis |
| Cooling |
Fixed 2 x system FANs |
| Mechanical |
|
| Construction |
Steel |
| Mounting |
1U Rackmount |
| Dimensions (W x H x D) |
438 x 44 x 420 mm (17.2" x 1.7" x 16.5") |
| Weight |
8.23Kg (18.14lb) |
| OS Support |
|
| OS Support |
Linux (CentOS, Fedora, Red Hat, Ubuntu) |
| Advantech S/W Packages |
|
| Package |
ALBPCU |
| Package |
APOECU |
| Package |
ipmitool |
| Package |
Server iManager (Linux Base) |
| Feature |
-Health Guard |
| Feature |
-Diagnostic Framework |
| Feature |
-Network device identifier (NDI) |
| IPMI |
|
| IPMI |
IPMI v2.0 compliant, with web interface, iKVM on request (Advantech IPMI Core) |
