If you are looking for a reliable and powerful server to manage your data and applications, you may be facing a big problem. Many servers on the market are not able to handle large amounts of data and traffic, which can lead to slow performance and even crashes. This can be very frustrating and cost you a lot of time and money. The Advantech FWA-6172, 2U Rackmount Server with Dual 4th/5th Gen Intel Xeon CPU is a great solution to this problem. It is designed to handle large amounts of data and traffic, and it has a powerful processor that can handle even the most demanding applications. With this server, you can be sure that your data and applications are safe and running smoothly.

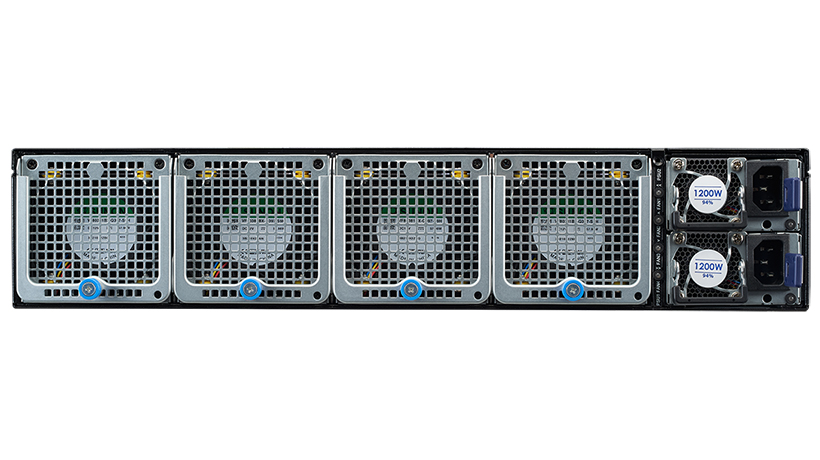

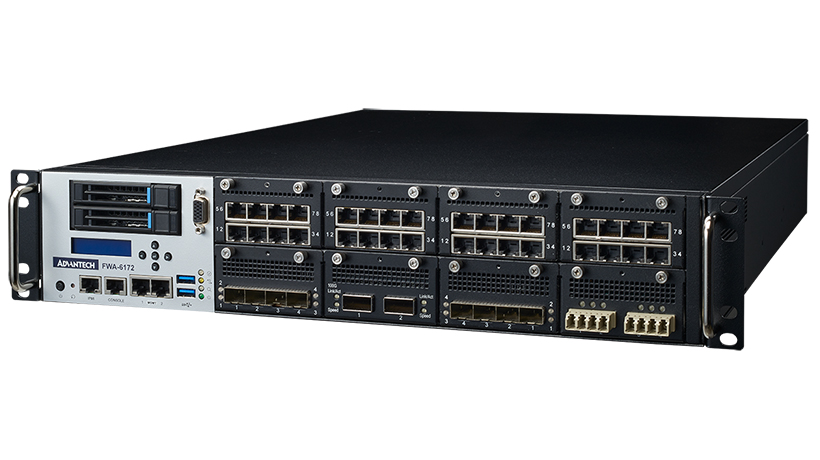

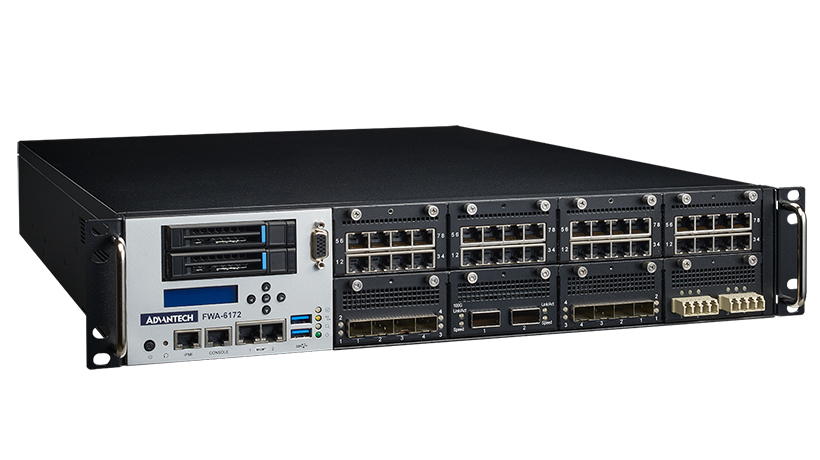

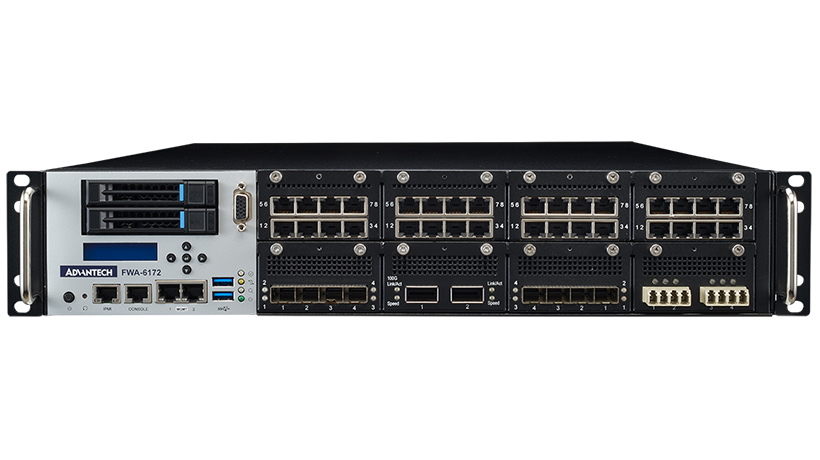

Advantech FWA-6172, 2U Rackmount Server with Dual 4th/5th Gen Intel Xeon CPU with Advantech
Are you tired of using slow and unreliable servers that can't handle your data and applications? Look no further than the Advantech FWA-6172, 2U Rackmount Server with Dual 4th/5th Gen Intel Xeon CPU. This powerful server is designed to handle even the most demanding applications and data, and it has a range of features that make it easy to use and manage. With its dual 4th/5th Gen Intel Xeon CPU, you can be sure that your server will be able to handle anything you throw at it. The Advantech FWA-6172 is a great choice for anyone who needs a reliable and powerful server.
Key Features
- Dual 4th/5th Gen Intel Xeon CPU for high-performance processing
- Up to 1024 GB of memory for large storage capacity
- 1200 W redundant power supply for reliable and efficient power
- Support for a variety of operating systems, including Linux and Windows
- 4 x Hot swap 8038 mm fan for efficient cooling
- 1 x VGA port for easy display connection
- 2 x USB 3.0 ports for easy connection of peripherals
- 1 x RJ45 type console for easy management and maintenance
- IPMI 2.0 and Redfish compliant for easy management and monitoring
- Support for TPM 2.0 for secure storage and management of sensitive data
Specifications
| System P/N |
FWA-6172-00A1R |
| Form Factor |
2U Rack Mount |
| Processor System |
|
| Processor |
4th & 5th Generation Intel® Xeon® Scalable Processors |
| Core Count |
Up to 52C |
| Base Frequency |
Up to 3.7 GHz |
| Chipset |
C741 |
| BIOS |
AMI UEFI |
| Virtualization |
Intel® VT-Redirect Protection, Intel® S-IOV |
| Memory |
|
| Technology |
DDR5, up to 5600 MT/s |
| Max. Capacity |
1024 GB (64 GB per slot) |
| Socket |
16 x 288-pin DIMM |
| ECC Support |
RDIMM |
| Networking |
|
| Controller |
2 x Intel i210 |
| 1GbE |
2 x 1GbE RJ45 |
| Expansion Slot |
|
| PCIe x16 |
1 x PCIe Gen5 x16 double-deck 10.5” or 2 x PCIe Gen5/Gen4 x16 FH/HL |
| NMC |
8 x PCIe Gen5 x8 |
| IPMI |
IPMI 2.0 and Redfish compliant |
| Storage |
|
| 2.5" Bay |
2 x External 2.5" HDD/SSD |
| M.2 |
2 x M.2 2280 M-Key for SATA SSD or PCIe Gen3 x4 NVMe |
| I/O |
|
| Console |
1 x RJ45 type console |
| USB |
2 x USB 3.0 |
| LED Indicator |
1 x Power LED, 1 x Alert LED, 1 x Locate LED, 1 x Software-defined LED |
| Display |
1 x VGA port |
| Button |
1 x Power button, 1 x Software-defined button |
| Others |
1x dedicated 1GbE LAN for IPMI |
| TPM |
TPM 2.0 |
| LCD Module |
16 x 2 graphic display, 5 buttons |
| Power Supply |
|
| Power Type |
AC Redundant CRPS (Option: DC Redundant CRPS) |
| Watts |
1200 W |
| Input |
AC: 100-240V~, 12-7A, 50-60Hz (Option: DC -48V) |
| Connector |
AC 3pin plug |
| Environment |
|
| Operating Temperature |
0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature |
-40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity |
| Vibration Resistance (Operation) |
5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis |
| Shock Protection (Operation) |
10 G, 11 ms |
| Cooling |
4 x Hot swap 8038 mm fan |
| Mechanical |
|
| Metallic Material |
SGCC |
| Mounting |
Rackmount |
| Dimensions (W x H x D) |
438 x 88 x 600 mm (17.2" x 3.4" x 23.6") |
| Weight (G.W.) |
23.5 kg (51.8 lbs) |
| OS Support |
|
| OS Support |
Linux (CentOS, Red Hat, Ubuntu, Fedora) |
| Advantech S/W Packages |
|
| Package |
1. ALBPCU |
| Package |
2. APOECU |
| Package |
3. ipmitool |
| Package |
4. Server iManager (Linux base) |
| Feature |
- Health Guard |
| Feature |
- Diagnostic Framework |
| Feature |
- Network device identifier (NDI) |
| Package |
5. Quick Start Linux Image |
| Certification |
|
| Certification EMC/Safety |
CE, FCC, CB, UL, CCC |
