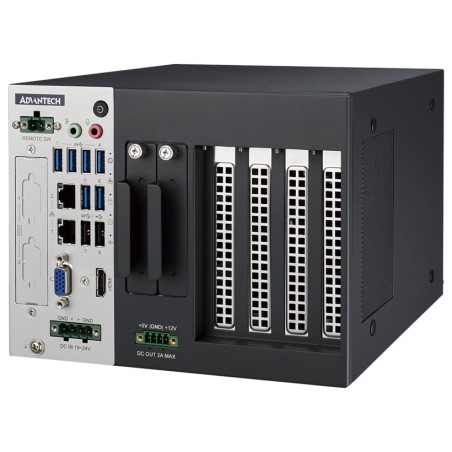

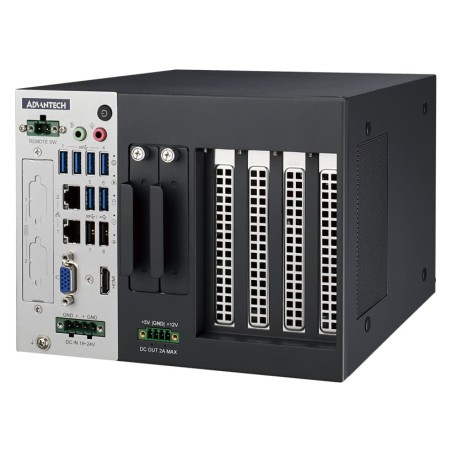

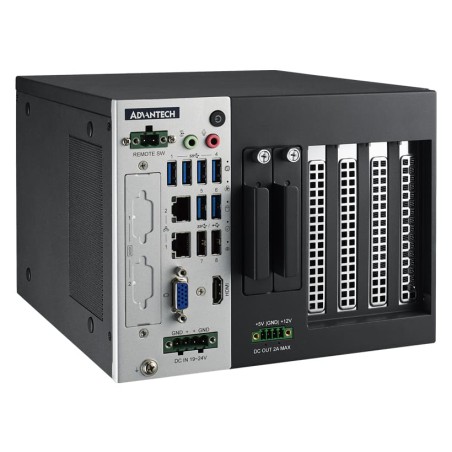

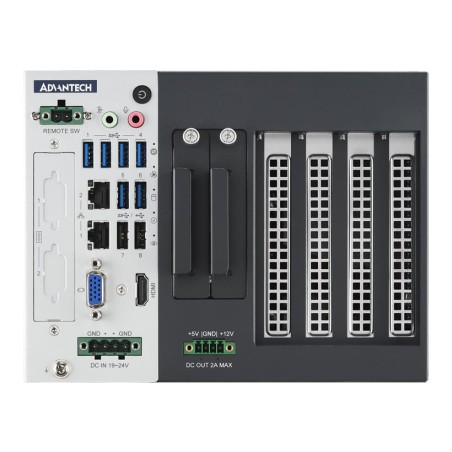

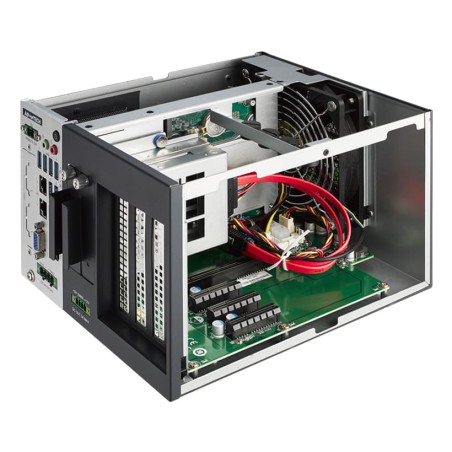

Advantech IPC-240-20B1 Box Industrial PC
The Advantech IPC-240-20B1 is an ultra-compact modular industrial box PC designed for space-constrained edge computing and intelligent manufacturing. This heavy-duty steel chassis features a unique single-side I/O design for easy maintenance and a shockproof drive bay supporting two 2.5" SSD/HDDs. It is widely used for machine vision, motion control, and automated optical inspection (AOI) due to its high expandability in a small form factor.
Features:
- Compact IPC chassis with two/four front expansion slots
- Shockproof drive bay for two 2.5" HDD/SSD
- Single-side I/O for easy maintenance
- Support Advantech iDoor
- Bidirectional to mount on wall or workbench
- Qualified for AWS(Amazon Web Service) IoT Greengrass
Specifications:
| Model Number |
IPC-240-20B1 |
| Disk Drive Bay |
2.5″, 2 Swappable (Max height 15mm) |
| Cooling Fan |
1 (12cm/82CFM) |
| Cooling Air Filters |
Yes |
| Front IO USB |
8 |
| Front IO LAN |
2 |
| Front IO Video Output |
HDMI, VGA |
| Front IO Audio |
Mic-in, Line-out |
| Front IO Serial Port |
2 x RS-232/422/485 support auto flow control |
| Front IO Remote SW |
Used for remote power on/off signal |
| Front IO DC Outlet |
12V@2A max; 5V@2A max |
| Expansion I/O Module |
Support Advantech iDoor |
| Expansion Add-On Card Module |
PCIe x16: 1 |
| Expansion Add-On Card Module |
PCIe x4: 3 |
| Expansion Add-On Card Module |
PCI: – |
| Control |
Power switch |
| LED Indicator |
Power / Disk / CPU Temp. Alarm / System Temp. Alarm / CPU Fan Alarm / Watch Dog |
| Environment Operating Temperature |
0 ~ 45 °C |
| Environment Non-operating Temperature |
-40 ~ 85 °C |
| Environment Humidity |
95% @ 40 °C (non-condensing) |
| Environment Vibration (5-500 Hz) |
With SSD: 2 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Environment Vibration (5-500 Hz) |
With HDD: 0.5Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Environment Shock |
10G, IEC-68-2-27, half-sine wave, 11 ms duration |
| Mechanical Dimensions (W x H x D) |
IPC-220: 155 x 230 x 150 mm (6.1″ x 9.05″ x 5.9″) |
| Mechanical Dimensions (W x H x D) |
IPC-240: 195 x 230 x 150 mm (7.68″ x 9.05″ x 5.9″) |
| Mechanical Weight |
IPC-220: 3.1 kg |
| Mechanical Weight |
IPC-240: 3.3 kg |
