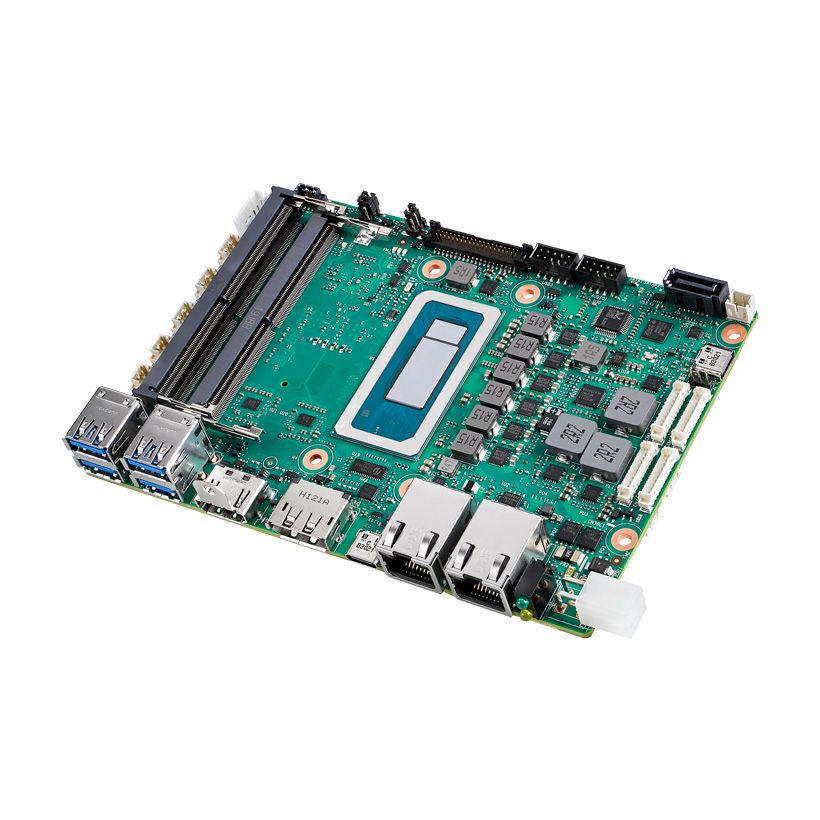

Advantech MIO-5377 Intel Core i7-1270PE 64GB P-series 3.5" Single Board Computer

When you need a compact yet powerful computer that can run multiple applications, handle heavy graphics and stay reliable in harsh environments, you often end up juggling several devices or compromising on performance. The compact industrial-grade board combines a high-performance Intel Core i7-1270PE processor with robust connectivity, so you can replace bulky setups with a single, space-saving solution that still delivers the speed and reliability your projects demand.

A compact powerhouse for demanding industrial tasks

The board solves the problem of limited space and the need for a versatile, high-speed system in industrial, medical or edge-computing environments. Small enclosures, tight cabinets and rugged installations leave little room for traditional PCs, yet you still require fast processing, multiple displays and reliable networking. This board provides a clear answer: a 146 × 102 mm (5.7 × 4 in) platform that packs an Intel Core i7-1270PE with a 4.5 GHz turbo boost, 28 W TDP and DDR5-4800 memory support, delivering desktop-class performance in a tiny form factor.

Usages

The board is ideal for any scenario where size, power efficiency and connectivity matter. It fits neatly into:

• Factory automation controllers
• Medical imaging workstations
• Edge AI inference nodes
• Digital signage and kiosks
• Compact work-stations for CAD or GIS

Benefits

The combination of a 4-core + 8-efficiency-core CPU and 18 MB cache ensures smooth multitasking and fast data processing, so you can run complex calculations without lag. Integrated Intel® Iris® Xe graphics reach up to 1.35 GHz, providing crisp visuals on up to four simultaneous displays, perfect for monitoring dashboards or detailed design work. Dual Ethernet ports - one GbE and one 2.5 GbE - give you reliable, high-speed networking for data-intensive applications. Low power consumption, with a maximum of 96.6 W at 24 V and an idle draw of just 29.5 W, helps keep operating costs down and simplifies thermal management. The board’s wide temperature range (0 °C to 60 °C operating) and vibration resistance of 3.5 Grms guarantee stable operation in demanding environments.

Key Features

• Intel Core i7-1270PE processor - high-performance 4P + 8E core architecture
• Max CPU frequency 4.5 GHz - fast burst performance when needed
• Base frequency 1.8 GHz - efficient power use for everyday tasks
• 18 MB LLC cache - quick data access for smoother multitasking
• DDR5-4800 memory support, up to 64 GB - future-proof capacity and speed
• Intel® Iris® Xe Graphics, 1.35 GHz max - clear, detailed visuals on multiple screens
• Dual Ethernet: Intel i219LM (GbE) and Intel i226 (2.5 GbE) - reliable, high-speed networking

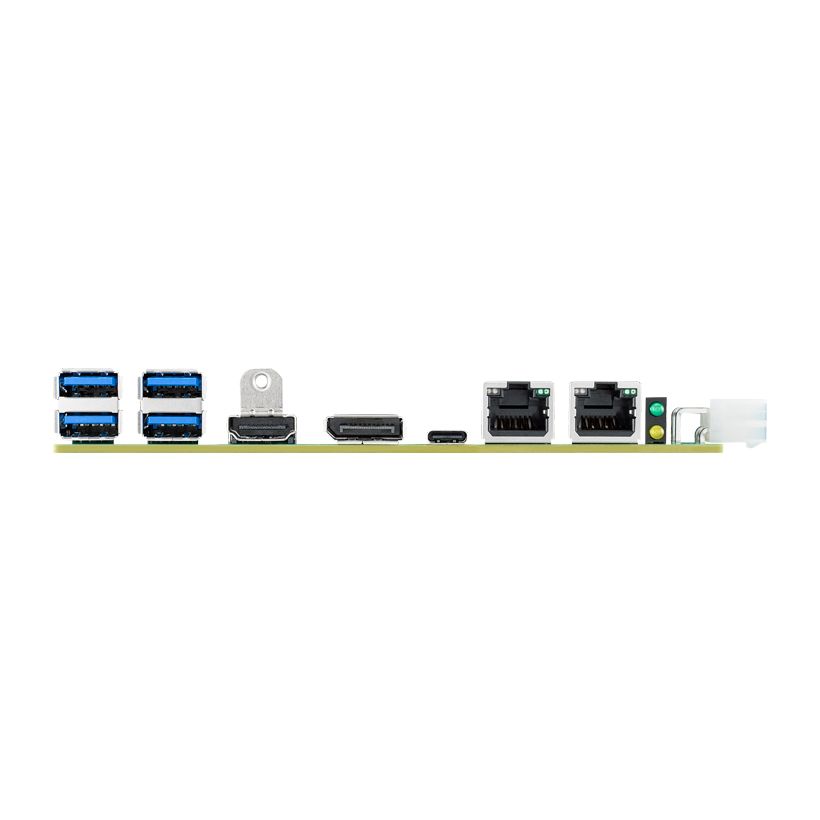

• 4 simultaneous display outputs via LVDS, HDMI 2.0b, DP1.4a and USB-C Alt-Mode - flexible visual setups
• USB4 Type-C (up to 40 Gbps) plus four USB 3.2 Gen 2 x1 ports - fast peripheral connectivity
• Wide operating temperature range 0 °C - 60 °C and vibration resistance 3.5 Grms - robust for industrial use

This board delivers the performance, connectivity and durability you need, all within a footprint that fits into the tightest spaces while keeping power consumption and heat generation low. It is the ideal foundation for building reliable, high-speed industrial computers that can grow with your requirements.
