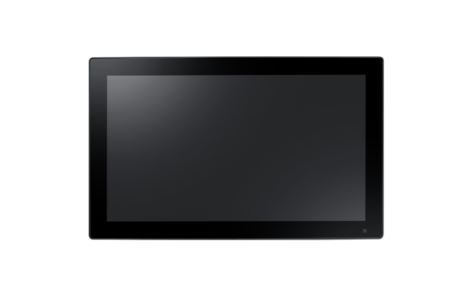

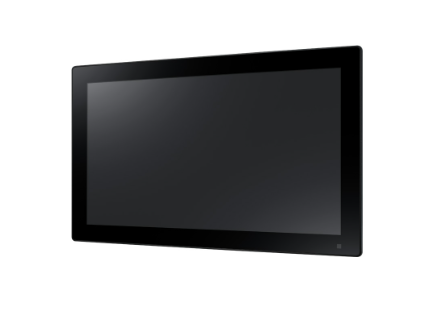

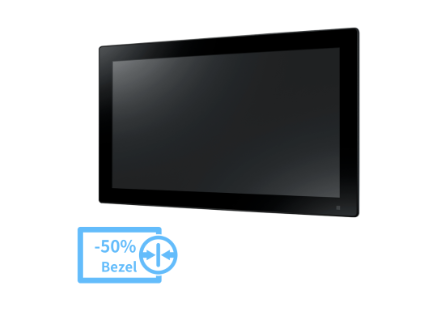

Advantech PPC-300 Series 18.5 Inch Industrial Panel PC Intel N97

Need a rugged computer that never quits, even in the toughest factories? The Advantech PPC-300 Series 18.5 Inch Industrial Panel PC Intel N97 is built for that exact need. It is a sturdy, all-in-one computer with a bright 18.5-inch touchscreen, designed for harsh industrial settings. If you have been fighting frequent crashes, slow response, or screens that fade in bright light, this panel PC gives you the reliability you need to keep production moving.

Advantech PPC-300 Series 18.5 Inch Industrial Panel PC Intel N97

Factories, warehouses, and field stations often suffer from computers that cannot handle dust, vibration, or temperature swings. When a machine stops because the display freezes, you lose time and money. This panel PC solves that problem by offering a sealed, fan-less design, a fast quad-core Intel N97 processor, and a bright LCD that stays clear in sunlight. The result is a system that runs continuously, lets operators see data clearly, and reduces costly downtime.

Benefits

• Fast quad-core CPU keeps applications responsive.
• Bright 450 cd/m screen works in bright factories.
• Wide temperature range means no extra heating or cooling.

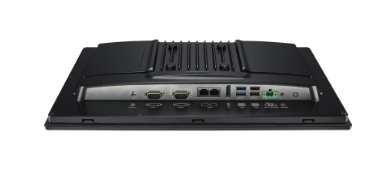

• Multiple I/O ports let you connect sensors and printers.
• Built-in watchdog timer restarts the system automatically.

Usages

Use this panel PC on a production line to monitor machine status and guide operators. Install it in a warehouse to run inventory software on a touch screen that can be cleaned with a cloth. Deploy it in a remote oil-field station to control pumps and collect data, even when the environment is hot, dusty, or humid. It also fits well in medical labs where a clean, reliable display is required for patient data.

Key Features

• Intel N97 2.0 GHz quad-core processor.
• 1 DDR5 SO-DIMM slot for memory upgrades.
• 1 NVMe/SATA M.2 SSD slot and 1 2.5 drive bay.
• 2 10/100/1000/2500 Mbps Ethernet ports.
• 2 RS-232/422/485 serial ports for legacy equipment.
• 2 USB 3.2 and 2 USB 2.0 for peripherals.
• PCI or PCIe 1 expansion slot for custom cards.
• PCAP touchscreen for precise finger input.
• 450 cd/m brightness and 170/160 viewing angle.
• Backlight life of 50,000 hours for long service.
• 24 VDC 30 % power input, 40 W consumption.
• CE, FCC Class B, UL, and other global certifications.

Specifications
