Imagine a machine that never stops, even in dusty factories or outdoor kiosks. The Advantech PPC-415W-PD5A 15.6-inch Full HD Intel Core i5 Fanless Industrial Panel PC is built for exactly that. It gives you a reliable computer that runs cool, stays quiet, and survives harsh environments. If you have been frustrated by overheating panels or frequent breakdowns, this unit removes those worries and lets you focus on getting work done.

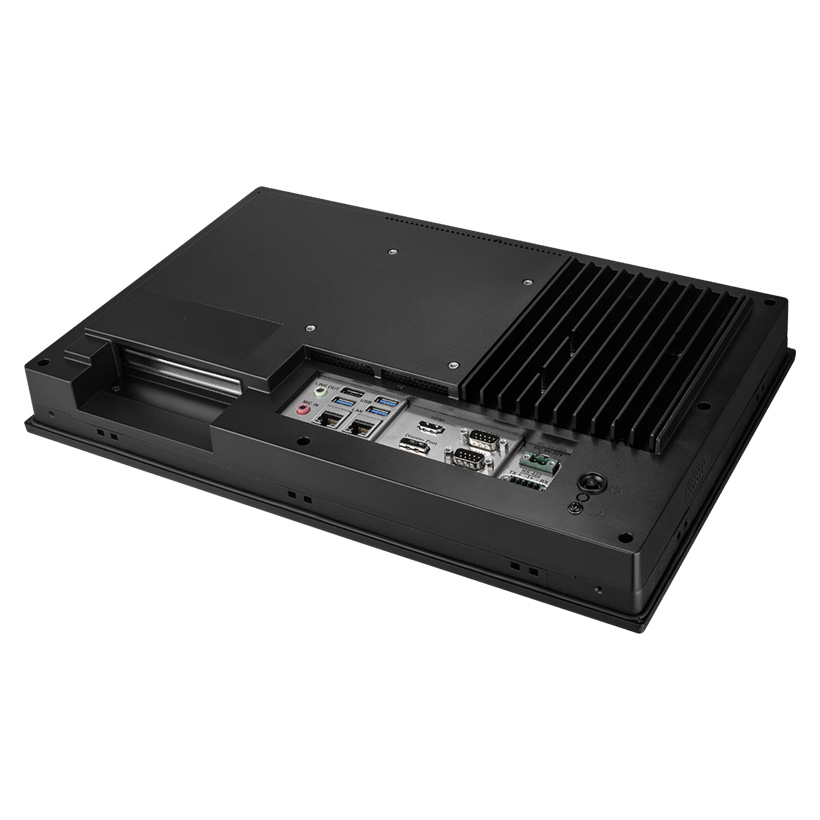

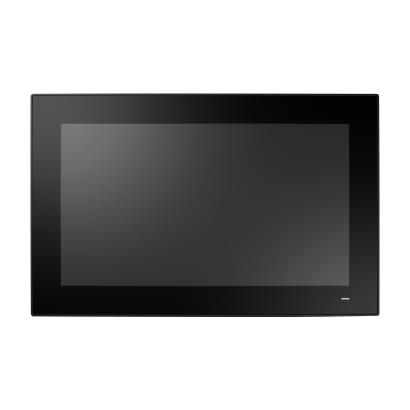

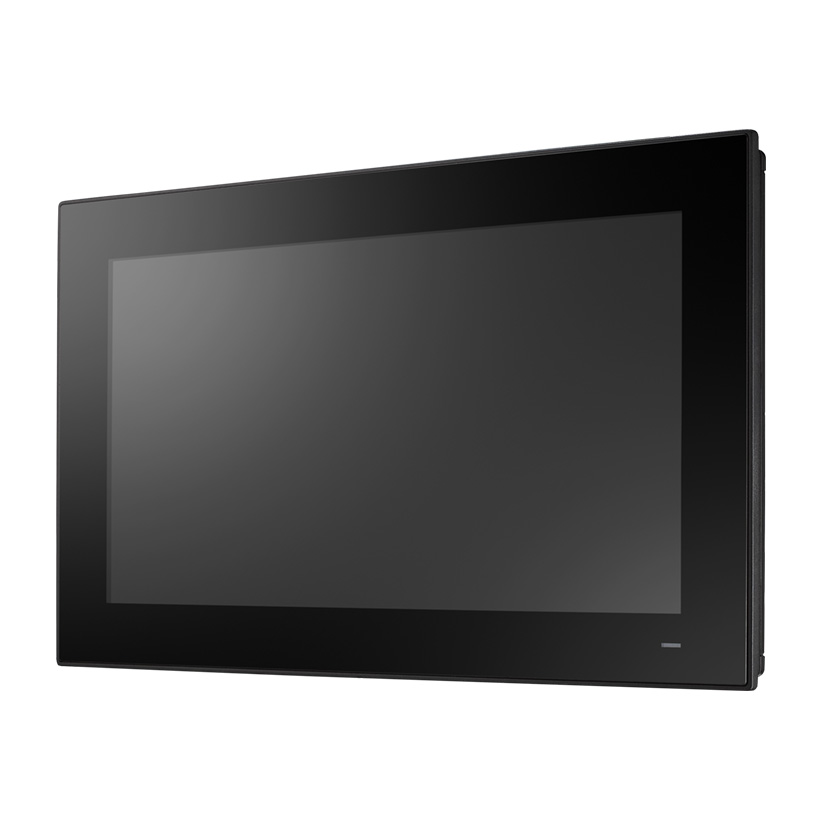

Advantech PPC-415W-PD5A 15.6-inch Full HD Intel Core i5 Fanless Industrial Panel PC
Industrial users need a computer that can handle vibration, extreme temperatures, and dirty air without slowing down. Those conditions can cause costly downtime and lost data. This panel PC solves the problem with a fanless design, rugged aluminum housing, and IP66 front-panel protection. The result is a steady, high-performance system that keeps your operations moving.
Key Features
- 15.6-inch Full HD PCAP touch display with 450 cd/m² brightness.
- 13th-gen Intel® Core™ i5-1345URE 1.4 GHz Deca-Core CPU.
- DDR5 4800 MHz memory support with two SO-DIMM slots.
- Dual 10/100/1000/2500 Mbps LAN and Intel i226-LM Ethernet controller.
- Three USB 3.2 Type-A ports, one USB 2.0, HDMI, and DisplayPort outputs.
- Two RS-232 and one RS-422/485 serial ports for legacy equipment.
- Watchdog timer from 1 to 255 seconds for added system safety.
- Power input 9-32 VDC, consumption 105 W @ 19 VDC, with 2-pin terminal block.
- Die-cast aluminum alloy enclosure with PC + ABS front, IP66 protection.
Specifications
| Model |
PPC-415W-PD7A |
| CPU |
13th Gen. Intel® Core™ i5-1345URE 1.40GHz Deca-Core |
| Memory |
2 x SO-DIMM Slot with DDR5 4800MHz |
| Storage |
1 x 2.5" SSD/HDD Bay, 1 x NVMe PCIe x 4/SATA M.2 slot (2242/2280 M-key) |
| LAN |
2 x 10/100/1000/2500 Mbps |
| Ethernet |
Intel® i226-LM |
| I/O |
2 x RS-232, 1 x RS-422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP |
| Expansion |
1 x M.2 E key 2230, 1 x PCIe x4 or 1 x PCI |
| Watchdog Timer |
1~255 s |
| Certification |
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI |
| OS Support |
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Power Input |
9~32 VDC |
| Power Consumption |
105 W @ 19 VDC |
| Serial Ports |
2 x RS-232, 1 x RS-422/485 |
| Audio |
Line-Out, Mic-In |
| Displays |
1 x HDMI, 1 x DP |
| Power Connector |
1 x 2-Pin Terminal Block |
| USB Vision Connector |
3 x USB 3.2 Type A, 1 x USB 2.0 Type A |
| Dimension (W x H x D) |
420 x 269 x 59 mm |
| Enclosure |
Die-cast aluminum alloy, PC + ABS |
| Mounting |
Stand, Wall, VESA, Panel |
| Weight (Net) |
5.4 kg (11.90 lb) |
| Relative Humidity |
95% RH (non-condensing) |
| Vibration Protection |
2 Grms, random |
| Operating Temperature |
-20~60 °C (-4~140 °F) |
| Storage Temperature |
-40~60°C (-40~140°F) |
| Shock Protection |
10 G, half sine |
| Ingress Protection |
Front Panel IP66 |
| Touch Type |
PCAP |
| Display Size |
15.6" |
| Max. Resolution |
1920 x 1080 |
| Viewing Angle (H/V°) |
178/178 |
| Luminance (cd/m2) |
450 |
| Backlight Life (hrs) |
50,000 |
