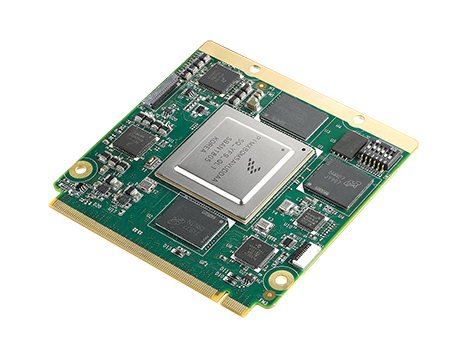

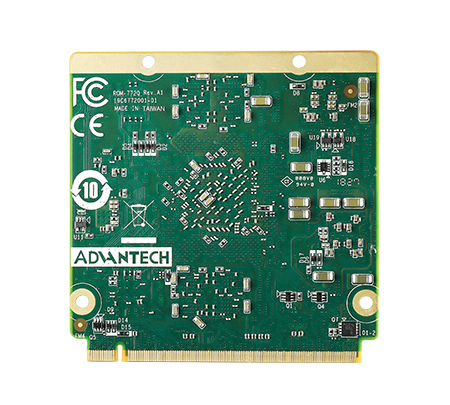

Advantech, ROM-7720 NXP ARM Cortex-A72 i.MX8 QuadMax 1.6GHz Computer-on-Module

When a single-board computer struggles to keep up with several high-resolution screens, heavy video streams or real-time data, the whole system feels sluggish and unreliable. The NXP i.MX8 QuadMax 8-Core Board is a compact, high-performance platform built to replace under-powered PCs or low-end boards in demanding industrial HMI, digital signage, edge-AI and automation projects. Its eight-core ARM Cortex-A72 processor, generous memory and extensive I/O give you the headroom you need for smooth multitasking and reliable operation.

NXP i.MX8 QuadMax 8-Core Board - powerful edge computing in a tiny footprint

Industrial environments often suffer from limited processing power, insufficient graphics capability and fragile connectivity. These shortcomings cause video stutter, dropped frames and delayed responses, which directly impact operator efficiency and system uptime. By integrating the NXP ARM Cortex-A72 i.MX8 QuadMax 1.6 GHz eight-core CPU, this board delivers the compute power required for high-definition graphics, fast video decoding and low-latency networking, ensuring your application runs smoothly even under heavy load.

Benefits

• Smooth multitasking - eight Cortex-A72 cores handle complex UI animations and simultaneous video streams without lag.
• Fast data access- 4 GB LPDDR4 1600 RAM provides quick memory bandwidth for responsive applications.
• Ample storage - 16 GB eMMC NAND flash for the operating system plus 64 MB Quad SPI flash for the boot loader give instant boot times and secure log storage.
• High-resolution output- dual LVDS channels support 1366 × 768 on a single link or 1920 × 1080 on dual links, while a HDMI 2.0 port drives up to 4096 × 2160 @ 60 Hz for crisp visuals.
• Robust connectivity- integrated Gigabit Ethernet (10/100/1000 Mbps) and a CAN interface provide reliable, low-latency communication for industrial protocols.

Usages

The board fits naturally into a range of practical scenarios. It powers industrial human-machine interfaces that require dual-screen LVDS or HDMI output, delivering clear, responsive displays for operators on factory floors. Digital signage and video-wall installations benefit from its 4K @ 60 Hz playback capability, ensuring eye-catching content runs flawlessly. Edge-AI devices can run multiple neural networks concurrently, thanks to the ample CPU cores and dedicated video codecs. Robotics and automation controllers rely on its fast Ethernet and CAN bus to exchange data with sensors and actuators in real time.

Key Features

• NXP ARM Cortex-A72 i.MX8 QuadMax 1.6 GHz eight-core processor - delivers high-performance computing for demanding workloads.
• 4 GB LPDDR4 1600 on-board memory - provides fast, energy-efficient RAM for smooth multitasking.
• 16 GB eMMC NAND flash + 64 MB Quad SPI flash - offers ample, reliable storage for the OS, applications and boot loader.
• Dual 24-bit LVDS outputs - support 1366 × 768 (single) or 1920 × 1080 (dual) display configurations.
• HDMI 2.0 (single port) - enables ultra-high-definition output up to 4096 × 2160 @ 60 Hz.
• Vivante GC7000XS/VX graphics engine - ensures smooth rendering and hardware-accelerated video playback.
• Gigabit Ethernet (10/100/1000 Mbps) with integrated RGMII - provides reliable network connectivity for industrial applications.
• 3 × USB 3.0 ports and 1 × USB OTG - allow fast peripheral access and data transfer.
• 2 × PCIe, 1 × SATA III, 1 × CAN, 8 × GPIO, 3 × UART (including 2 for Cortex-M4) - extensive I/O for custom expansions and sensor integration.
• Power supply 5 V, 13 W consumption - efficient operation within typical industrial power budgets.

Designed to operate from -40 °C to 60 °C and tolerate 5 %-95 % non-condensing humidity, the board meets CE/FCC Class B certifications, making it ready for harsh industrial settings. Its compact 70 mm × 70 mm form factor fits easily into enclosures, while the rich feature set lets you deliver high-quality, reliable solutions without compromise.
