Are you tired of using outdated servers that are slowing down your business? Do you need a reliable and powerful server that can handle all your edge computing needs? Look no further than the Advantech SKY-8132SAS-A000E 1U 20.4 Edge Rackmount Server. This server is designed to provide high-performance computing and storage for edge applications, making it perfect for businesses that need to process large amounts of data in real-time. With its advanced features and reliable design, this server is the perfect solution for businesses that need to stay ahead of the curve.

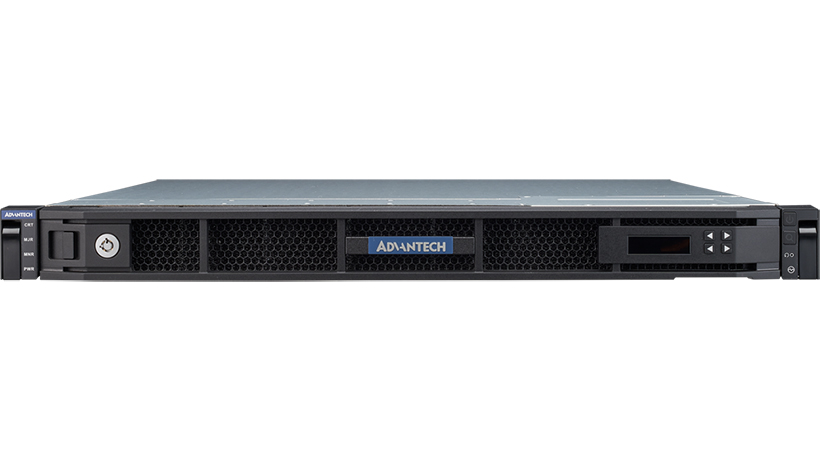

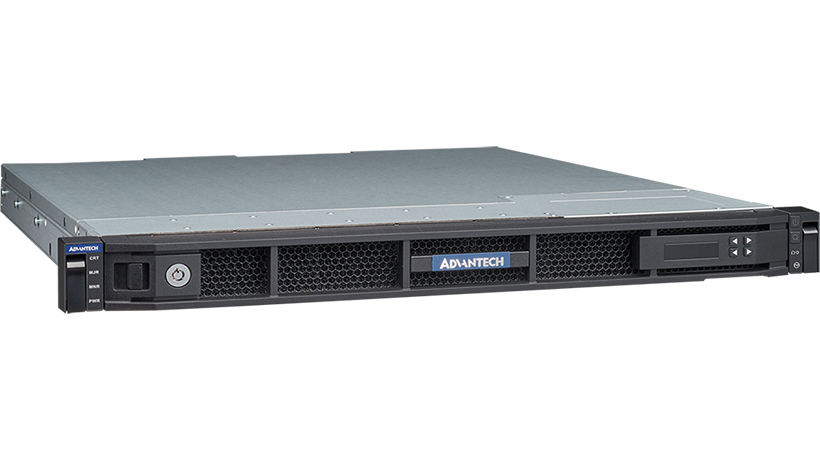

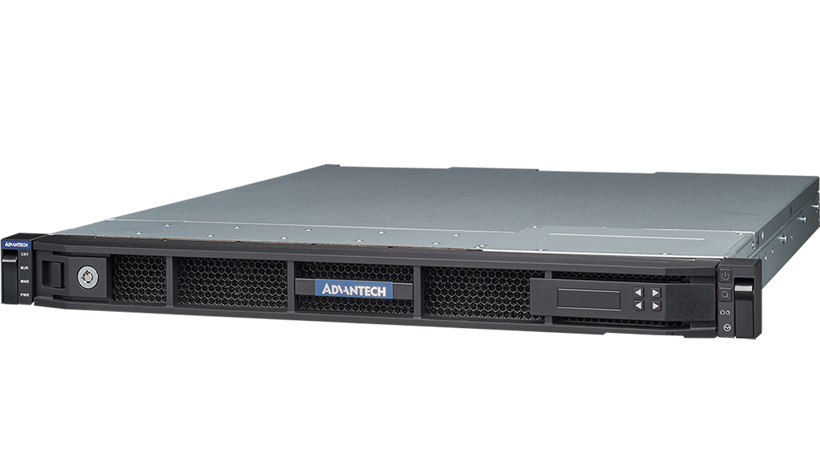

Advantech SKY-8132SAS-A000E 1U 20.4 Edge Rackmount Server
The Advantech SKY-8132SAS-A000E 1U 20.4 Edge Rackmount Server solves the problem of outdated and unreliable servers that can't handle the demands of edge computing. This problem matters to users because it can cause downtime, data loss, and decreased productivity. The Advantech SKY-8132SAS-A000E 1U 20.4 Edge Rackmount Server provides a clear solution by offering high-performance computing and storage, advanced security features, and a reliable design. With this server, businesses can process large amounts of data in real-time, stay ahead of the curve, and stay competitive in their industry.
Key Features
- Single socket 3rd Generation Intel Xeon Scalable Processor up to 185W TDP
- Up to 8x 3200MHz DDR4 ECC RDIMM/LRDIMM
- 2x rear PCIe x16 (FH/FL), plus 2x rear PCIe x16 (FH/HL) or 2x rear PCIe x8 expansion slots(LP) for Advantech Personalization card
- Up to 4x hot-swap SFF SATA3/NVMe U.2(optional)
- 2x M.2 2280 (SATA3/PCIe)
- 700W AC/DC Redundant PSU 100-240Vac, 50-60Hz
- IPMI2.0 and Redfish API
- Aspeed AST2500 BMC with Advantech System Management Solution
Specifications
| Processor System |
|
| CPU |
Single socket 3rd Generation Intel® Xeon® Scalable Processor up to 185W TDP |
| Chipset |
Intel® PCH C62xA series |
| Memory |
|
| Technology |
Up to 8x 3200MHz DDR4 ECC RDIMM/LRDIMM |
| Max Capacity |
Max capacity per channel: 64GBMax total capacity per system: 512GB |
| Socket |
8 x 288-pin DIMM |
| PCIe Expansion slot |
|
| PCIe Expansion slot |
2x rear PCIe x16 (FH/FL), plus 2x rear PCIe x16 (FH/HL) or 2x rear PCIe x8 expansion slots(LP) for Advantech Personalization card |
| I/O |
|
| Front I/O |
2 x USB, PWR, Status and ALARM LEDs |
| Rear I/O |

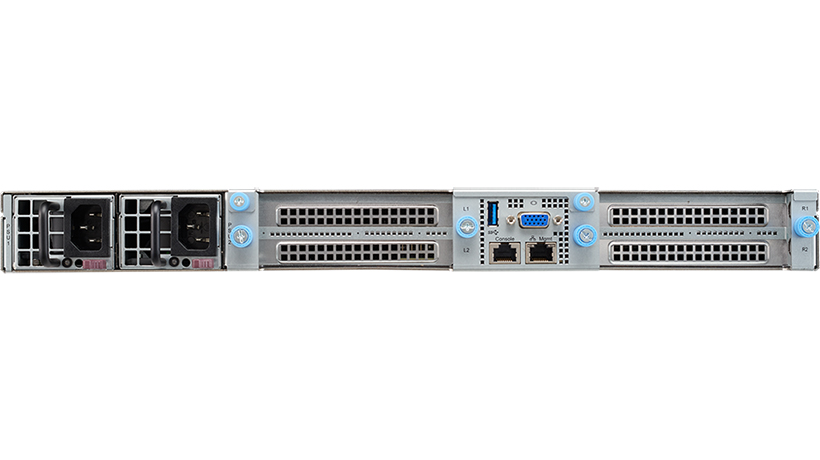

1 x GbE LAN RJ45(Management port), 1 x VGA, 1 x USB3.0, 1 x Console port |
| Ethernet |
|
| Management Interface |
NC-SI(BMC to i210-IS) |
| 10/25GbE Ethernet |
Via Add-on PCIe card |
| Controller |
GbE LAN: Intel i210-AT support |
| Connector |
1 x RJ45 |
| Storage |
|
| Front Access |
Up to 4x hot-swap SFF SATA3/NVMe U.2(optional) |
| Internal (on-board) |
2x M.2 2280 (SATA3/PCIe) |
| Power Input |
|
| Power Input |
700W AC/DC Redundant PSU 100-240Vac, 50-60Hz |
| Environment |
|
| Operating Temperature |
-5 ~ 55°C (23 ~ 131°F) |
| Non-operating Temperature |
-40 ~ 70°C (-40 ~ 158°F) |
| Operating Humidity |
50% @25°C to 95%@40°C (non condensing) |
| Non-operating Humidity |
95% @60°C (non-condensing) |
| Cooling |
|
| Chassis Fan |
5 x high speed fans |
| Thermal Control |
Two separate thermal zones for motherboard and Full Length (FL) PCIe cards |
| Reliability |
Resilient to single fan failure |
| Air Filter |
Yes (Optional) |
| System Management |
|
| System Management |
IPMI2.0 and Redfish API |
| BMC |
Aspeed AST2500 BMC with Advantech System Management Solution |
| Advanced Lights Out Management |
Compliant to IPMI2.0 with security and availability enhancements |
| iKVM Support |
Advantech Web GUI Style Node Manager |
| NIC support |
Configurable shared or dedicated NIC support |
| Physical |
|
| Dimensions (W x D x H) |
438 x 517.2 x 43.5 mm (17.2 x 20.4" x 1.74") |
| Net Weight |
~15kg |
