Are you tired of using slow and outdated servers that are holding back your business? Do you need a powerful and reliable solution to handle your growing workload? Look no further than the Advantech SKY-8136S, Intel Xeon 6, 1U High Performance Edge Server. This powerful server is designed to provide high-performance computing and storage capabilities, making it perfect for businesses that need to process large amounts of data quickly and efficiently. With its advanced features and reliable design, the Advantech SKY-8136S is the perfect solution for businesses that need a fast and reliable server.

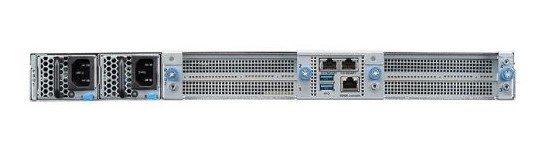

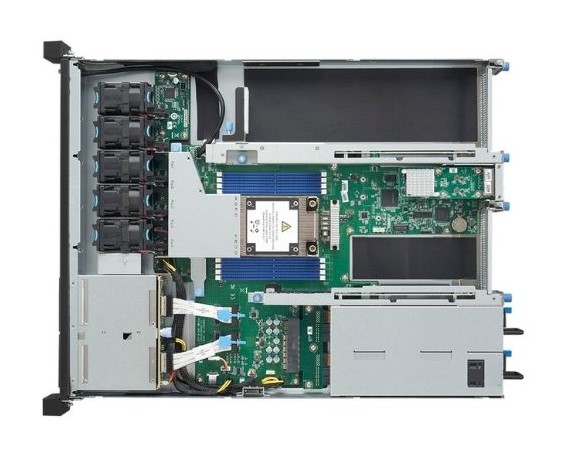

Advantech SKY-8136S, Intel Xeon 6, 1U High Performance Edge Server
The Advantech SKY-8136S solves the problem of slow and outdated servers by providing a powerful and reliable solution for businesses. This problem matters to users because it can hold back their business and prevent them from processing large amounts of data quickly and efficiently. The Advantech SKY-8136S gives a clear solution by providing high-performance computing and storage capabilities, making it perfect for businesses that need to process large amounts of data quickly and efficiently. With its advanced features and reliable design, the Advantech SKY-8136S is the perfect solution for businesses that need a fast and reliable server.
Key Features
- Intel Xeon 6 processor for high-performance computing
- Up to 48 cores per socket for efficient data processing
- Up to 1TB of DDR5 6400MHz RDIMM memory for large data sets
- Up to 4 x hot-swap SFF NVMe (PCIe Gen5 x4) SSDs for fast storage
- 2 x 10GbE RJ-45 network interfaces for fast networking
- 1 x USB3.2 Gen1 and 2 x USB 3.2 Gen1 ports for easy connectivity
- 1 x D-Sub (Front) video port for easy monitoring
- 1 x Serial console port (RJ-45) for easy management
- AST2600 BMC with iKVM, WebUI and Redfish support for easy management
- Supported OS includes Linux (CentOS, Red Hat, Ubuntu) and Windows server
Specifications
| Product |
|
| System model |
SKY-8136S |
| Processor |
|
| Family |
Intel® Xeon® 6 processors |
| Number |
1 |
| Cores |
Up to 48 cores per socket |
| Cache |
L3 Cache (up to 288MB/CPU) |
| Speed |
Up to 4GHz |
| Max TDP |
250W |
| Memory |
|
| Type |
DDR5 6400MHz RDIMM |
| Slots |
8 |
| Capacity |
Up to 128GB RDIMM/slot |
| Total |
Up to 1TB |
| Storage |
|
| 2.5" HDD/SSD |
Up to 4 x hot-swap SFF NVMe (PCIe Gen5 x4) SSDs |
| M.2 SSD |
Up to 2 (M.2 2280 NVMe SSDs) |
| Expansion Slots |
|
| Expansion Slots |
2 x FHFL PCIe 5.0 x16 slots, and 1x FHHL PCIe 5.0 x16 + 1x LP PCIe 5.0 x8 slots |
| I/O & Ports |
|
| Network Interfaces |
2 x 10GbE RJ-45 |
| USB |
Front: 1 x USB3.2 Gen1Rear: 2 x USB 3.2 Gen1 |
| Video |
D-Sub (Front) |
| Others |
1 Serial console port (RJ-45) |
| LED Indicator |
|
| Power status |
1 |
| System status |
1 |
| HD activity |
1 |
| Network activity |
1 |
| System UID |
1 |
| Power Supplies |
|
| Type |
1+1 red. AC (SlimType PSUs 800W (220 mm L)) |
| Power Rating |
800W red. AC PSU |
| System Cooling |
|
| System Cooling |
5 x modules (vertical access, hotswappable and N+1 redundant) |
| Mechanical |
|
| Form Factor |
1U |
| Dimensions (W x H x D) mm |
438 x 43.5 x 568.1 mm (17.2" x 1.71" x 22.37") |
| Weight (kg) |
15 kg |
| System Management |
|
| System Management |
AST2600 BMC with iKVM, WebUI and Redfish support |
| Supported OS |
|
| Supported OS |
Linux (CentOS, Red Hat, Ubuntu), Windows server |
| Environment |
|
| Humidity Operational (non-condensing) |
5% to 95% |
| Operational Temperature |
0 ~ 40°C (32 ~ 104°F) |
| Storage Temperature |
-40 ~ 70°C (-40~158°F) |
| Certification |
|
| Certification |
CE/FCC/CB/UL |
