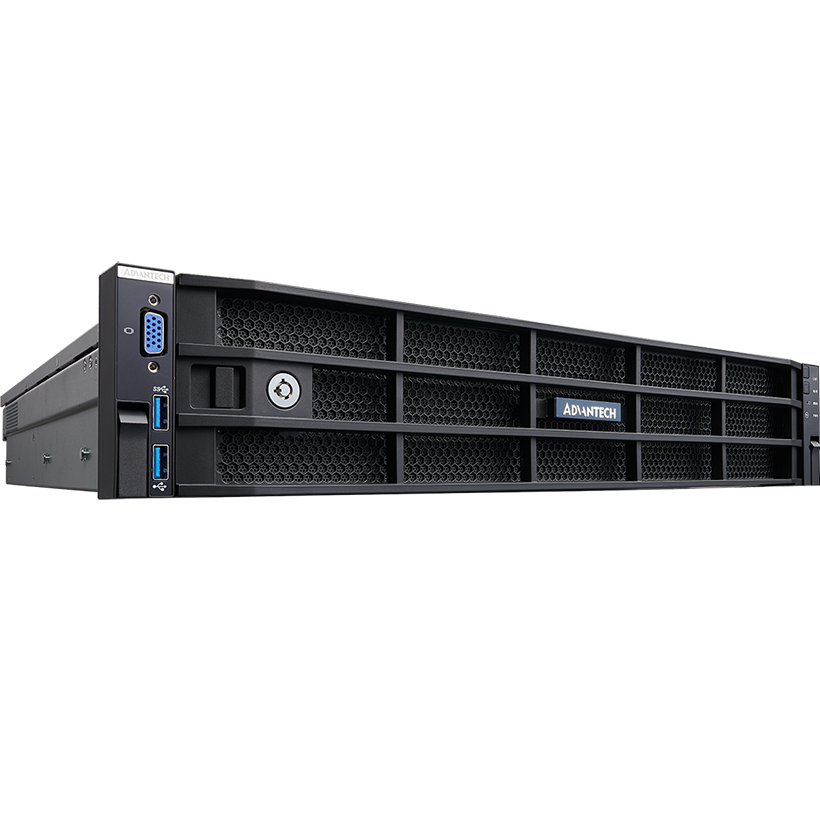

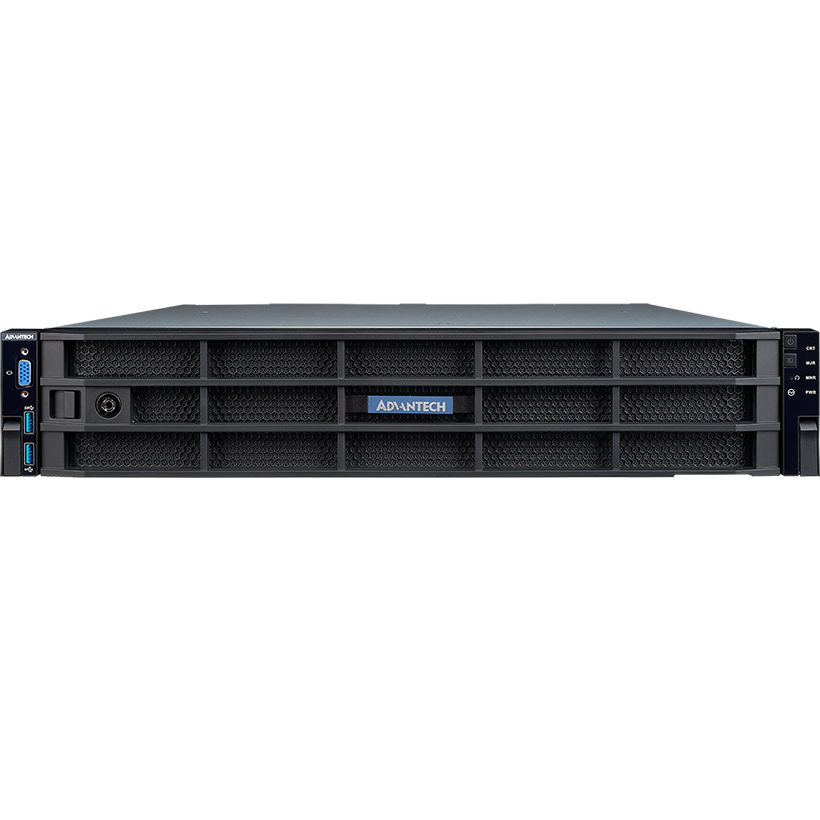

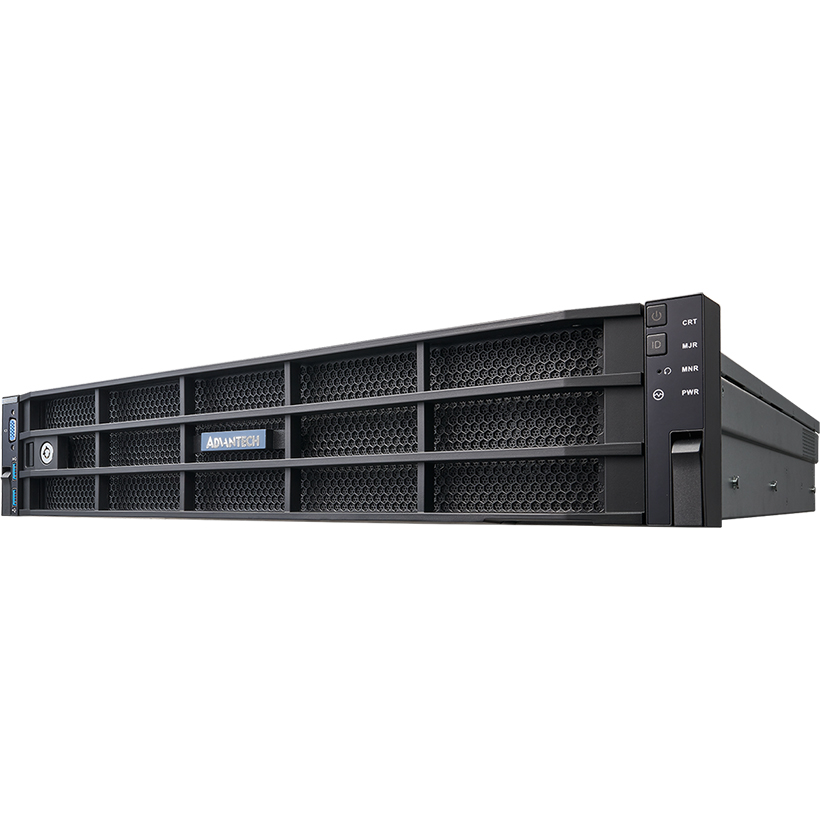

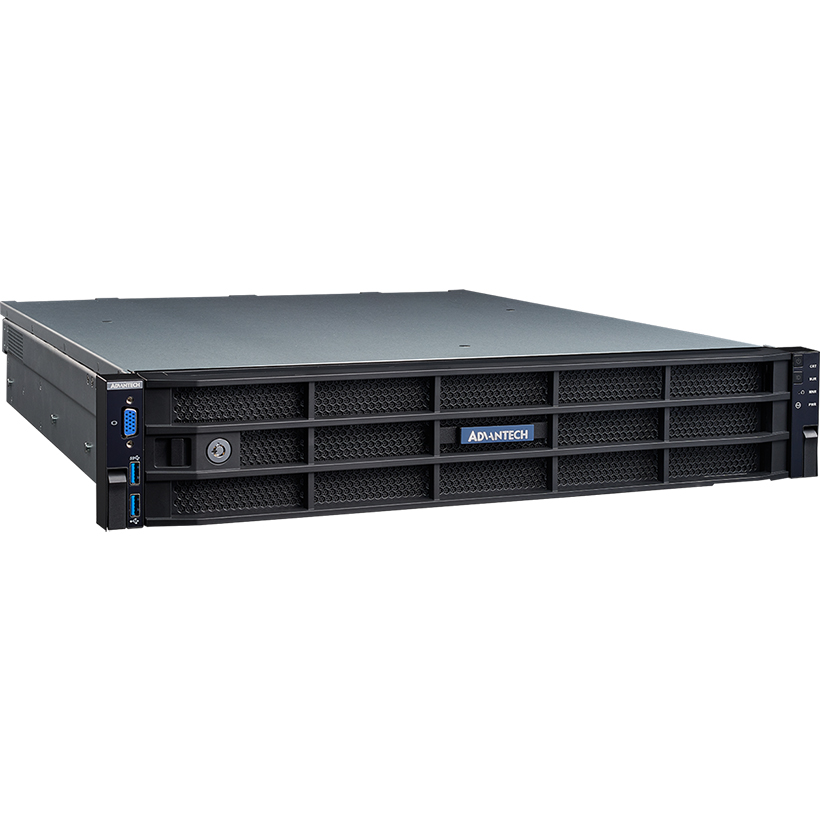

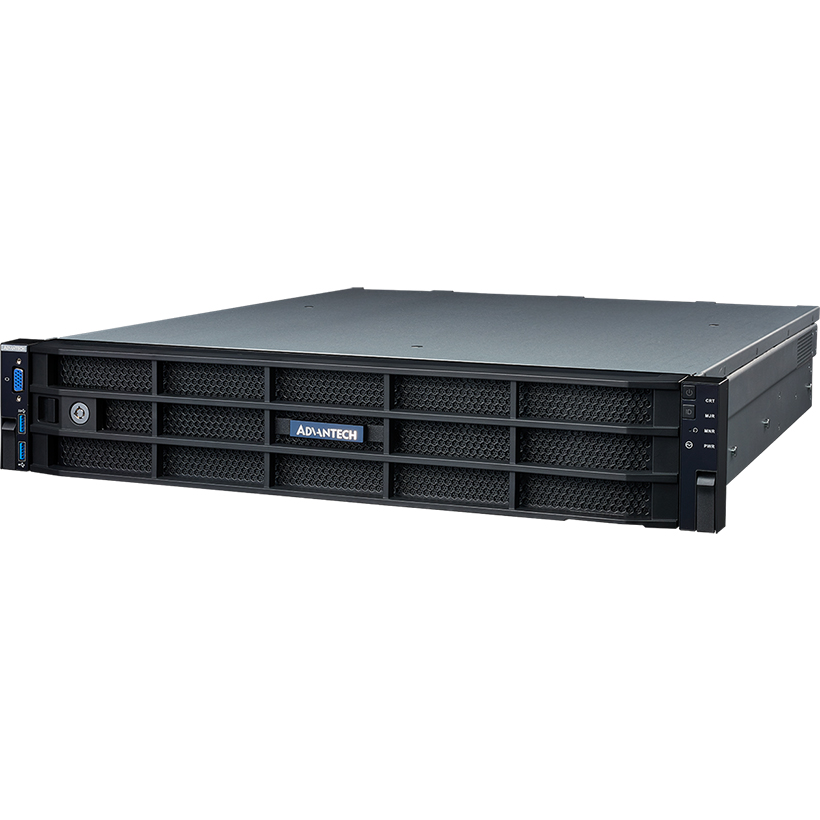

Advantech SKY-8232DV2, Dual Socket 2U Edge Rackmount Server
The Advantech SKY-8232DV2 is a dual-socket 2U edge rackmount server designed for high-performance computing, networking, and edge infrastructure applications. It supports 3rd Generation Intel Xeon Scalable Processors with up to 185W TDP per CPU, providing a powerful platform for demanding server workloads.
The system supports up to 32 DDR4 ECC RDIMM or LRDIMM modules running at 3200MHz. It provides up to 64GB per memory channel and a maximum total system memory capacity of 2048GB, making it suitable for memory-intensive applications.
For expansion, the SKY-8232DV2 provides multiple PCIe 4.0 slots in different configurations, including FH/FL and LP options. It also includes an OCP 3.0 PCIe 4.0 x16 module slot for flexible network and expansion options.
Storage connectivity includes internal 2.5-inch SATA SSD bays, rear internal 2.5-inch SATA/PCIe SSD support, and two onboard M.2 2280 SATA slots. Networking is provided by Intel i210-AT Gigabit Ethernet controllers, with three RJ45 connectors and a dedicated management interface.
The server uses a 1200W AC CRPS power module and features six high-speed fans with N+1 redundancy. Its IPMI 2.0-based management system includes an Aspeed AST2500 BMC, Redfish API, iKVM, Node Manager, and Advantech Web GUI support for remote system management.
Key Features
-
Dual-socket 3rd Generation Intel Xeon Scalable processor support
-
Up to 32 x 3200MHz DDR4 ECC RDIMM/LRDIMM
-
Up to 2048GB total system memory
-
Multiple PCIe 4.0 expansion slots
-
2U edge rackmount form factor
-
Internal 2.5-inch SATA/PCIe SSD support
-
Dual M.2 2280 SATA slots
-
1200W AC CRPS power module
-
N+1 redundant cooling with six high-speed fans
Specifications
| Processor System |
|
| CPU |
Dual socket 3rd Generation Intel® Xeon® Scalable Processor up to 185W TDP |
| Chipset |
Intel® PCH C62xA series |
| Memory |
|
| Technology |
Up to 32x 3200MHz DDR4 ECC RDIMM/LRDIMM |
| Max Capacity per Channel |
64GB |
| Max Total Capacity per System |
2048GB |
| Socket |
288-pin DIMM |
| PCIe Expansion |
|
| Slot Configuration 1 |
4x FH/FL PCIe 4.0 x16 + 2x LP PCIe 4.0 x8 |
| Slot Configuration 2 |
2x FH/FL PCIe 4.0 x16 + 2x FH/FL PCIe 4.0 x8 + 2x FH/HL PCIe 4.0 x8 + 2x LP PCIe 4.0 x8 |
| I/O |
|
| Front I/O |
1x USB3.0 (Upper port), 1x USB2.0 (lower port), VGA port, PWR, Status, ALARM LEDs |

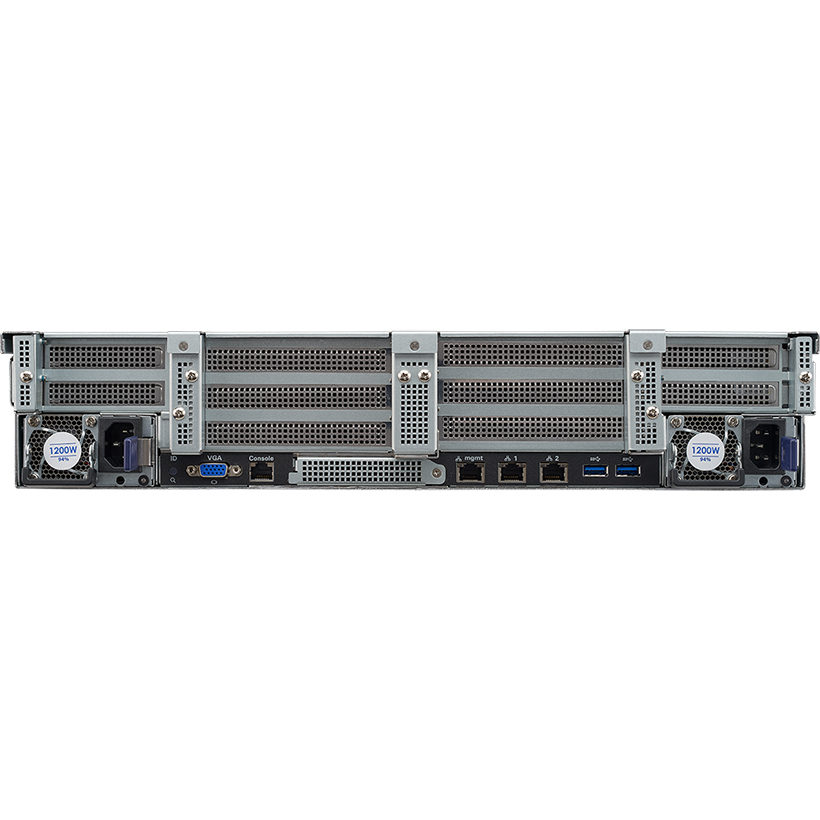

| Rear I/O |
2 x GbE LAN RJ45, 1 x Management port, 1 x VGA, 2 x USB3.0, 1 x Console port |
| OCP Module Slot |
1 x OCP3.0 (PCIe 4.0 x16) |
| Ethernet |
|
| Management Interface |
10/100/1000 Mbps |
| Controller |
GbE LAN: Intel i210-AT support |
| Connector |
3 x RJ45 |
| Storage |
|
| Internal |
2 x 2.5" SATA SSD |
| Rear (Internal) |
2 x 2.5" SATA/PCIe SSD |
| On-board |
2 x M.2 2280 SATA |
| Power |
|
| Power Input |
1200W AC CRPS module |
| Input Voltage |
100 ~ 240VAC |
| Current |
12~7A |
| Frequency |
50~60Hz |
| Environment |
|
| Operating Temperature |
-5 ~ 55 °C (23 ~ 131 °F) |
| Non-operating Temperature |
-40 ~ 70 °C (-40 ~ 158 °F) |
| Operating Humidity |
50% @25°C to 95%@40 °C (non condensing) |
| Non-operating Humidity |
95% @60 °C (non-condensing) |
| Cooling |
|

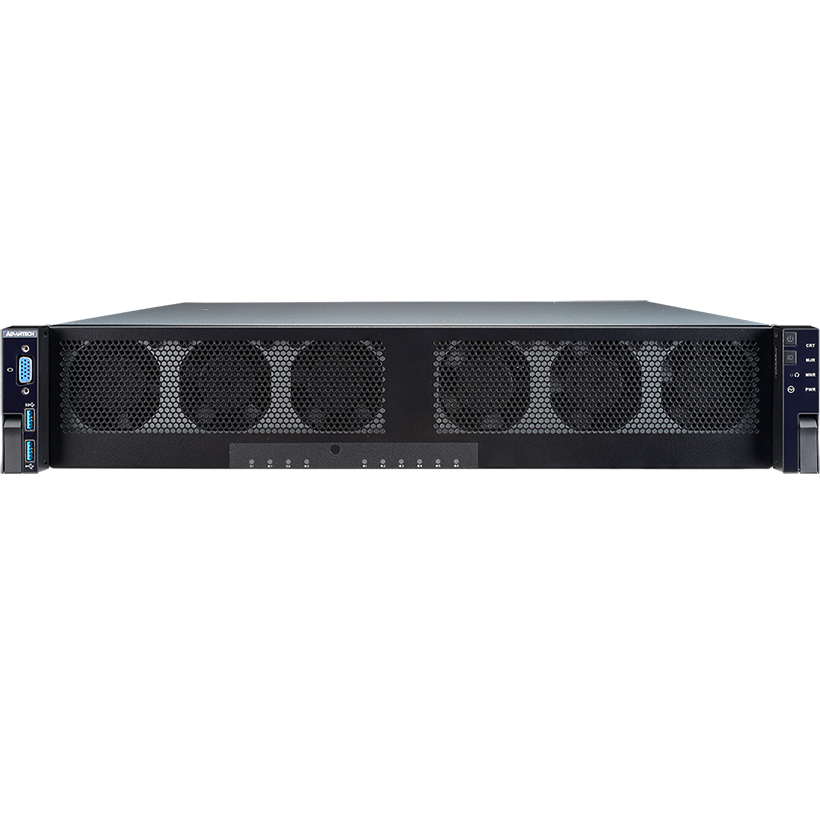

| Chassis Fan |
6 x 6056 high speed fans (N+1 redundant) |
| Thermal Control |
Two separate thermal zones for motherboard and Full Length (FL) PCIe cards |
| Reliability |
Resilient to single fan failure |
| Air Filter |
Yes (Optional) |
| System Management |
|
| Management System |
IPMI |
| BMC |
Aspeed AST2500 BMC with Advantech System Management Solution |
| Remote Management |
Advanced Lights Out Management compliant to IPMI2.0 with security and availability enhancements |
| Redfish |
Redfish API support |
| Remote Console |
iKVM |
| Node Manager |
Support |
| Web Management |
Advantech Web GUI style |
| NIC Configuration |
Configurable shared or dedicated NIC support |
| Physical |
|
| Dimensions (W x D x H) |
438 x 526 x 87 mm (17.24" x 20.7" x 3.48") |
| Weight (N.W) |
~18kg |
