Imagine a fleet where every driver stays alert, follows safety rules, and never puts a passenger at risk. The Advantech TREK-152-D001A0E, Driver Behavior Recognition AI Camera Module watches the drivers face and actions, and it sends an instant warning when it sees fatigue, distraction, or a missing mask. Companies lose money and reputation when accidents happen, and they need a reliable way to stop the problem before it starts.

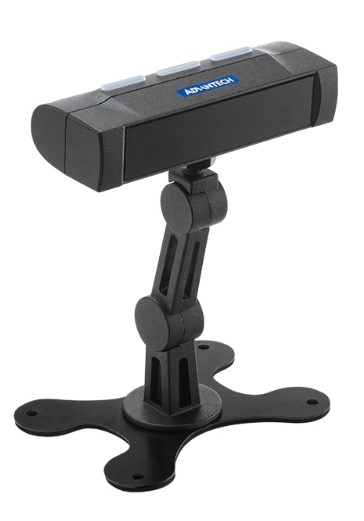

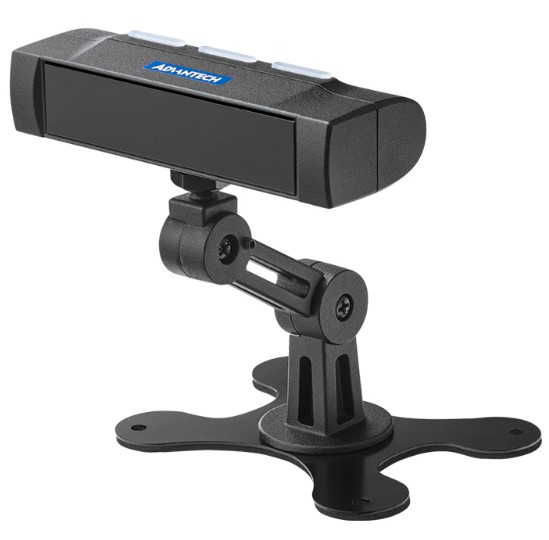

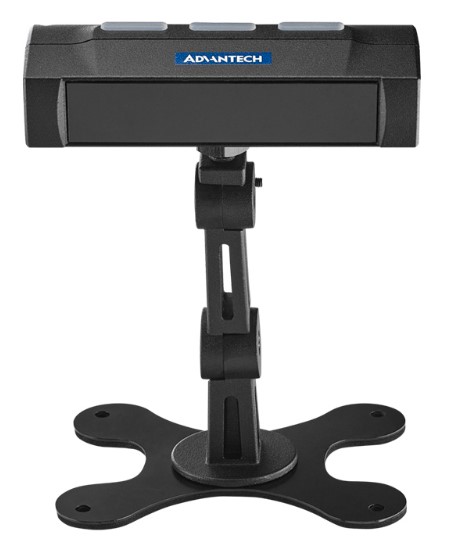

Advantech TREK-152-D001A0E, Driver Behavior Recognition AI Camera Module
Drivers can become drowsy or look away from the road without anyone noticing. This creates dangerous situations that cost lives and money. The module solves the issue by using AI to analyze video in real time, detecting closed eyes, yawning, phone use, and even whether a mask is worn. When a risk is found, it alerts the vehicle system so corrective action can be taken immediately.
Key Features
- Intelligent video analysis for driver behavior.
- Mask-wearing detection that does not affect performance.
- Fatigue detection with eye-closure and yawning alerts.
- Distraction detection for gaze shift, phone use, eating, smoking, and driver absence.
- Anti-glare IR LED for low-light and reflective environments.
- CMOS monochrome sensor, global shutter, 1 MP, 45 horizontal FoV.
- 12 V/24 V vehicle power input, 8.4 W typical consumption.
- RS-232, video out (RCA) and VCC/ACC/GND interfaces.
- Compact size 102 x 22 x 38 mm, lightweight 294 g with mount.
Specifications
|
Intelligent Video Analysis
|
|
| Mask Wearing Detection |
Whether the driver is wearing a face mask |
| Driver Fatigue Detection |
Alerts for drowsiness (eyes closed longer than threshold time), yawning |
| Mask Wearing Performance |
Mask wearing does not impact detection performance |
| Distraction Detection |
Alerts for lack of attention (gaze moves/head turns more than 30° left or right), cellphone use,
eating/smoking, driver absence
|
| Detection Conditions |
Distance between driver’s face and camera lens: 60 ~ 120 cm / 23.6 ~ 47.2 inch |
| |
Anti-glare IR LED |
| |
Suitable for low-light environments, reflected ambient light, and drivers wearing coated glasses |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, monochrome, global shutter, active pixel array 1280H × 800V, 1.0 MP, 45° FoV (horizontal) |
| I/O |
1 x 2-wire RS-232, 1 x video out (RCA, male), 1 x VCC/ACC/GND |
| Power Input |
12/24 V vehicle power (10 ~ 36 VDC and ISO-7637-II compliant) |
| Power Consumption |
8.4 W (typical), including with camera module and ECU box |
| Environmental |
|
| Operating Temperature |
-30 ~ 85 °C / -22 ~ 185 °F |
| Storage Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Shock / Vibration |
EN60721 (5M3) |
| Mechanical |
|
| Dimensions (W × H × D) |

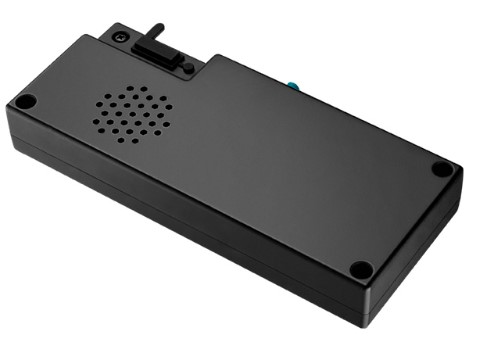

ECU box: 200.5 × 31 × 86.5 mm / 7.89 × 1.22 × 3.4 in |
| |
Camera module (w/o mount): 102 × 22 × 38 mm / 4 × 0.86 × 1.49 in |
| |
Camera bracket: 110 mm / 4.33 in (H), 80 × 60 mount holes |
| Weight |
ECU box: 440 g / 0.97 lb |
| |
Camera module (with mount): 294 g / 0.64 lb |
