Tired of missing a vehicle that appears in your rear blind spot? The Advantech TREK-154-BA01A0E Rear AI Blind Spot Detection Module NTSC RS-485 watches the area behind your vehicle and warns you before a collision. It uses AI to spot people, cyclists and cars that are hard to see. If you drive a bus, truck or delivery van, this module can keep you and your cargo safe.

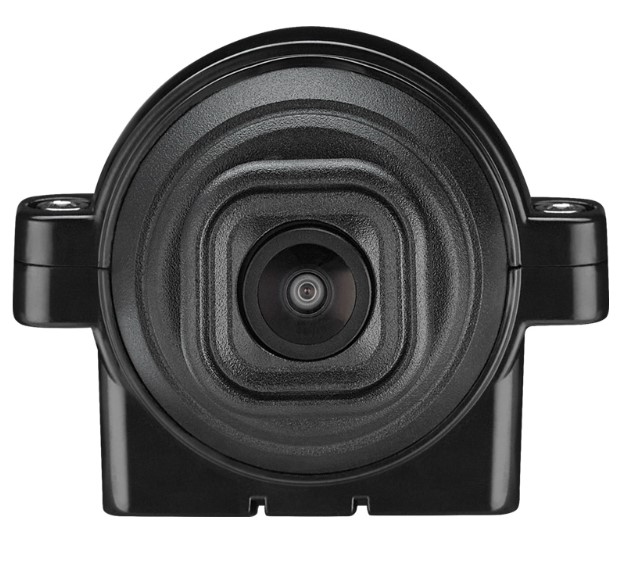

Advantech TREK-154-BA01A0E Rear AI Blind Spot Detection Module NTSC RS-485
Drivers often cannot see fast-moving objects that enter the rear blind spot, especially in busy streets or tight loading zones. Missing those objects can cause costly accidents and downtime. This module solves the problem by using machine-learning object detection to recognize vehicles, bicycles and vulnerable road users in a 180 field of view. The system sends an alert through RS-485, giving you enough time to react and avoid a crash.
Key Features
- CMOS sensor with 1280 x 960 resolution (720p viewing).
- 180deg horizontal field of view for wide rear coverage.
- Machine-learning detection of VRUs and vehicles.
- Video output via RCA connector.
- Cascading RS-485 ports for multiple module networks.
- Power input 10 ~ 36 VDC, consumption under 4 W.
- IP69K rating protects against water jets and dust.
- FCC and CE certified for global use.
- Compact size 50 x 44.7 mm, weight 132 g for the camera.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-BA01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Blind Spot Detection Module |
| Installation Position |
Rear |
| Application |
Rear Blind Spot Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
