Imagine a vehicle that can see whats hidden in its own blind spot and warn you before a collision. The Advantech TREK-154-FA01A0E Front AI Blind Spot Detection Module with NTSC RS-485 does exactly that. It is a compact camera that uses AI to spot pedestrians, cyclists and other vehicles that appear in the front blind spot. If you have ever worried about a hidden obstacle while driving, this module gives you the confidence to avoid accidents.

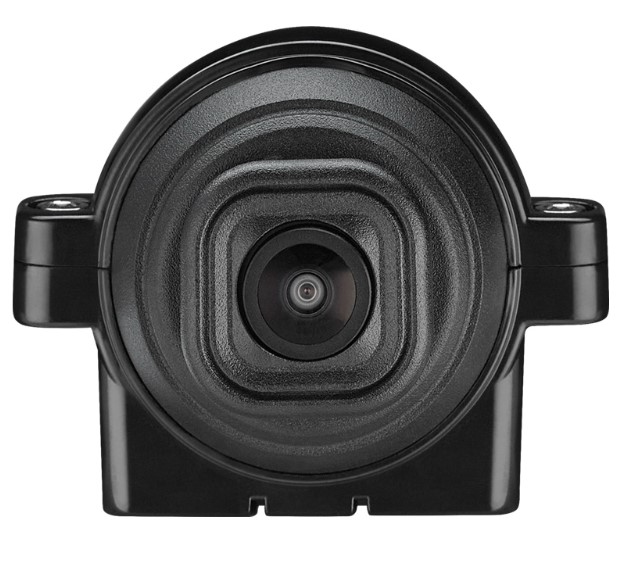

Advantech TREK-154-FA01A0E Front AI Blind Spot Detection Module with NTSC RS-485
Drivers often miss objects that are just out of view, especially in busy city traffic or at night. Missing these objects can lead to sudden braking, loss of control, or even a crash. This module solves the problem by constantly scanning a 180-degree field of view and using machine-learning object detection to alert the driver in real time. The result is a safer ride, smoother traffic flow, and less stress for anyone behind the wheel.
Key Features
- CMOS sensor with 1280 x 960 resolution for clear images.
- 180deg horizontal field of view and 170deg vertical coverage.
- Machine-learning object detection for VRUs and vehicles.
- NTSC video output via RCA connector for easy integration.
- RS-485 cascade ports allow multiple modules on one bus.
- Power input range 10 ~ 36 VDC to match most vehicle systems.
- IP69K enclosure protects against high-pressure water and dust.
- Lightweight design: camera 132 g, bracket 88 g for simple mounting.
- FCC and CE certified for global compliance.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-FA01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Blind Spot Detection Module |
| Installation Position |
Front |
| Application |
Front Blind Spot Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
